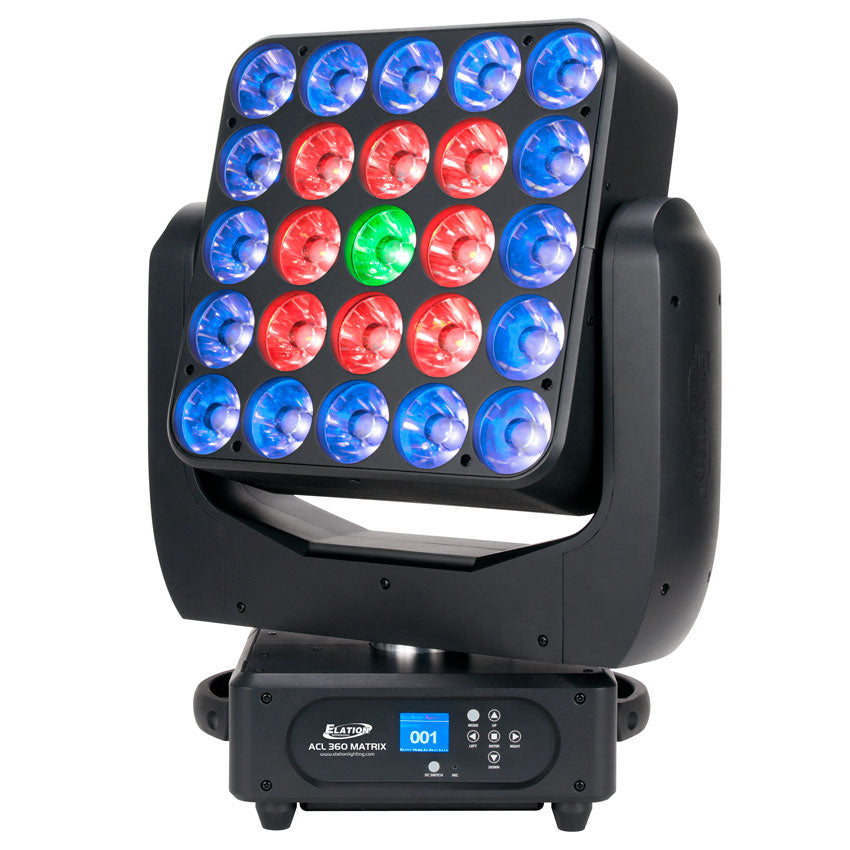

ACL 360 MATRIX

Features

* * * SPECIAL ORDER ITEM * * *
Versatile 14° Moving Head Effect Luminaire
New Advanced Collimator Lens
(25) Pixel Control RGBW 4-in1 LEDs
Laser-Like Homogenized 4° Color Changing Beams
Fast and Precise 16-Bit Continuous 360° Pan/Tilt Rotation
Strobe and Selectable Dimming Curve Effects
DMX, RDM, KlingNET™ and Art-NET (DMX Over Ethernet) Support
Flicker Free Operation for Broadcast TV and FILM

Resources

Specification information

Guides/ Manuals

PHOTOMETRIC DATA

DMX/ RDM Traits

Drawings

CAD File

CAD File

Related Categories

Specifications

SOURCE
(25) 15W RGBW 4-in-1 LEDs
100,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA (14° Full ON)
77,344 LUX 7,185 FC @3.3’ (1m)
70,370 LUX 6,537 FC @6.6’ (2m)
54,413 LUX 5,055 FC @9.8’ (3m)
40,505 LUX 3,763 FC @13.1’ (4m)
29,722 LUX 2,761 FC @16.4’ (5m)

EFFECTS
Individual Pixel Control
Strobe and Selectable Dimming Curves

COLOR
RGBW

CONTROL / CONNECTIONS
(3) DMX Channel Modes (17 / 19 / 115)
RDM (Remote Device Management)
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement

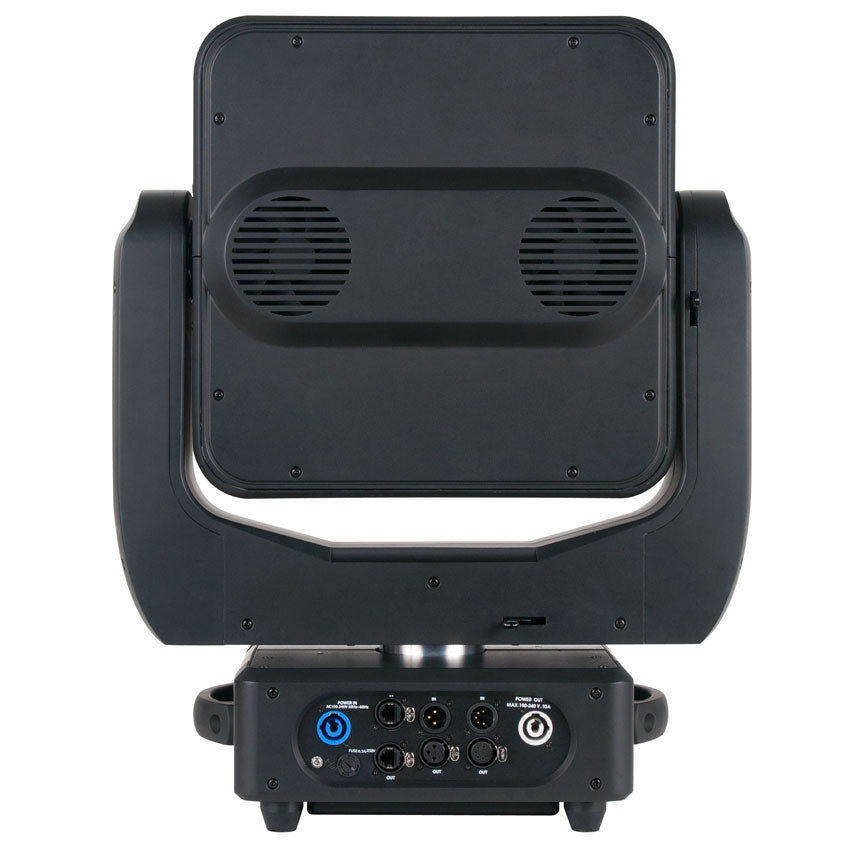

3pin/5pin DMX In/Out
RJ45 Ethernet In/Out (Art-NET)
Locking Power Cable In/Out
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 19.0” (481mm)
Width: 13.8” (350mm)
Vertical Height: 23.0” (583mm)
Weight: 42.0 lbs. (19 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
425W Max Power Consumption
5F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS
CE | cETLus | IP30




Specifications and documentation subject to chance without notice.
