ACL BAR

Features

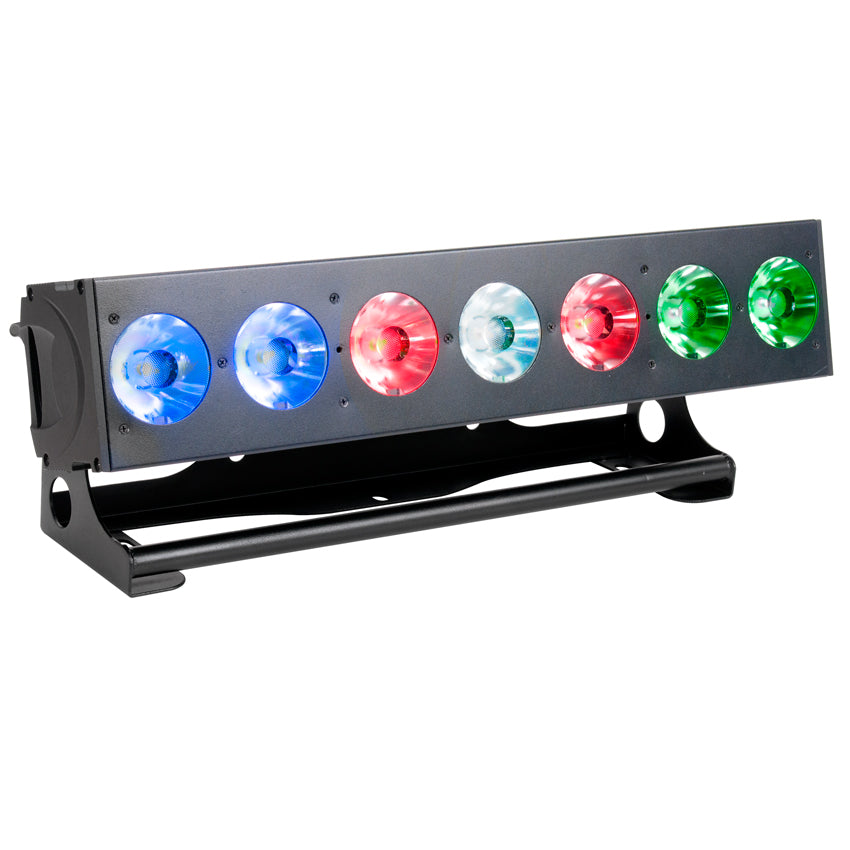

Versatile 31° Beam Bar Luminaire
New Advanced Collimator Lens
(7) Pixel Controled RGBW 4-in1 LEDs
Laser-Like Homogenized 4° Color Changing Beams
Strobe and Selectable Dimming Curve Effects
DMX, RDM, KlingNET™ and Art-NET (DMX Over Ethernet) Support
Flicker Free Operation for Broadcast TV and FILM

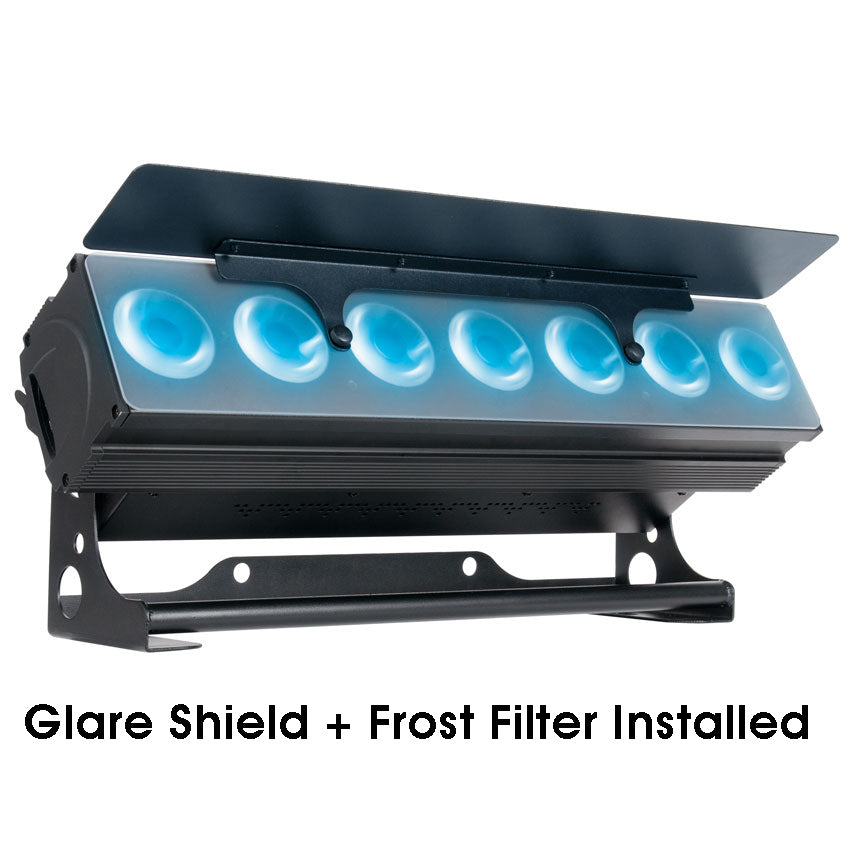

Glare Shield and Frost Filter Included

Resources

Specifications Sheet

User Manual

Photometric Data

DMX Traits

Dimensional Drawing

CAD Drawing

Vectorworks Symbol

Specifications

SOURCE
(7) 15W RGBW 4-in-1 LEDs
100,000 Hour Average Lamp Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA (31° Full ON)
43,380 LUX 4,030 FC @3.3’ (1m)
19,330 LUX 1,796 FC @6.6’ (2m)
12,180 LUX 1,132 FC @9.8’ (3m)
8,575 LUX 797 FC @13.1’ (4m)
6,247 LUX 580 FC @16.4’ (5m)

EFFECTS
Individual Pixel Control
Strobe and Selectable Dimming Curves

COLOR
RGBW

CONTROL / CONNECTIONS
(10) DMX Channel Modes:
(1CH:04 / 2CH:04 / 6 / 8 / 10 / 12 / 28 / 30 / 32 / 35)
RDM (Remote Device Management)
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display

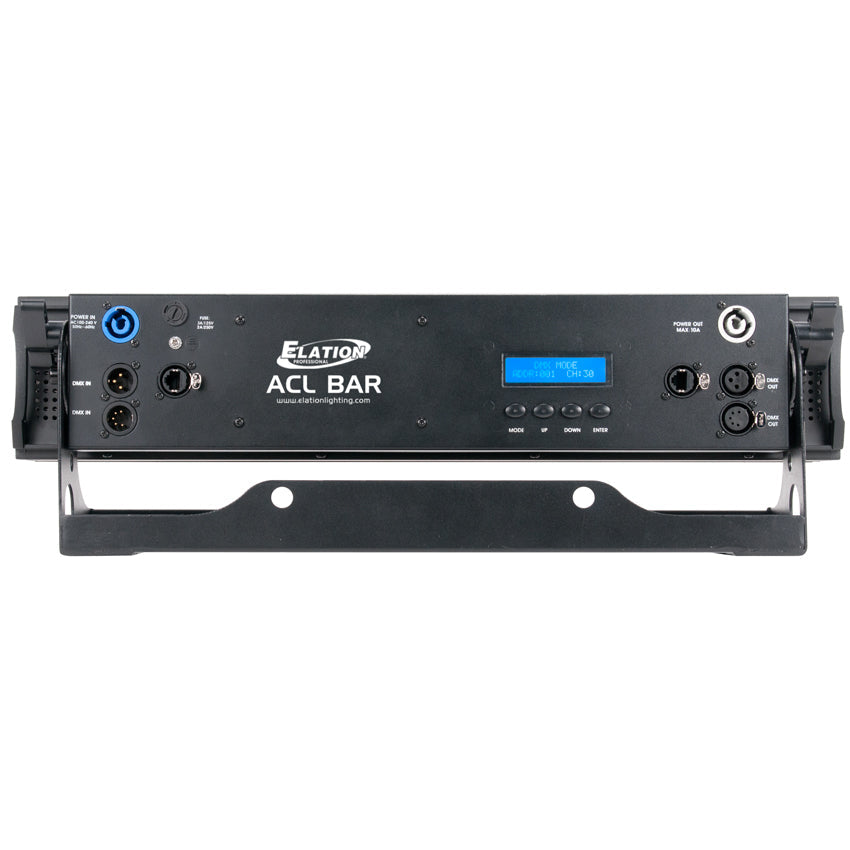

3pin/5pin DMX In/Out
RJ45 Ethernet In/Out (Art-NET)
powerCON Power In/Out

SIZE / WEIGHT
Length: 21.6” (550mm)
Width: 9.5” (241.2mm) (Glare Shield Installed)
Vertical Height: 6.8” (172.5mm)
Weight: 15.0 lbs. (6.8 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
135W Max Power Consumption
5F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS
CE | cETLus | IP30

INCLUDED ITEMS
powerCON Cable
Glare Shield
Frost Filter


Specifications and documentation subject to change without notice.
