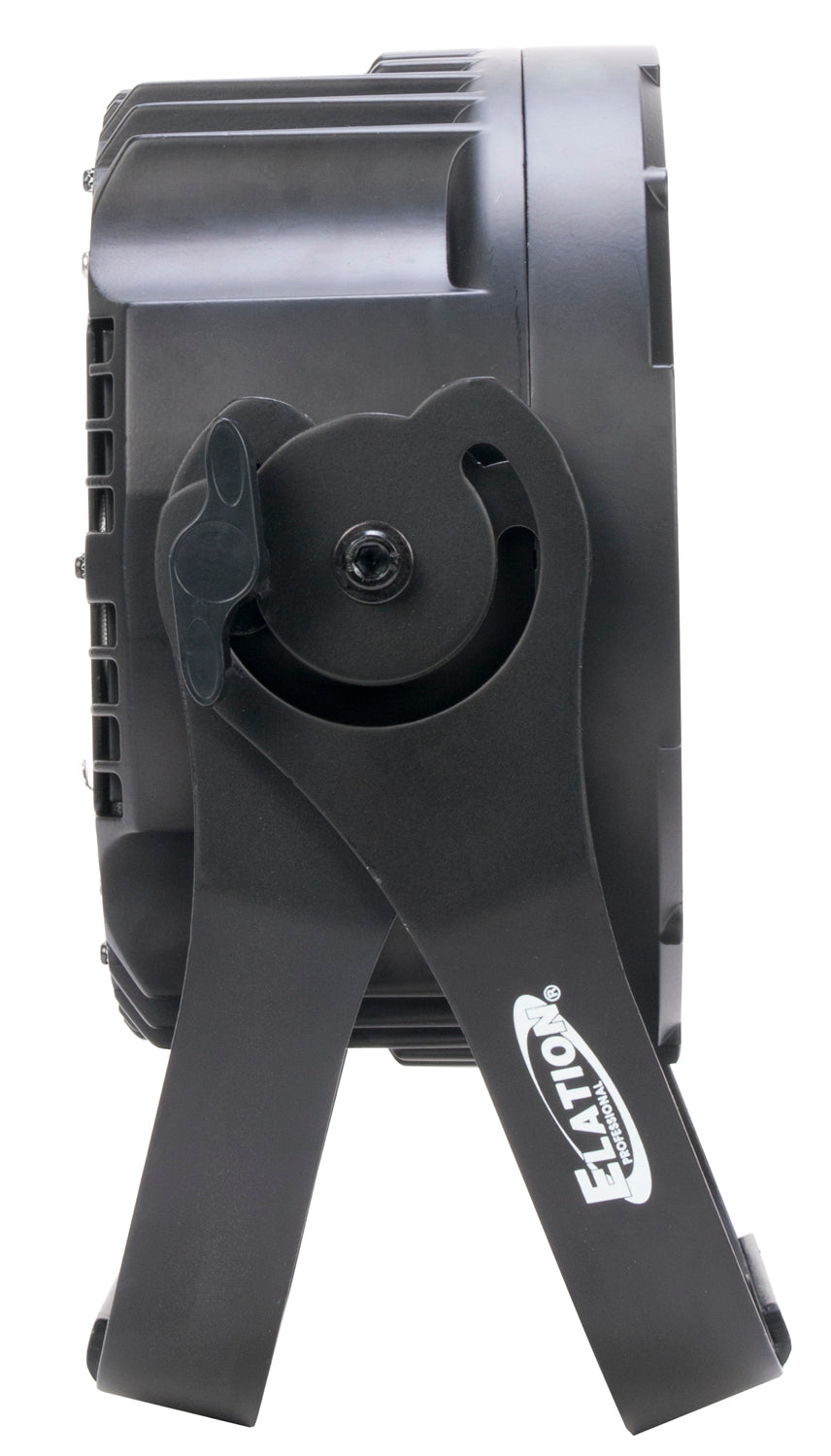

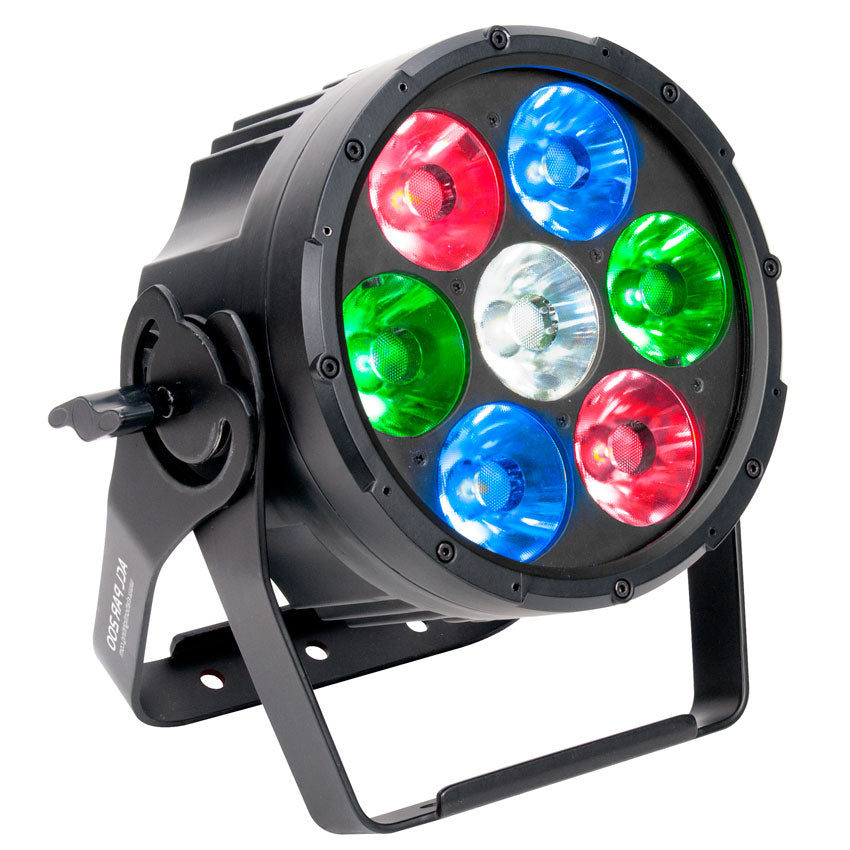

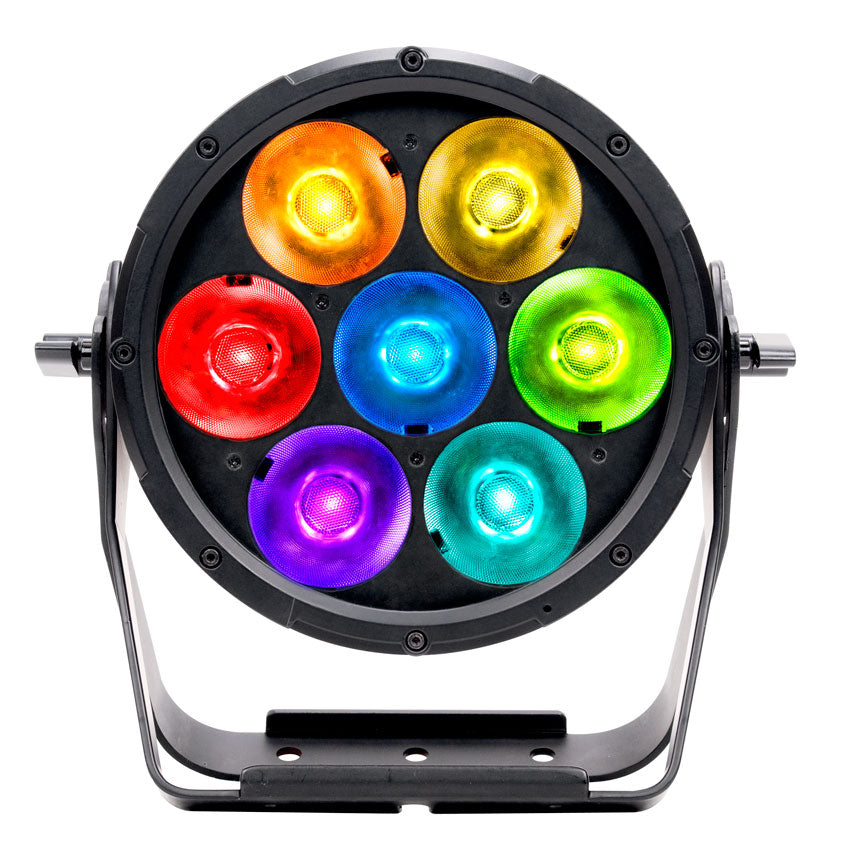

ACL PAR 200

Features

Versatile 11° Beam Par Luminaire
New Advanced Collimator Lens
(7) Pixel Control RGBW 4-in1 LEDs
Laser-Like Homogenized 4° Color Changing Beams
Strobe and Selectable Dimming Curves
DMX, RDM, KlingNET™ and Art-NET (DMX Over Ethernet) Support
Flicker Free Operation for Broadcast TV and FILM

Resources

Specifications Sheet

Vectorworks Symbol

User Manual

Dimensional Drawing

Photometric Data

CAD Drawing

DMX Traits

Photometric Test Report

Photometric IES File

Specifications

SOURCE
(7) 15W RGBW 4-in-1 LEDs
100,000 Hour Average Lamp Life*
*LED Life may vary depending on several factors including but not limited to
 Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA (11° Full ON)
56,149 LUX 5,216 FC @3.3’ (1m)
36,935 LUX 3,431 FC @6.6’ (2m)
20,439 LUX 1,899 FC @9.8’ (3m)
11,897 LUX 1,105 FC @13.1’ (4m)
7,617 LUX 708 FC @16.4’ (5m)

EFFECTS
Individual Pixel Control
Strobe and Selectable Dimming Curves

COLOR
RGBW

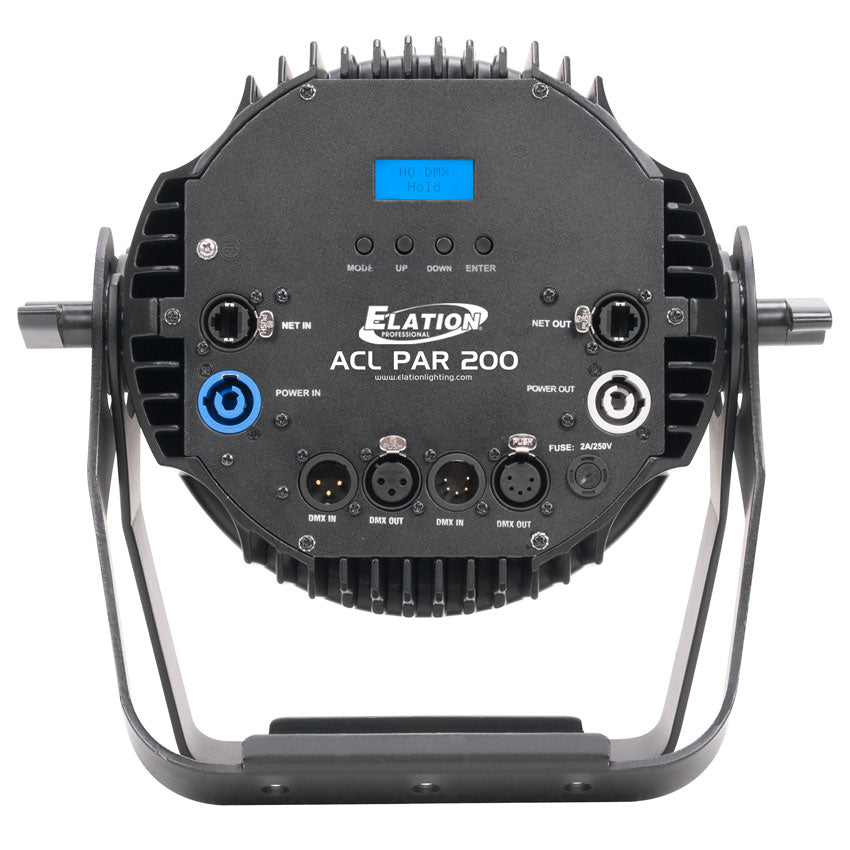

CONTROL / CONNECTIONS
(11) DMX Channel Modes:
(4CH1:04 / 4CH2:04 / 6 / 8 / 10 / 12 / 27 / 28 / 30 / 32 / 35)
RDM (Remote Device Management)
4 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
3pin/5pin DMX In/Out
RJ45 Ethernet In/Out (Art-NET)
powerCON Power In/Out

SIZE / WEIGHT
Length: 12.3” (313mm)
Width: 5.6” (142mm)
Vertical Height: 11.8” (300mm)
Weight: 13.0 lbs. (5.9 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
110W Max Power Consumption
Power Linking: 9pcs Max @110V / 21pcs Max @230V
5F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS
CE | cETLus | IP30

INCLUDED ITEMS
powerCON Cable




Specifications and documentation subject to change without notice.
