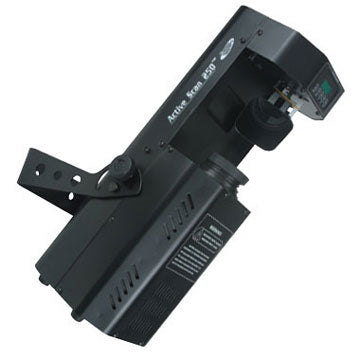

Active Scan 250

Features

High Output Intelligent Lighting Fixture

 Control Features

• USITT DMX-512 (8-bit resolution)

• 6 DMX Channels

• 4 Digit LED display

• Self test & stand alone settings

• 3 Pin XLR Serial input/output

Resources

User Manual

Specifications

 Features & Specs

• High luminous parabolic reflector system

• 19º Beam Angle

• Manual Focus

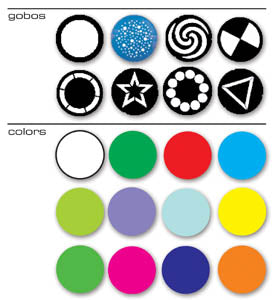

• 11 colors + white

• 7 gobos + spot

• 1 Glass Dichro Gobo

• Color & Gobo Scroll

• Gobo Shake Effect

• Rotating gobos

• Master/slave Operation

• Linkable with ACTIVE WAVE-250

• Sound activated built-in programs

• Mechanical Dimming 0-100%

• Mechanical Shutter

• Strobe & Pulse effect

• Variable Speed Strobe (1-15fps)

• Fan Cooled
 GOBO SIZE: 26.9mm x 23mm

 Technical Specifications

• Lamp: MSD250/2 (250W, 8500K, 2000H)

• Dimensions (LxWxH): 10.25” x 11.75” x 25.5”
 (260x299x650mm)

• Weight: 30 lbs / 13.5 kgs

• Fuse 10A

• Voltage: 115V/60Hz

• Power Consumption: 300VA
