Arena Par Zoom
Arena Par Zoom
Discontinued
SKU# ARE801

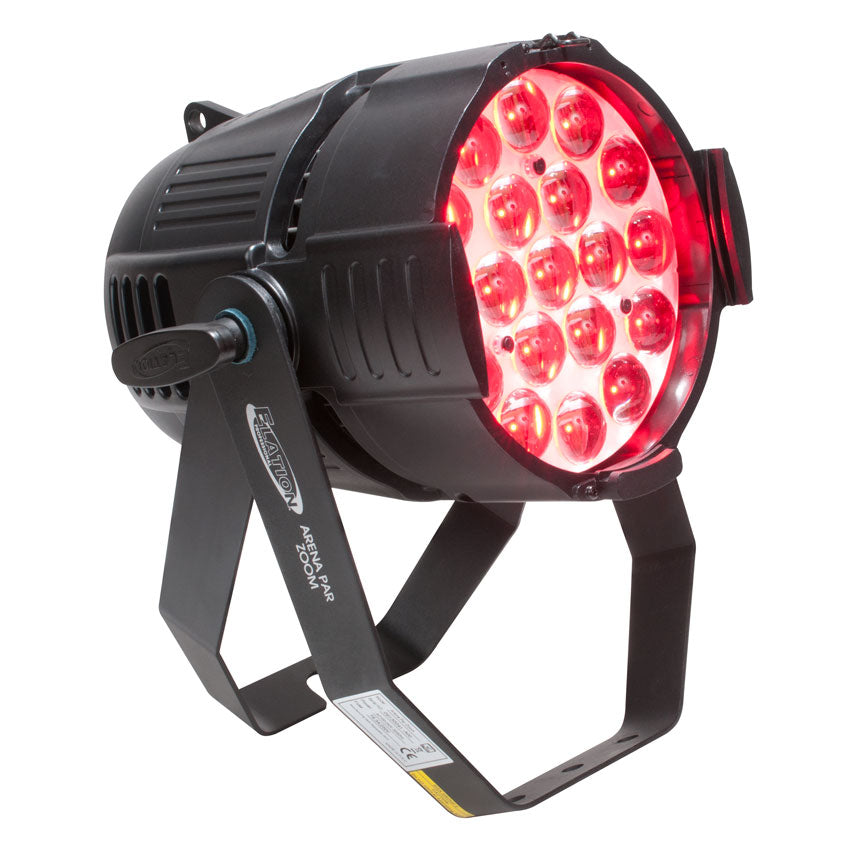

The Arena Par Zoom™ features (19) 10W QUAD Color LEDs from Osram™, 10° to 60° motorized zoom, electronic dimming and variable dimming curves, selectable color temperatures (3,200K - 7,200K), flicker free operation for TV and FILM, 3 and 5pin in/out DMX and powerCON in/out connections, 4 button touch control panel, integrated dual rigging yoke / floor stand, linkable power for up to 4 units at 120V and up to 8 units at 230V, 220W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).
Features
1000-Watt Comparable Lumens Output
Motorized 10° - 60° Zoom
Variable Dimming Curves
Selectable Color Temperatures (3,200K - 7,200K)
Flicker Free Operation for TV and FILM
Resources
Specification information
Guides/ Manuals
PHOTOMETRIC DATA
PHOTOMETRIC DATA
PHOTOMETRIC DATA
DMX/ RDM Traits
Drawings
CAD File
CAD File
- ARENA PAR ZOOM Vectorworks 2014 Symbol
- ARENA PAR ZOOM Vectorworks 2015 Symbol
- ARENA PAR ZOOM Vectorworks 2016 Symbol
Related Categories
Specifications
SOURCE
19x 10W Osram™ QUAD Color (RGBW) LEDs
50,000 Hour Average Life
PHOTOMETRIC DATA
12,600 LUX @3M 10° Min Zoom
900 LUX @3M 60° Max Zoom
EFFECTS
Strobe + Variable Strobe Macros
Electronic Dimming and Variable Dimming Curves
COLOR
RGBW

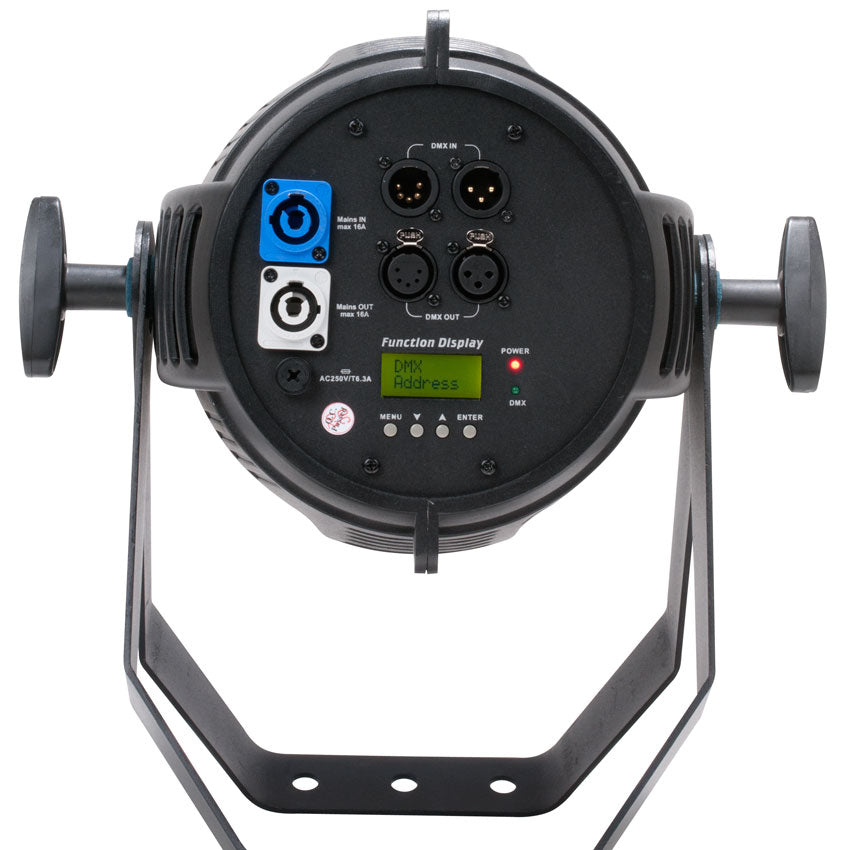

CONTROL / CONNECTIONS
7 DMX Channel Modes (5 / 6 / 7 / 9 / 10 / 15 / 16)
3pin & 5pin DMX In/Out
4 Button Control Panel
LCD Menu Display
powerCON Power In/Out
Power Link Up To (4) Units at 120V (8) Units at 230V
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 12.8” (324mm)
Width: 10.9” (276mm)
Vertical Height: 14.5” (368mm)
Weight: 15.9 lbs. (7.2kg)
ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
220W Max Power Consumption
-4°F (-20°C) to 104°F (40°C)
APPROVALS / RATINGS
CE | cETLus | IP20
INCLUDED ACCESSORIES
(1) Power Cable
OPTIONAL ACCESSORIES:

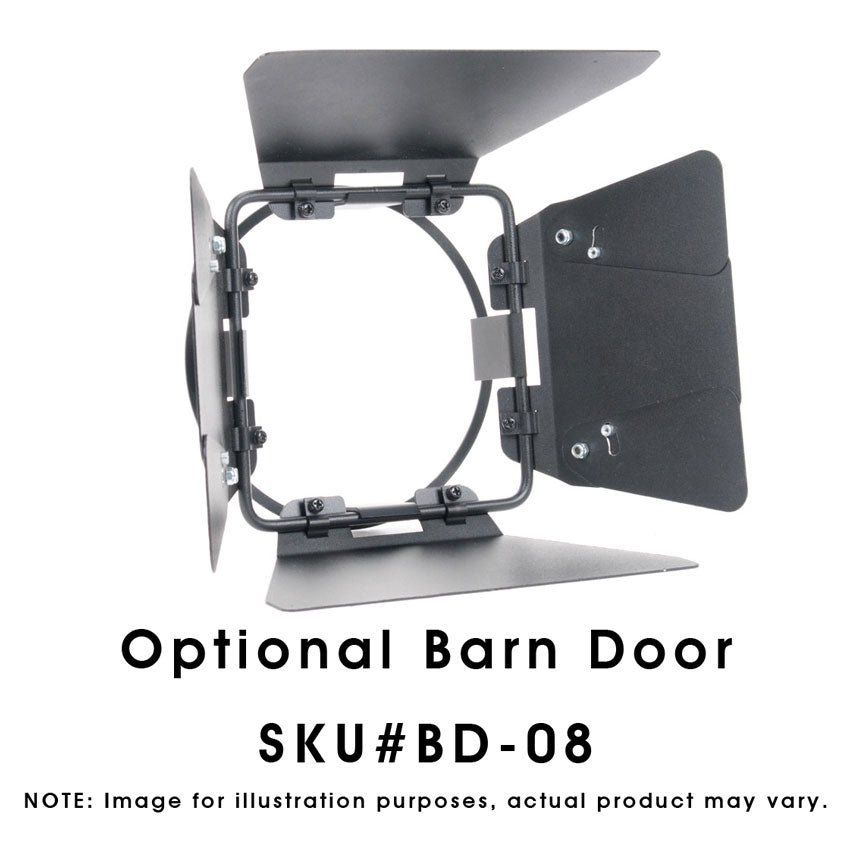

BD-08 - Barn Door
Specifications and documentation subject to change without notice
