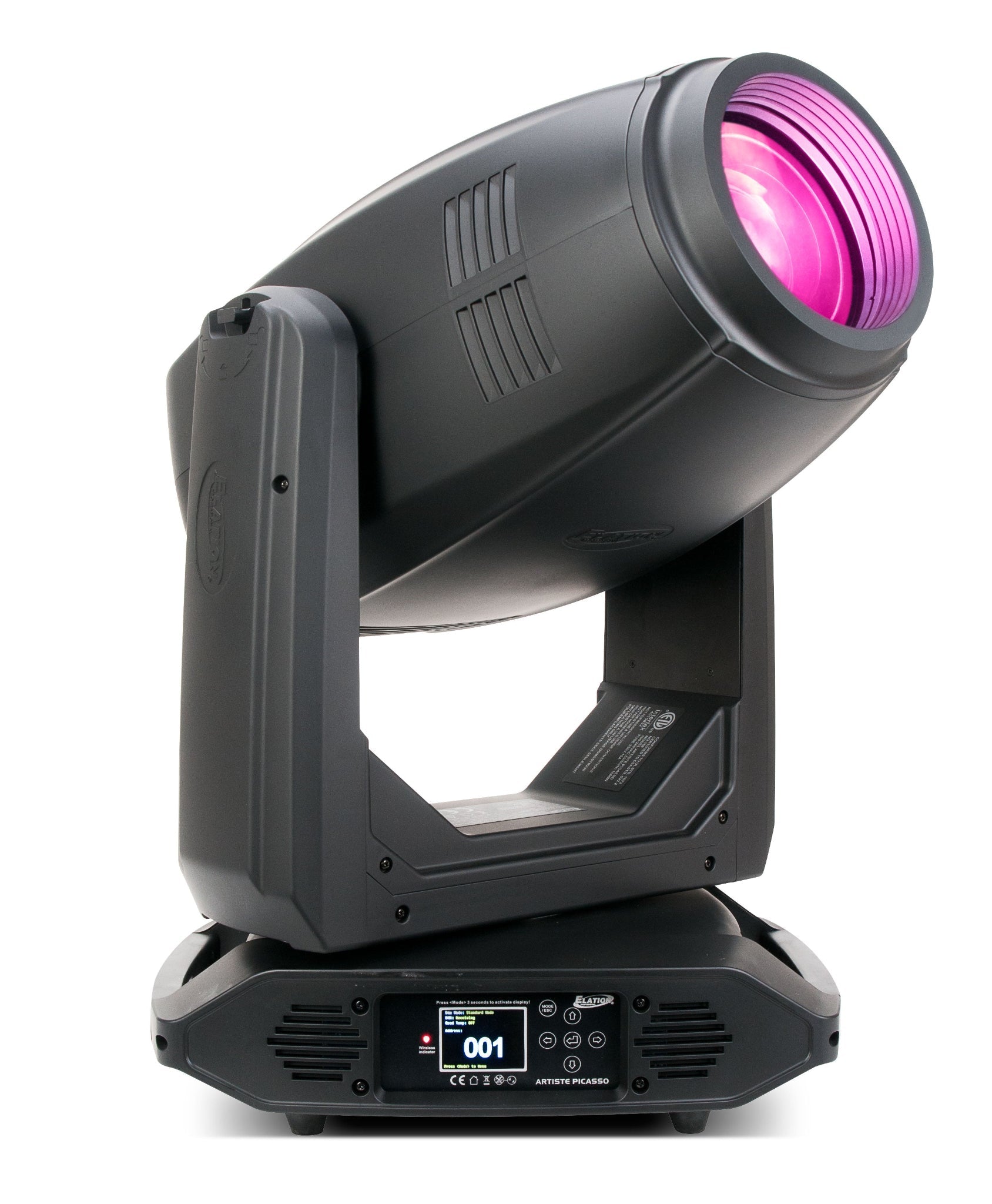

Artiste Picasso FC

Features

FIXTURE
620W 6,800K Cool White LED Engine
23,000+ Total Lumen Output
7° to 55° Motorized Zoom
Full CMY Color Mixing System and Linear CTO Color Correction
6 Dichroic Colors including a High 87 CRI Filter
7 Rotating/Indexing Glass and 7 Static-Stamped Metal Interchangeable Gobos
4 Rotating Full Blackout Framing Blades
Full 360° Bi-Directional Animation Wheel
4-Facet and Linear Rotating Prisms and 2 Frost Filters
Internal Color, Framing, Prism, and Frost Macros
Motorized Iris with Variable Pulse Effects
Motorized Focus and Auto-Focus Feature
16-bit Pan, Tilt, and Dimming Control
Variable Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Adjustable LED Refresh Rate Frequency and Gamma
Flicker Free Operation For Broadcast TV and FILM
Silent Fan Mode
DMX, RDM, Art-NET, and sACN Protocol Support
Elation's E-FLY™ Internal Wireless DMX Transceiver
Low Heat, Quiet Operation, Hibernation Mode (Power Save)

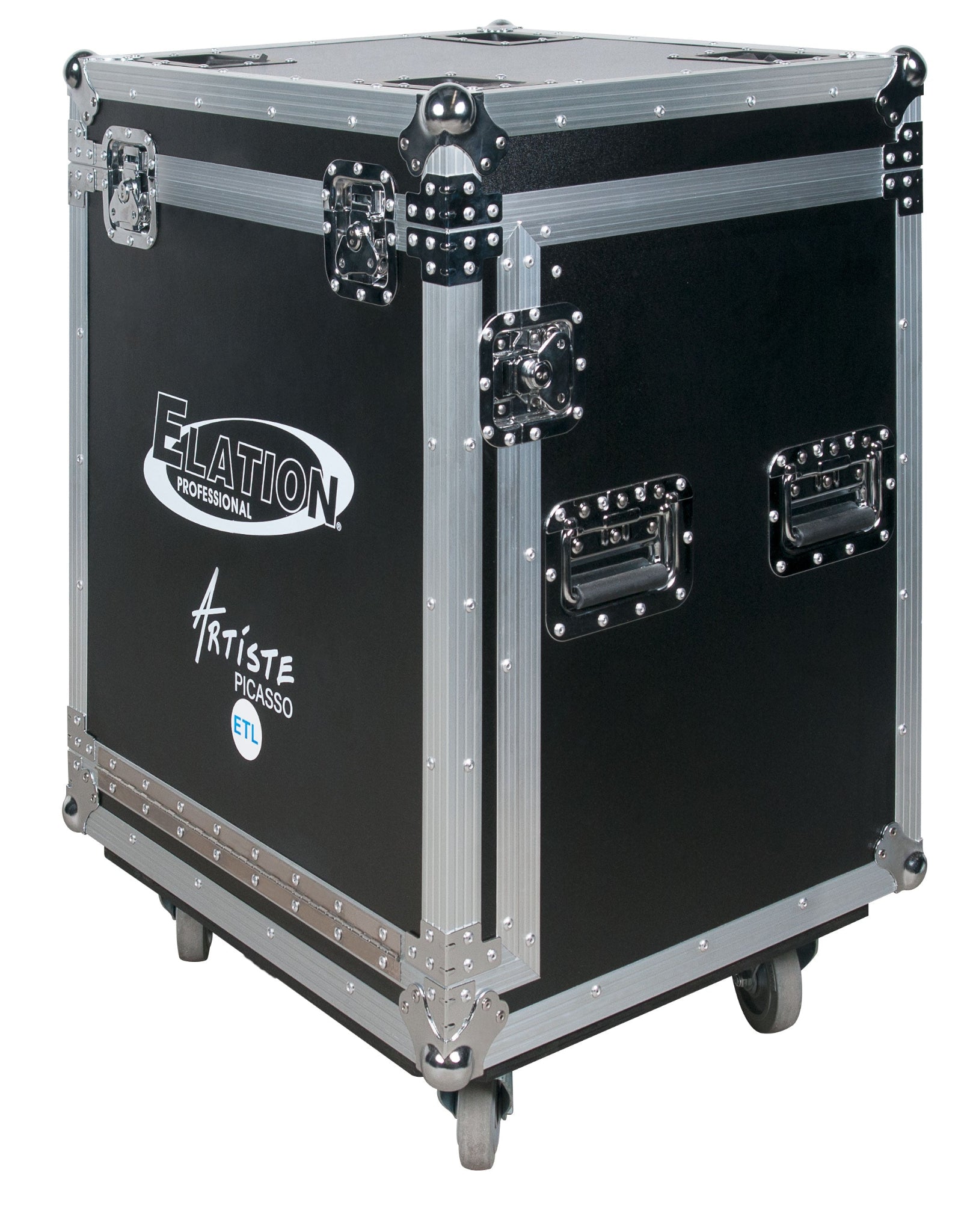

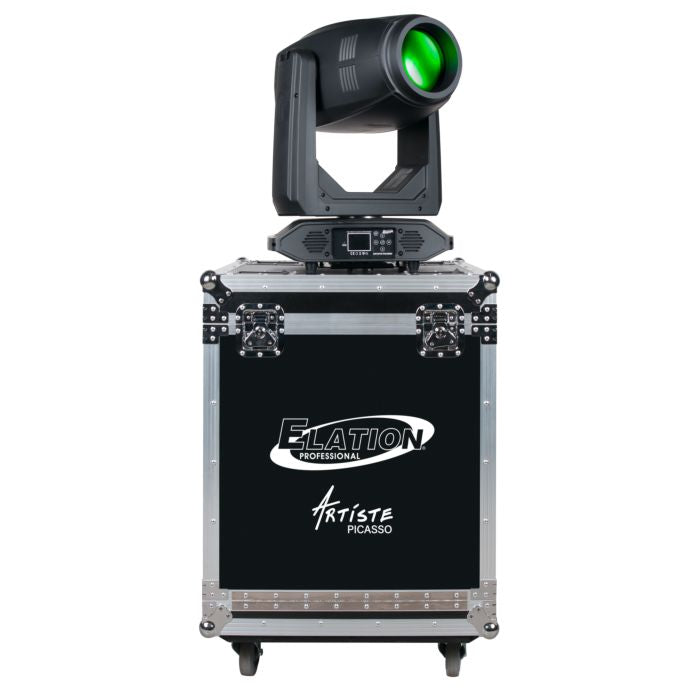

FLIGHT CASE
Holds Single Fixture
Triple Hinge Foam Attached Top Lid
Piano Hinge Foam Attached Front Lid
Inverted Fixture Side Loading
Spring Loaded Handles
High Impact Corners
Stacking Cups
Locking Casters

Resources

Specification information

Guides/ Manuals

PHOTOMETRIC DATA

PHOTOMETRIC DATA

Gobo & Color Info

DMX/ RDM Traits

CAD File

CAD File

Specifications

SOURCE
620W 6,800K Cool White LED Engine
30,000 Hour Average LED Life*
*Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA
23,000+ Total Lumen Output
CRI 73 (87+ with HCRI filter)
Zoom Range 7° - 55°
Beam Angle 6.7° - 47.9°
Field Angle 8.2° - 56°

EFFECTS
Motorized Zoom
4 Rotating Full Blackout Framing Blades
+/-45° Framing Indexing
Full 360° Bi-Directional Animation Wheel
4-Facet and Linear Rotating Prisms
2 Frost Filters
Internal Color, Framing, Prism, and Frost Macros
Motorized Iris with Variable Pulse Effects
Variable 16-bit Dimming Curve Modes
High Speed Electronic Shutter and Strobe
Adjustable LED Refresh Rate Frequency and Gamma

COLOR
Full CMY Color Mixing System
Linear CTO Color Correction
6 Dichroic Colors including High 87 CRI Filter

GOBOS
2 Gobo Wheels
7 Rotating / Indexing Interchangeable Glass Gobos
7 Interchangeable Static-Stamped Metal Gobos

CONTROL / CONNECTIONS
2 DMX Channel Modes (36 / 62 channels)
16-bit Pan, Tilt, and Dimming Control
Motorized Focus and 5-15m Auto-Focus Presets
DMX, RDM, Art-NET, and sACN Protocol Support
Elation's E-FLY™ Internal Wireless DMX Transceiver

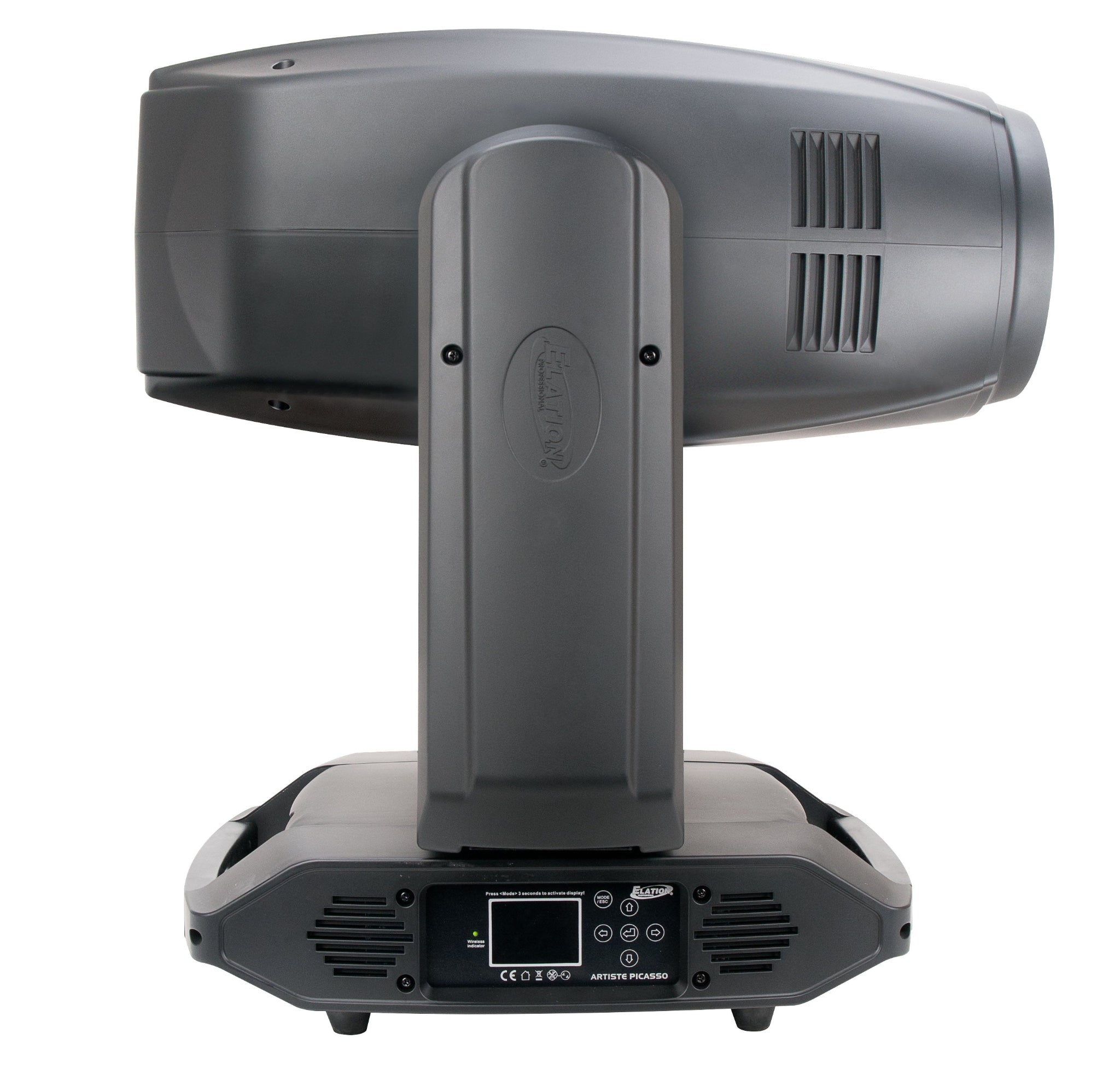

6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
8 / 16 Bit Resolution Adjustable Movement
Hibernation Mode (Power Save)

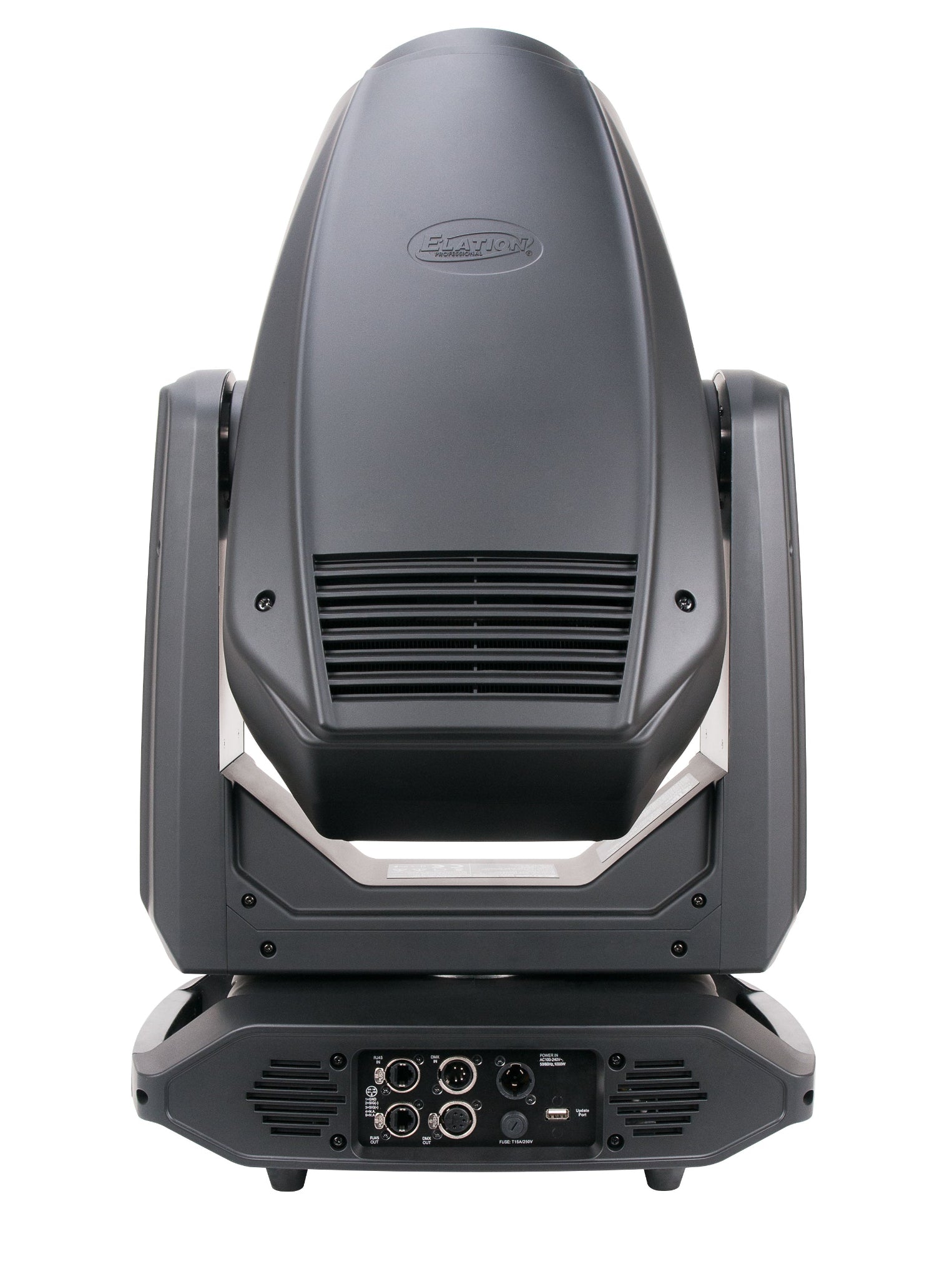

Locking 5pin XLR DMX, RJ45 Ethernet, and Power
With Wired Digital Communication Network

FIXTURE SIZE / WEIGHT
Length: 18.0" (457mm)
Width: 21.5" (544.5mm)
Vertical Height: 29.8" (757.5mm)
Weight: 84.0 lbs. (38.1kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
1000W Max Power Consumption
14°F to 113°F (-10°C to 45°C)

APPROVALS / RATINGS
CE | cETLus | IP20

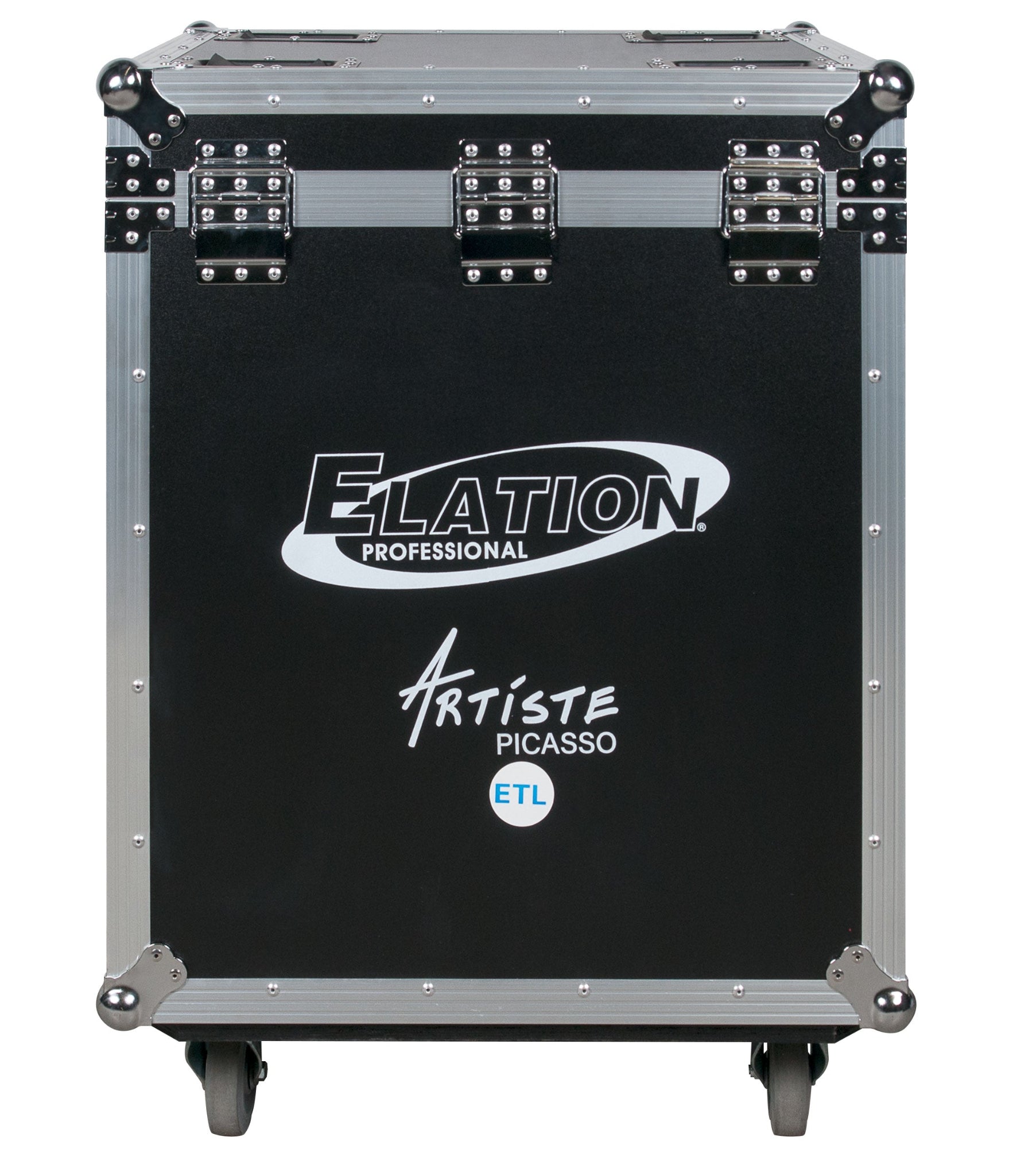

FLIGHT CASE (Holds Single Fixture)ABS Exterior Finish
Tongue and Groove Sealing Extrusion
Triple Hinge Foam Attached Top Lid
Piano Hinge Foam Attached Front Lid
Plywood Base Plate
4 Heavy Duty Locking Casters
4 Recessed Spring Latches
8 High Impact Corners
4 Stacking Cups

SIZE / WEIGHT
Length: 25.0" (635mm)
Width: 22.5" (571.5mm)
Vertical Height: 35.5" (901.7mm)
Weight EMPTY: 84lbs. (38.1 kg)
Weight LOADED: 168+ lbs. (76.2+ kg)*
*Actual weight may vary.


FIRMWARE UPDATES

Current Version: V1.1.5

Click HERE for software updates


Specifications and documentation subject to change without notice.
