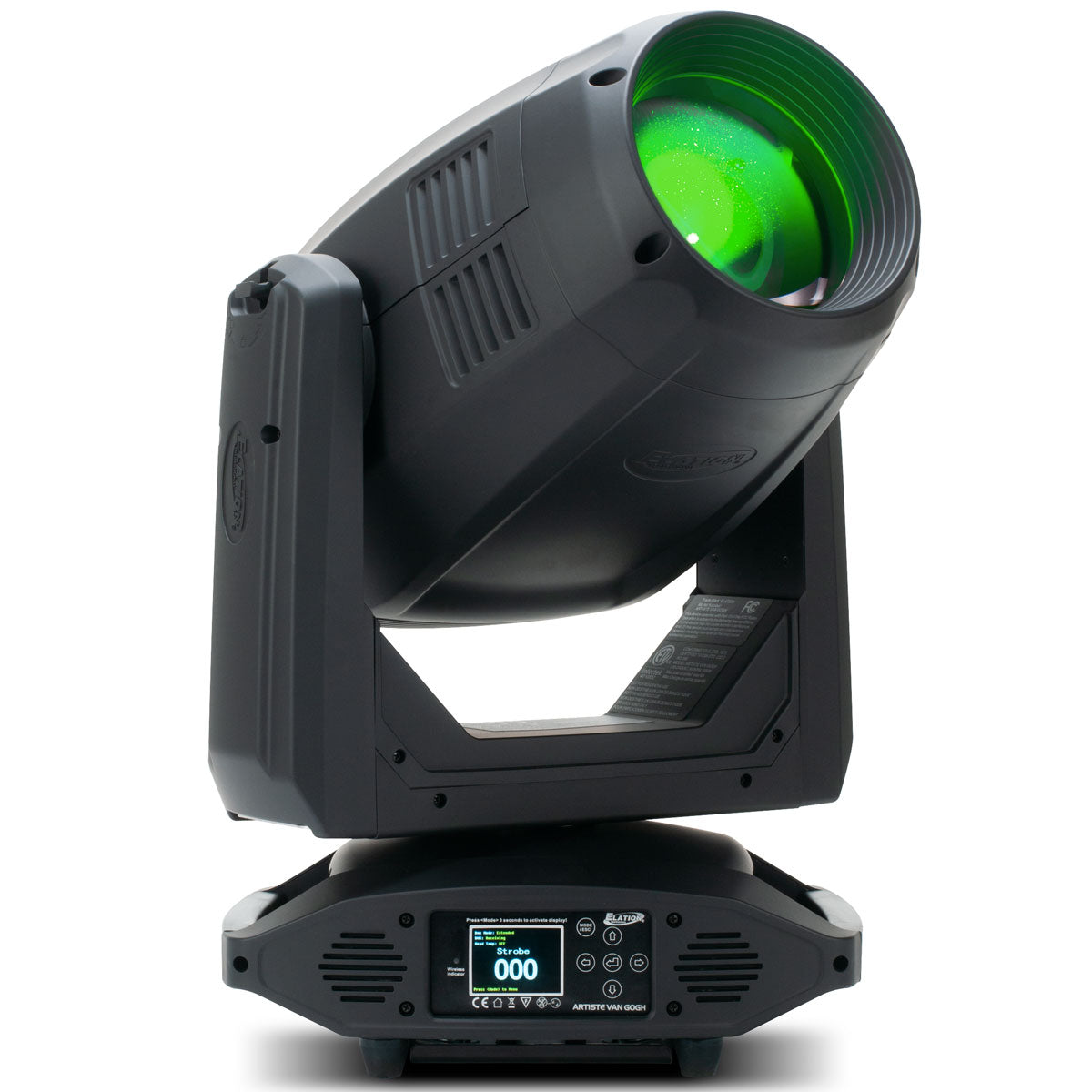

Artiste Van Gogh

Features

High Output Bright White LED Engine with excellent color rendition

CMY and CTO color mixing

7 Position Color Wheel

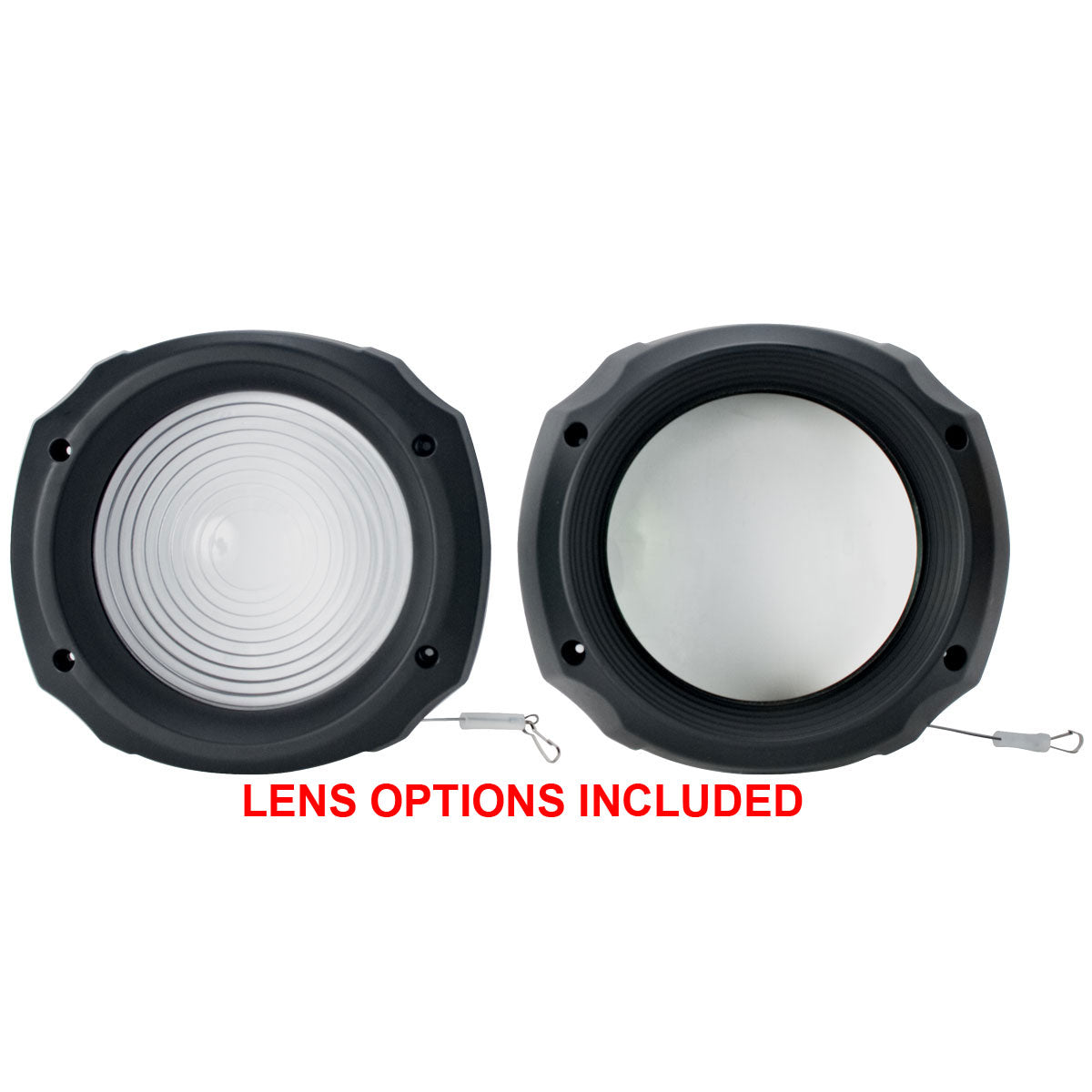

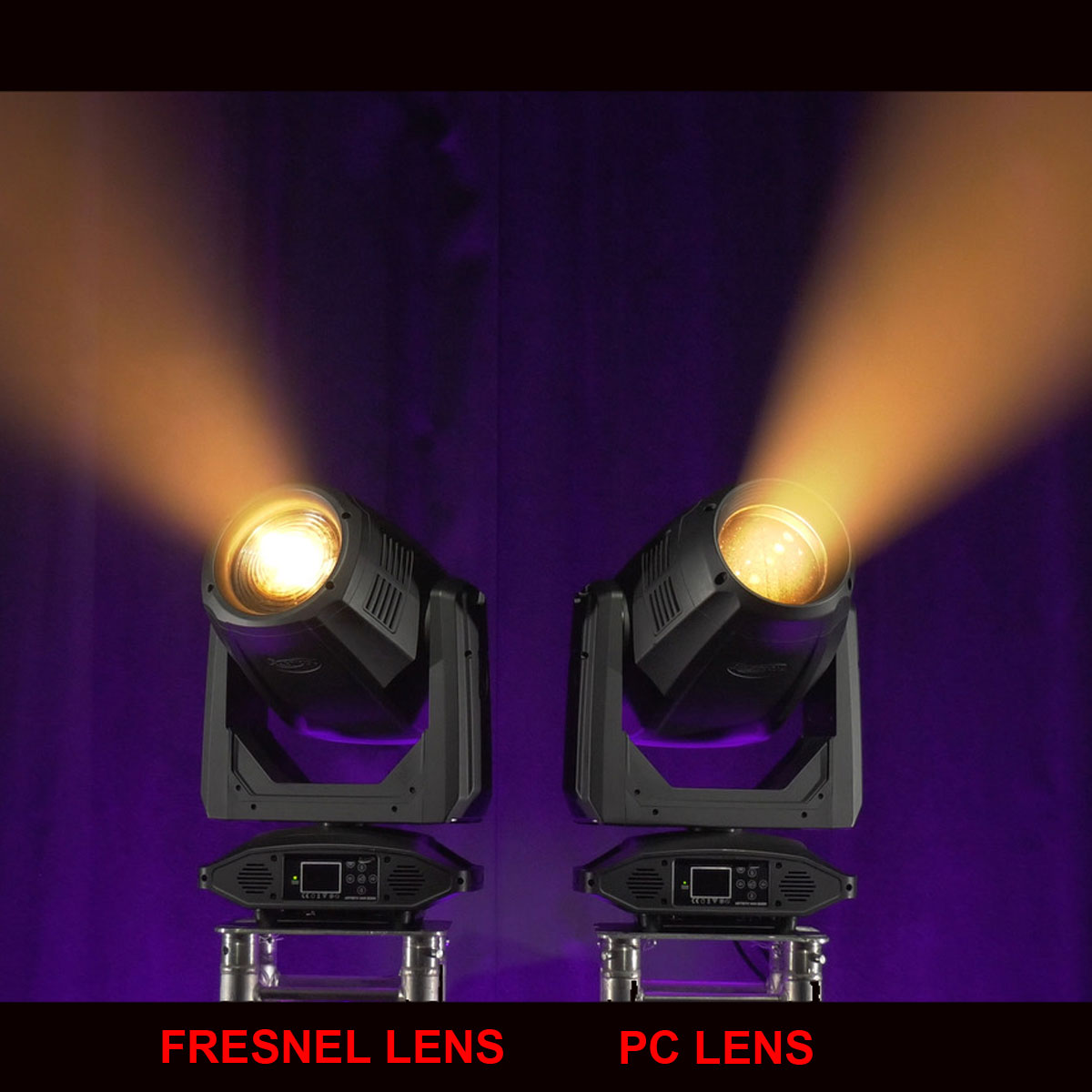

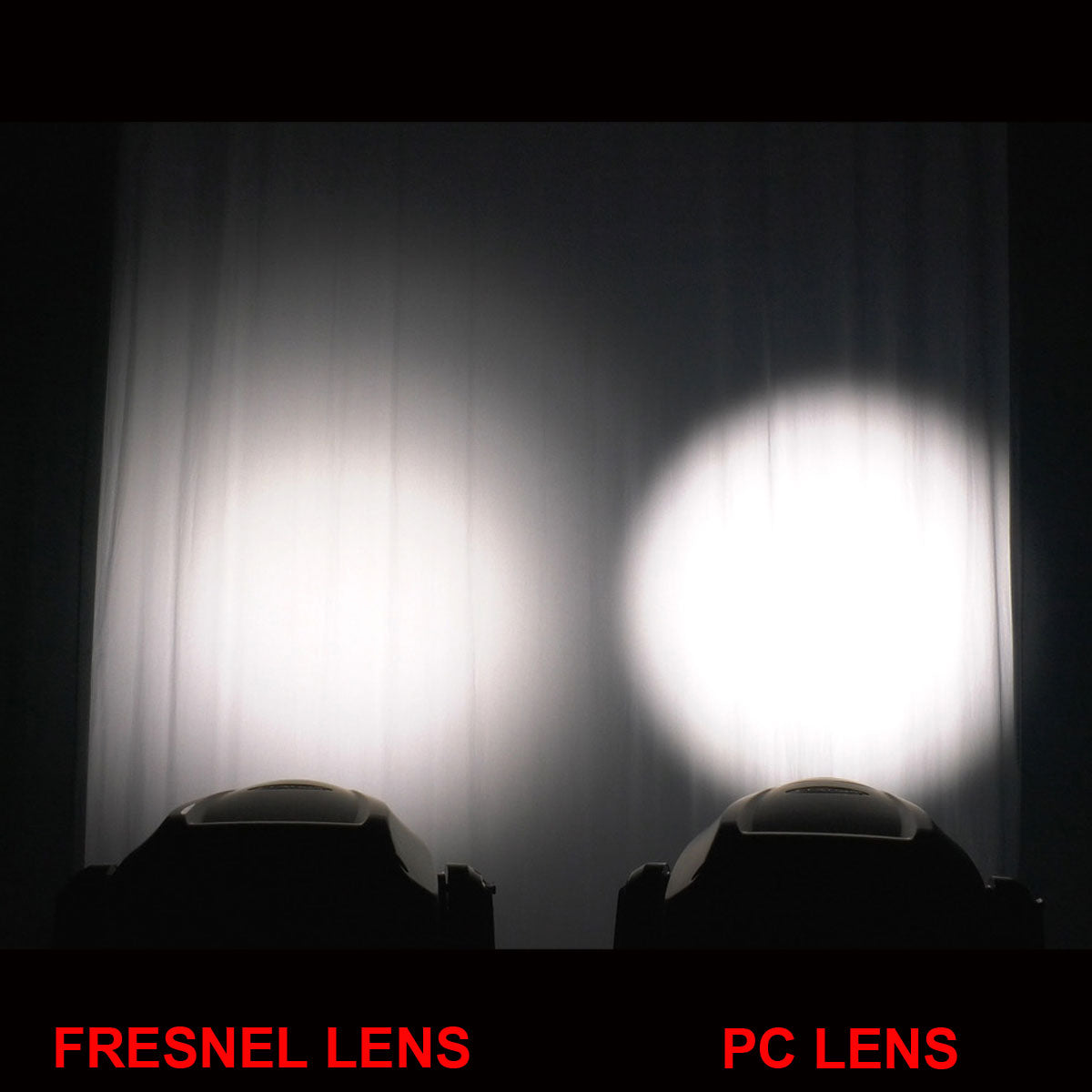

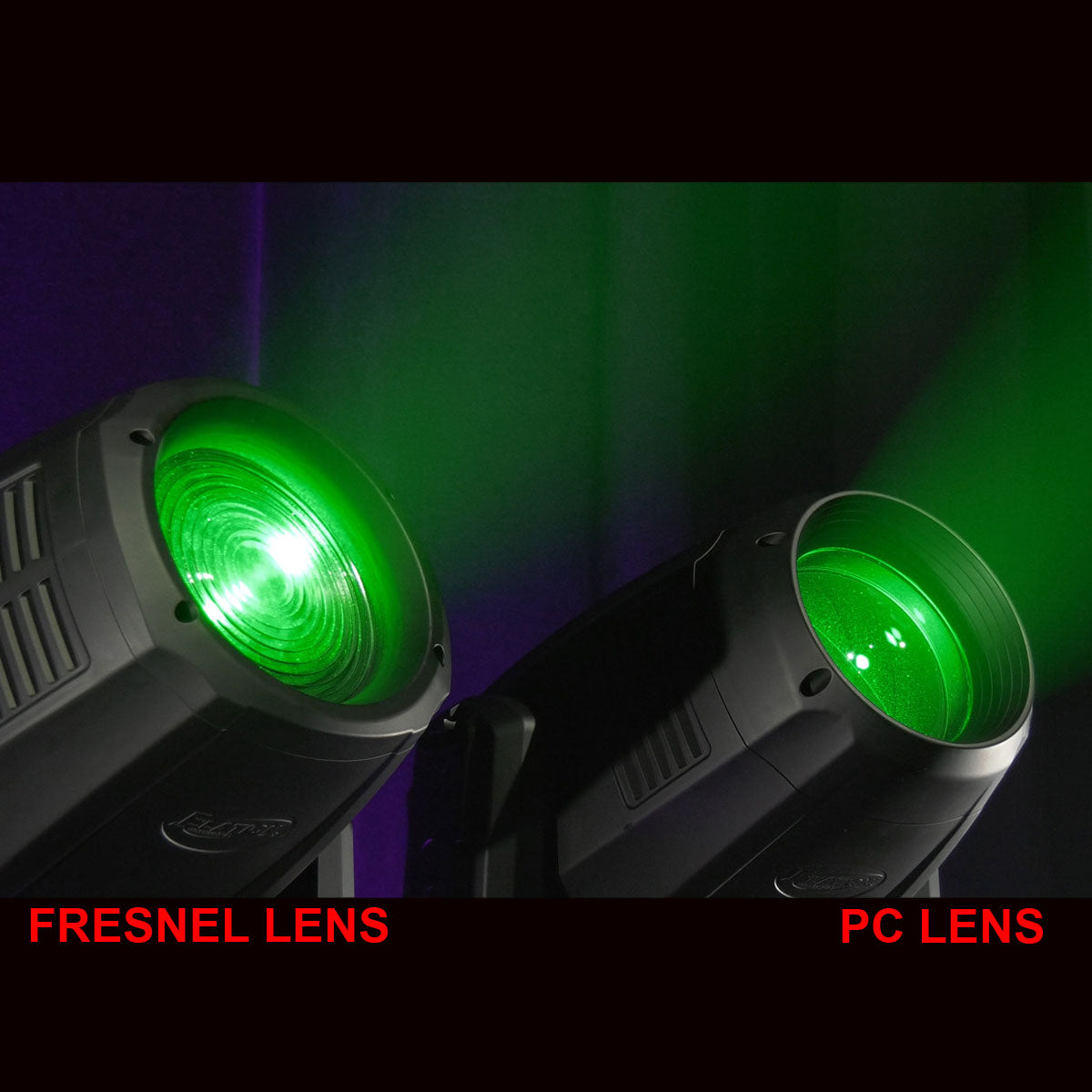

Interchangeable PC and Fresnel Lens options included for even washes and powerful illumination

Internal indexable barn door system for beam shaping and light control at any angle

Seamless Frost Filter

Silent and Cool Operation

Resources

Specification information

Guides/ Manuals

PHOTOMETRIC DATA

PHOTOMETRIC DATA

DMX/ RDM Traits

Drawings

CAD File

CAD File

Related Categories

Specifications

SOURCE

380W 6500K LED Engine

20,000 Hour Average LED Life*

*Test lab conditions. May vary depending on several factors including but not limited to:

Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA

16,000 Total Output Lumen

CRI 91

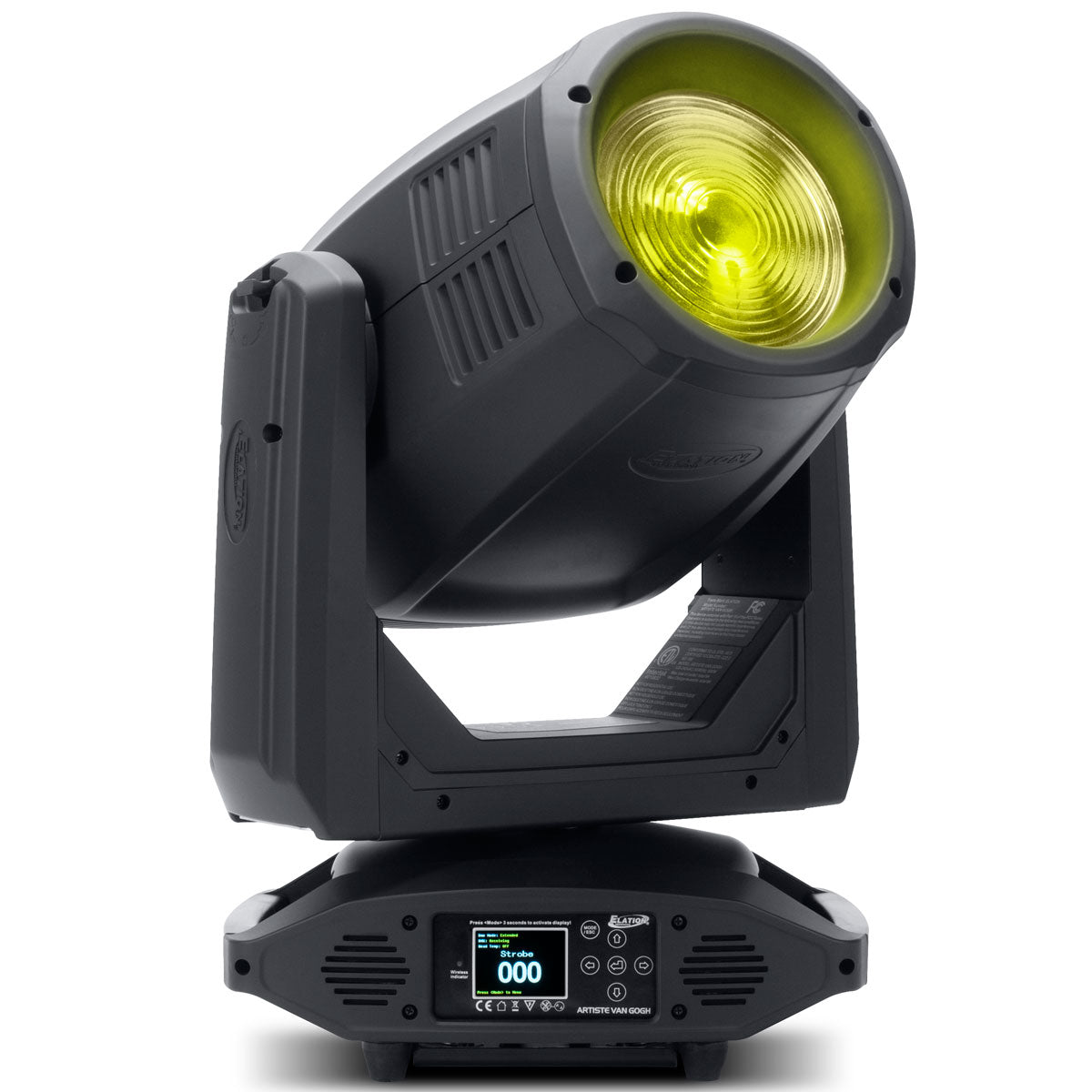

Fresnel Lens
Zoom Range 11° - 66°

Beam Angle 7.5° - 45.2°

Field Angle 16.5° - 68.2°

PC Lens

Zoom Range 7° - 55°

Beam Angle 5.6° - 43.2°

Field Angle 7.1° - 58°


EFFECTS

Motorized Zoom

CMY + CTO Color Mixing

7 Position Fixed Color Wheel including UV

4 Independent Barn Doors

Barn Door Index Adjustment

Frost Filter

Remote Focus Adjustment

Electronic Strobe and Variable Dimming Curves

16-bit Dimming

Pan Angle: 540°/630°

Tilt Angle: 260°


CONTROL / CONNECTIONS

2 DMX Channel Modes (22 / 36 Channels)

DMX Adjustable Refresh Rate (900 -25000 Hz)

(6) Button Touch Panel

Full Color 180° Reversible LCD Menu Display

DMX, RDM, Art-Net, sACN Protocol Support

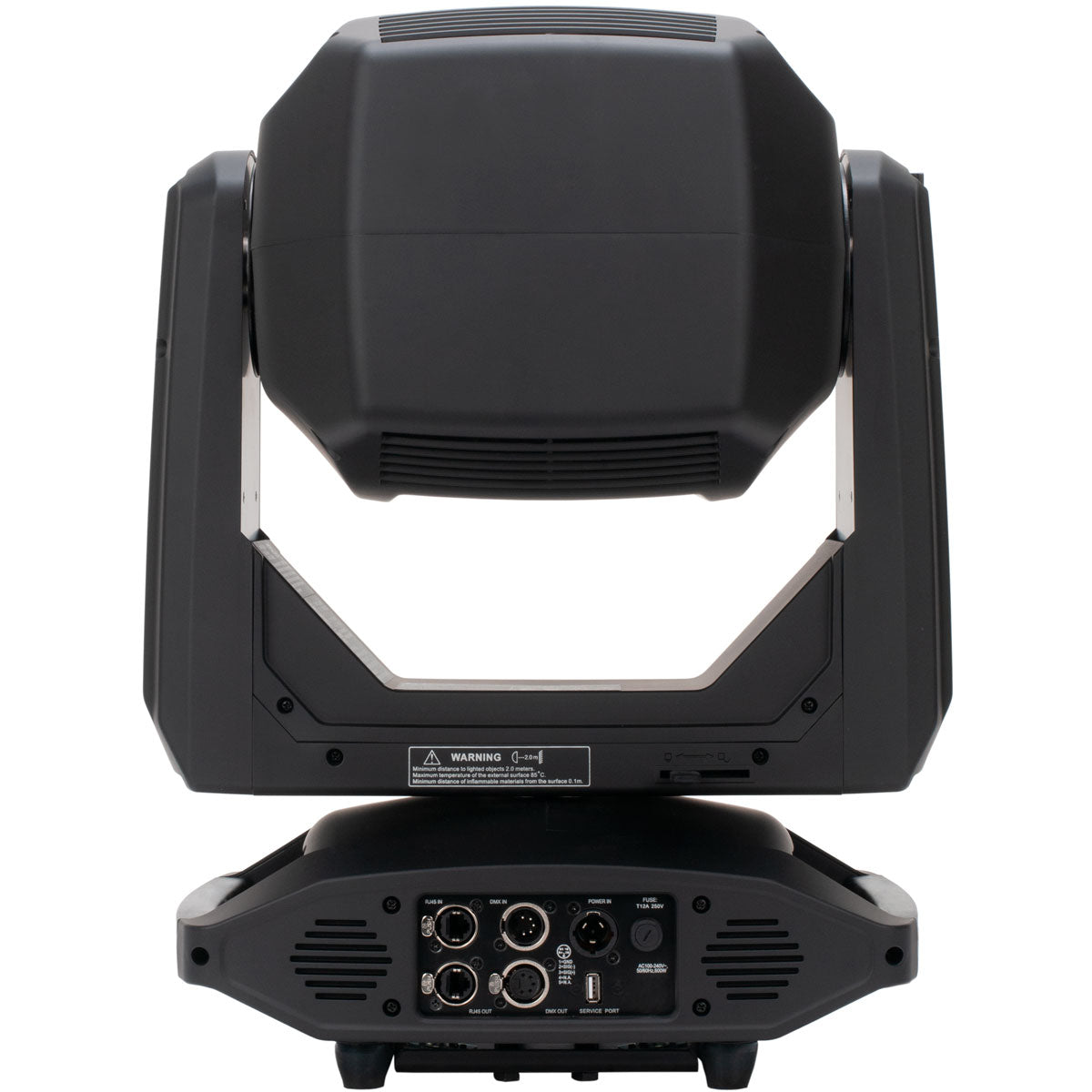

Locking 5pin XLR DMX, RJ45 Ethernet, and Power

USB Connection (Firmware Updates)

With Wired Digital Communication Network


SIZE / WEIGHT

Length: 15.73 in (399.6mm)

Width: 17.61 in (447.3mm) (Fresnel Lens)

Height: 26.34 in (669.mm)

Center Spacing: 24.0 in (609mm)

Weight: 62.8 lbs. (28.5kg)


ELECTRICAL

AC 100-240V 50/60Hz

600W Max Power Consumption

BTU/hr (+/- 10%) 2046


APPROVALS / RATINGS

CE | cETLus | IP20


FIRMWARE UPDATES

Current Version: V1.3.3

Click HERE for software updates



Specifications and documentation subject to change without notice.
