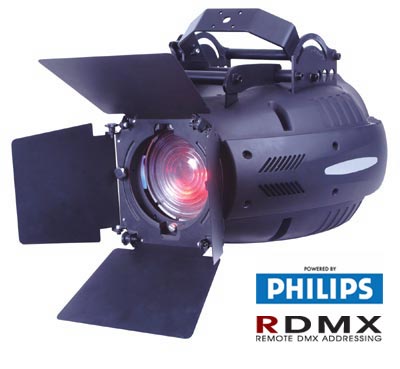

CMY Zoom-575

Features

Resources

User Manual

Specifications

OPTICAL SYSTEM
 High output luminous-parabolic dichroic reflector
 Glass dichroic reflector
 150mm Fresnel lens
 Motorized zoom 13 degrees - 29 degrees

 COLOR

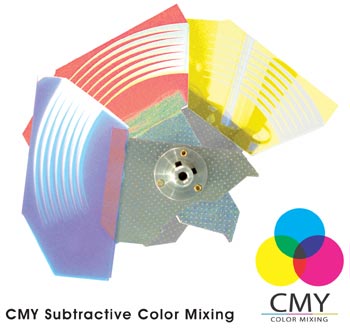

 CMY subtractive color mixing
 7 Dichroic filters, 5 Colors, CTB, CTC + white
 Continuous, variable speed, color scrolling in both directions (rainbow effect)

 SHUTTER/DIMMER
 Variable speed strobe effect (1-10) Flashes per second
 Pre-set variable/random strobe and dimming pulse effect
 Dual Flag mechanical dimming system

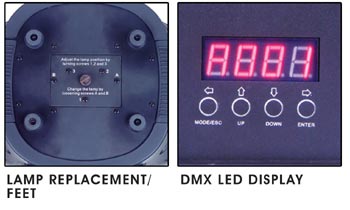

 LAMPS
 Philips MSR 575/2 (575W, 7200°K, 1000 HRS)

 RIGGING

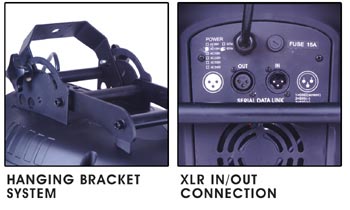

 1 x Hanging Bracket
 1 x Safety hole
 1 x Base plate

 POWER SUPPLY
 15A fuse
 Magnetic Ballast
 Voltage: AC 98, 120, 208, 220, 230, 240V 50/60Hz
 Power Consumption 800W

 DIMENSIONS & WEIGHT
 16”L x 14”W x 17”H (without barn doors)
 60 lbs.
