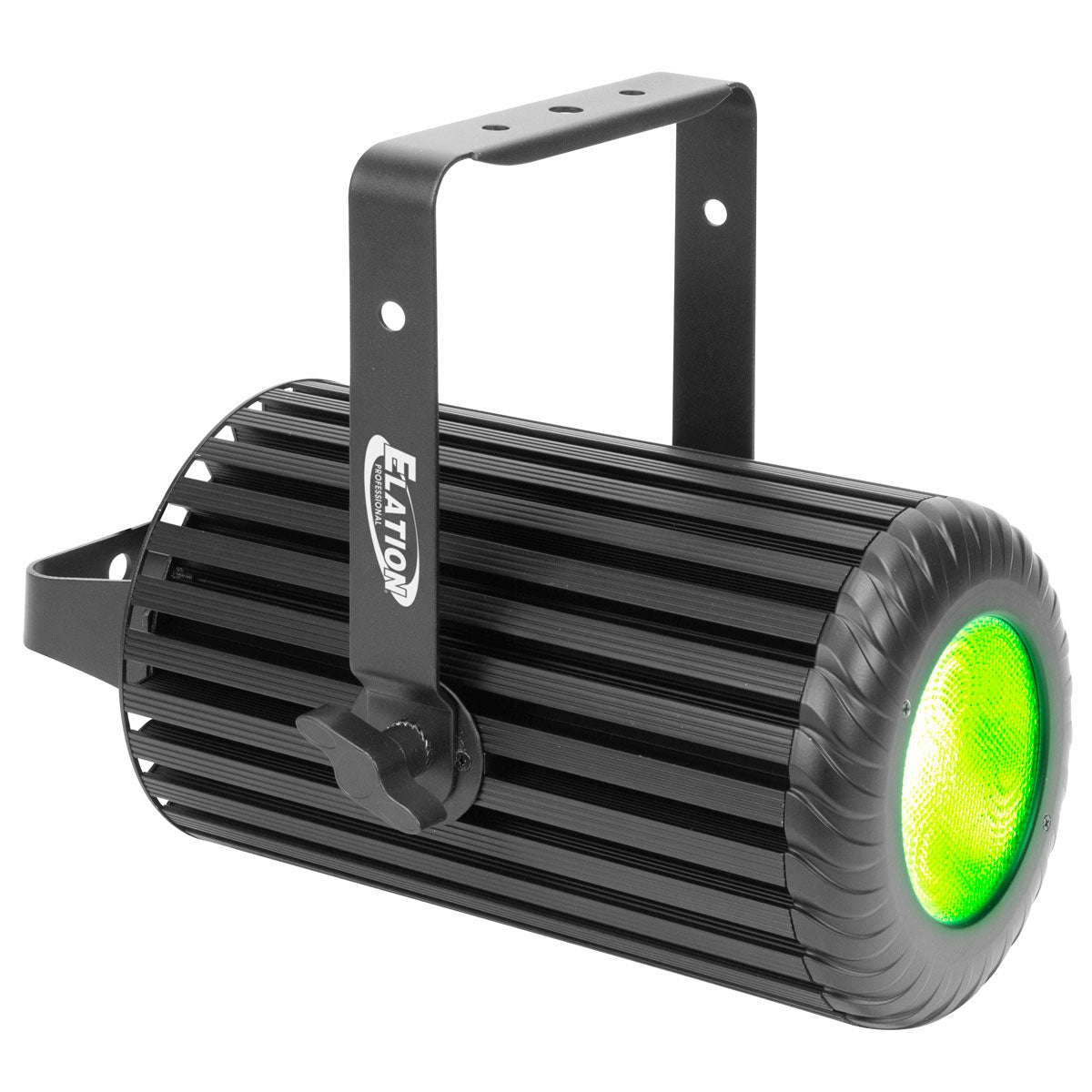

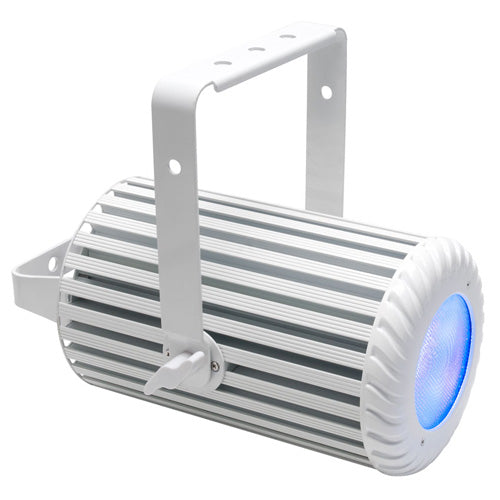

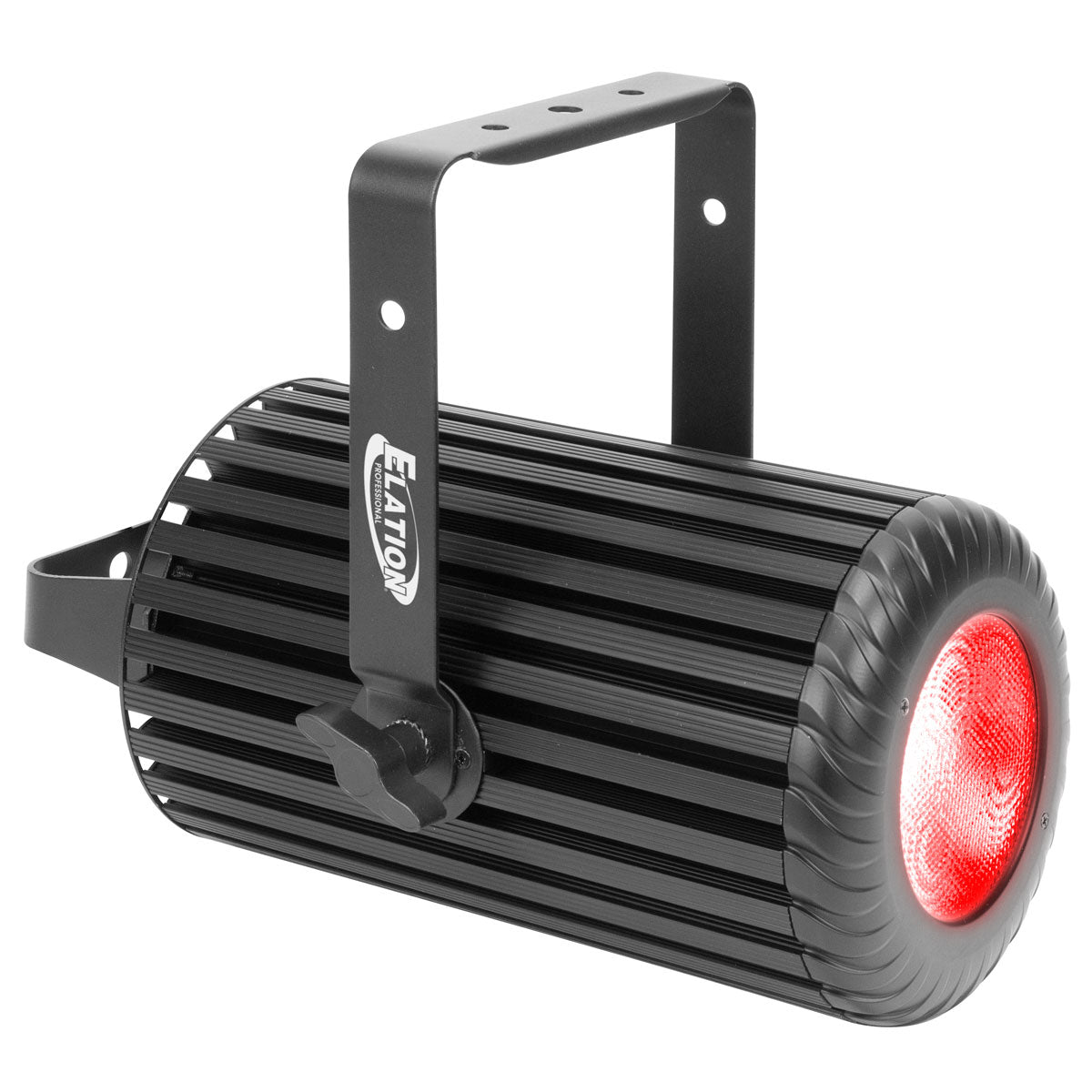

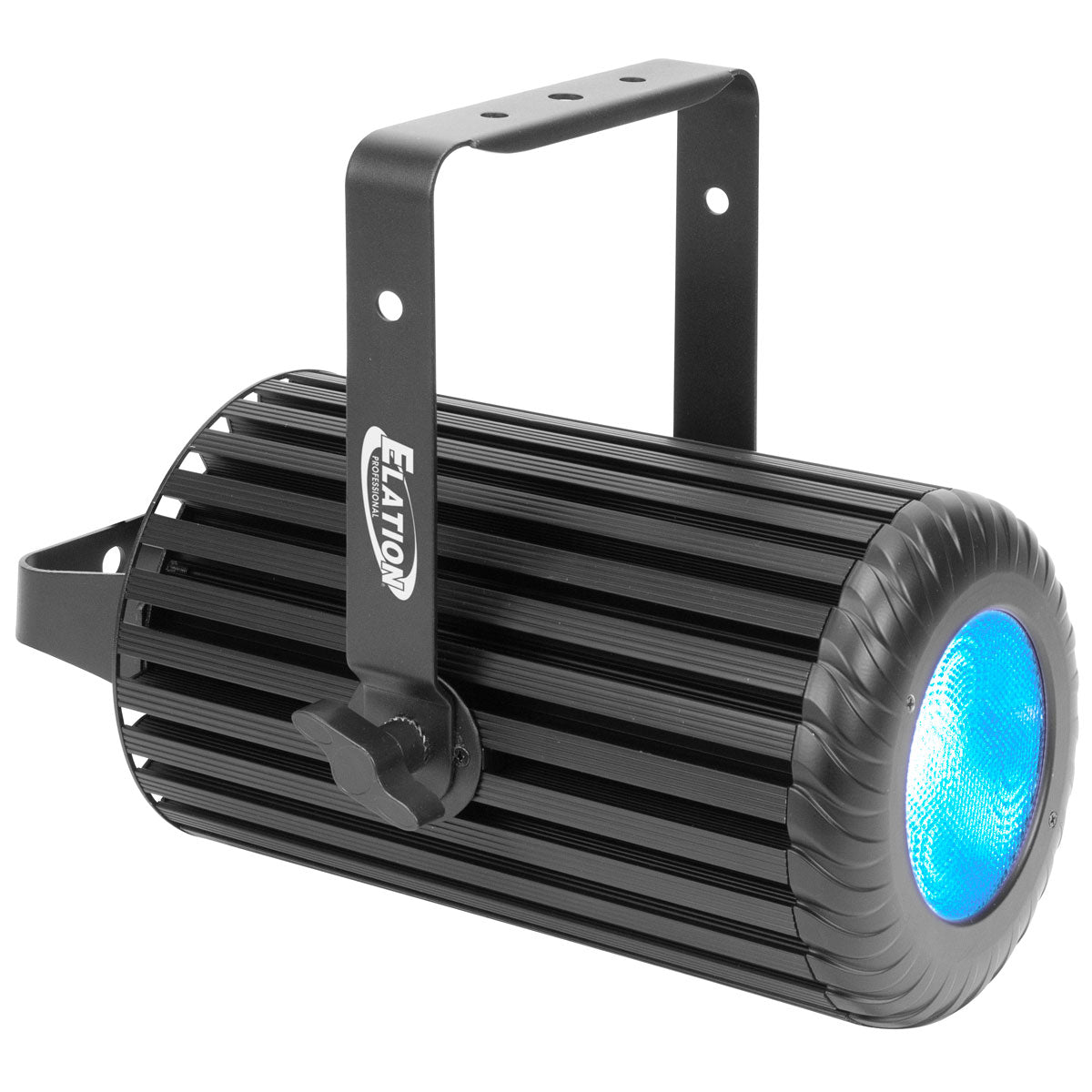

COLOUR PENDANT

Features

41° Beam Angle - 66° Field Angle
Fully Blended Color Transformations
Adjustable Frequency Settings for Flicker FREE Operation for TV and FILM
Convection Cooled / Silent Operation
Removable Pendant and Yoke Mounting Brackets
E-Fly™ Internal Extended Range Wireless DMX Transceiver

Resources

Specifications Sheet

User Manual

Dimensional Drawing

CAD Drawing

DMX Traits

Photometric Data

Vectorworks Symbol

Photometric IES File

Photometric Test Report

Specifications

SOURCE
(36) 3W RGBW LEDs
100,000 Hour Average Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA
3,650 LUX 339 FC @3.3’ (1m) (41°Full ON)
1,020 LUX 95 FC @6.6’ (2m) (41°Full ON)
458 LUX 43 FC @9.8’ (3m) (41°Full ON)
255 LUX 24 FC @13.1’ (4m) (41°Full ON)
164 LUX 15 FC @16.4’ (5m) (41°Full ON)

EFFECTS
Strobe and Color Macros
Dimming : 0% - 100%
Selectable Dimming Curves

CONTROL / CONNECTIONS
11 DMX Channel Modes (1 / 3 / 4x2 / 5x2 / 6x2 / 7 / 8 / 10)
Frequencies (1200Hz, 2400Hz, 4800Hz, 9600Hz)
E-Fly™ Internal Extended Range Wireless DMX Transceiver

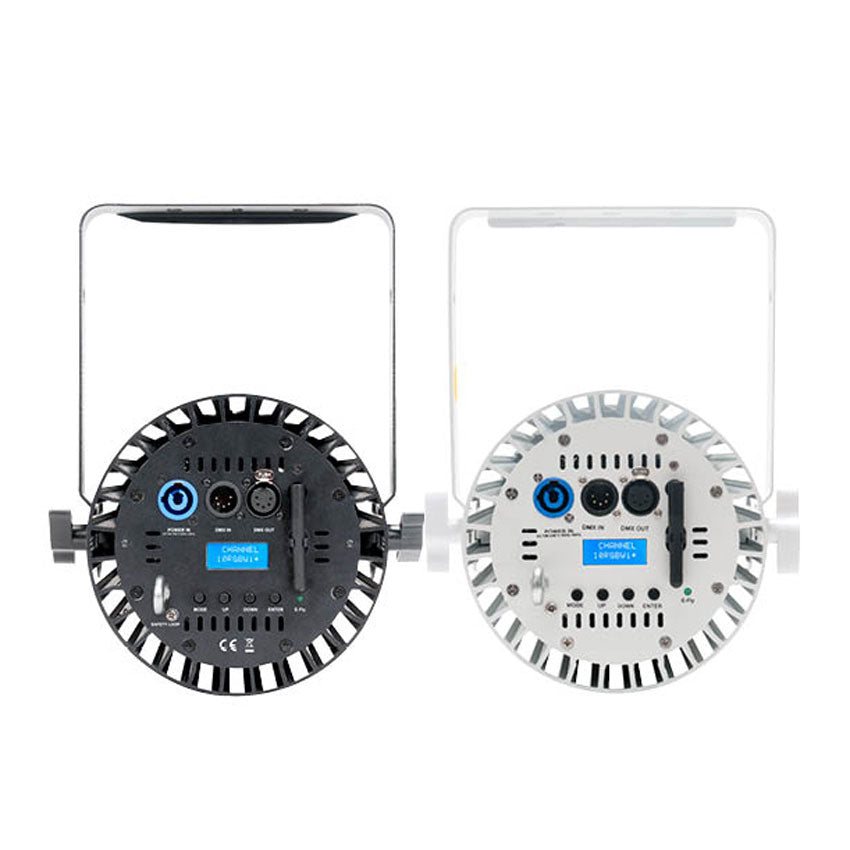

4 Button Control Panel and LCD Menu Display
5pin DMX In/Out
RDM (Remote Device Management)
powerCON Power In

SIZE / WEIGHT
Length: 14.7” (374 mm)
Width: 9.9” (252.5 mm)
Horizontal Height: 12.0” (308.8 mm)
Weight: 14.0 lbs. (6.4 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
110W Max Power Consumption
-14°F to 113°F (-10°C to 45°C)

APPROVALS / RATINGS
CE | cETLus | RoHs | IP20

INCLUDED ACCESSORIES
(1) powerCON Cable

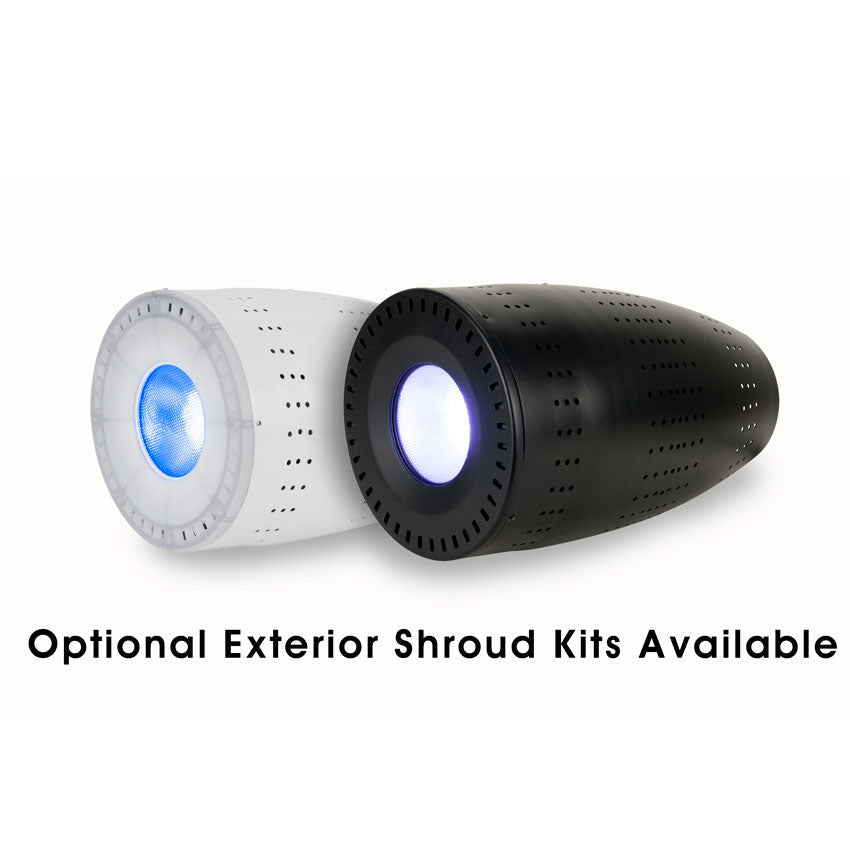

OPTIONAL ACCESSORIES:

COL110/ESK - Exterior Shroud Kit - Black

COL123/ESK - Exterior Shroud Kit - White


Specifications and documentation subject to change without notice.
