Compu 1024EC

Features

Compu 1024EC was developed to be the simplest solution to operating your lighting effects. With other lighting consoles you have an array of faders, buttons and knobs to work with – remembering what they all do can get tricky. The advantage with a PC based system is the ability to see everything right in front of you.

Compu 1024EC features include: a vivid display of scenes and shows; the ability to name and rename all of your cues; plus have direct access to your colors and gobos.

 Compu 1024EC has all the features for the professional lighting programmer but developed with the novice in mind, taking away fears and doubts about programming lighting.

 COMPU 1024EC is your Basic Lighting controller. You can program and play back anything you want and use the Basic 3D visualizer features to set up your shows. Compu 1024EC allows you to use MIDI in or DMX in to use other devices as expansion wings. This option allows you to have an external console to access dimmers, shutters or color wheels. Compu 1024EC has one DMX out port and one DMX in port. Which give you 512 output channels and 512 input channels. However you can sacrifice the 512 input channels and convert to an extra 512 out put channels using a female to female barrel or gender changer for a total of 1024 DMX output channels. Additionally Compu 1024EC will give you an extra 1024 Art-Net DMX channels through your Ethernet output using an Art-net DMX hub.

 Complete Package includes:
 CD-Rom Bundle Software

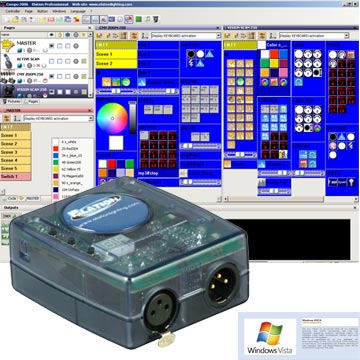

 USB to DMX Interface (dongle)
 2.0 USB cable
 User Manual

 Compu 1024EC Main features

• 512 DMX out channels
• 512 DMX in channels
 -or-
• 1024 DMX out Channels
• +2 Art-Net Universes (Ethernet Out)
•  Master Scene Page
• +2 Art-Net Universes (Ethernet Out)
• Unlimited number of Scenes!
• Unlimited number of Cycles! (Shows)
• Fixtures only limited to channels used
• Pre generated movements and shapes
• Live control button

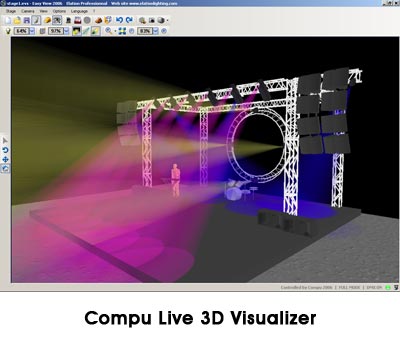

• Easy View (Limited 3D Offline visualizer)
• Large Library of Fixture profiles
• Easy Library Creator

 Control features:
• Hot key triggering (using keyboard)
• Touch Screen Ready!
• Multi media triggering! Plays MP3’s
• DMX triggering
• DMX-IN

• Triggering by Midi in (Midi Notes)
• Audio Input
• Easy to use Electronic Racks

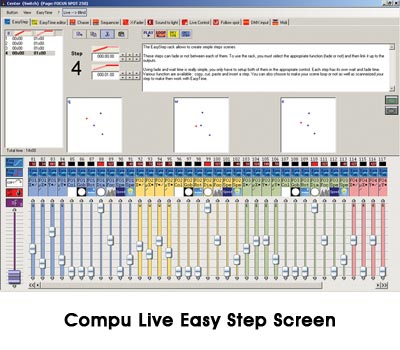

 - easy step - to program chases
 - chaser - built in chases
 - sequencer - built in sequencer
 - x-fader - built in cross-fades
 - follow spot - XY following

Resources

User Manual

Specifications

 USB interface (dongle) Technical Specs & Data:
• 3 Pin XLR out only
• Polarity (2-, 3+)
• Power by USB
• Optional external power: 9-12v DC
• Dimensions: 3.5” x 3” x 1.5”
• Weight: .2 lbs

 CD-Rom bundle includes:
 Compu 06 software
 Compu 04 software
 Compu 02 software
 Easy Stand alone software
 Magic 3D easy view software
 DMX to USB interface drivers

 System Requirements:
• Windows XP or VISTA 32-BIT ONLY (not 64-bit compatible)
• Laptop or desktop computer with USB port
• 1280 x 800 screen resolution
• 512MB RAM processing memory
• 1GB Storage memory
• 256Mb RAM video car
