Compu Live - Software Downloads

Features

ELA_2006.EXE, COMPU LIVE SOFTWARE, SEPT 29, 2009 EDITION (Windows XP and Vista 32-bit only Compatible) (Vista 64-Bit and Windows 7 not compatible)

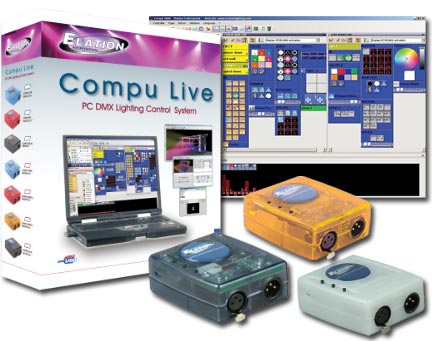

  Compu Live is a DMX lighting software to be used with any type of lighting fixture which utilizes USITT DMX-512 digital signal for communication. The Compu Live software has powerful tools to help in creating and generating scenes, cues, chases and shows easily. This Software also features pre generated movements, such as circles, figure eights, sweeps, stars and polygons, to assist in easy and fast programming.

  Compu Live also comes standard with a powerful 3D Visualization software named 3D Easy View which allows you to easily create a scenario of your imagination using Studio 3D object formatting. Basic Objects and truss structures are included to help in getting started right away, and lighting fixtures are instantly inputted as soon as you create a page in the Compu Live software. Basic version of 3D easy view is available on Compu 1024EC.
  For Advance 3D feature you must use the Compu 2048FC or 2048FC+ Advance features offer 3D video capture with positioning, 2D set up views, report management printing (which prints out wire frame CAD style images along with position and DMX channels charts).

  For the advanced lighting programmer, Compu Live also features Easy Show. This powerful software is created to help synchronize lighting scenes or cues to music, using a time line format. Easy Show is easily accessible via Compu Live when used in conjunction with Compu 2048FC or Compu 2048FC+.
  Compu Live Software is to be used with the following hardware modules: Compu 1024EC, Compu 2048FC, and Compu 2048FC+.

  HERE IS A DESCRIPTION OF THE MAIN DIFFERENCES BETWEEN THESE INTERFACES.

  COMPU 1024EC is will be your Basic Lighting controller. You can program and play back anything you want and use the Basic 3D visualizer features to set up your shows.
  Compu 1024EC allows you to use MIDI in or DMX in to use other devices as expansion wings. This option allows you to have an external console to access dimmers, shutters or color wheels. Compu 1024EC has one DMX out port and one DMX in port. Which give you 512 output channels and 512 input channels.
  However you can sacrifice the 512 input channels and convert to an extra 512 out put channels using a female to female barrel or gender changer for a total of 1024 DMX output channels. Additionally Compu 1024EC will give you an extra 1024 Art-Net DMX channels through your Ethernet output using an Art-net DMX hub.

  COMPU 2048FC is the full version Lighting controller. You can do everything available with the 1024EC, however you will have the full version 3D visualizer plus the use and integration of Easy show. A time line program used to synchronize a light show to music. Compu 1048FC allows integration of SYMPTE TIME CODE as well of the use of your computers internal clock for synchronized or timed shows. Compu 2048FC has one DMX out put and one DMX in put. Which give you 512 output channels and 512 input channels.
  However you can sacrifice the 512 input channels and convert to an extra 512 out put channels using a female to female barrel or gender changer for a total of 1024 DMX output channels. Additionally Compu 2048FC will give you an extra 2048 Art-Net DMX channels through your Ethernet output using an Art-net DMX hub.

  COMPU 2048FC+ has the same features of Compu 2048 however offers you 20,480 DMX channels using Art-Net DMX.

Resources

Guides/ Manuals

Related Categories

Specifications

Minimum System Requirements:

• Windows XP or VISTA 32-BIT ONLY

• Laptop or desktop computer with USB2.0 port
• Windows ME, XP or any up-to-date version
• 800x600 screen resolution
• 256Mb Memory
• Clock frequency: 800Mhz
• 64Mb RAM video card to use the “3D software” supporting Microsoft DirectX 9.0

 Best Performance System Requirements:

• Windows XP or VISTA 32-BIT ONLY
• Laptop or desktop computer with USB2.0 port
• Windows XP or any up-to-date version
• 1280x1024 screen resolution
• 512Mb Memory
• Clock frequency: 1.5Ghz
• 256Mb RAM video card to use the “3D software” supporting Microsoft DirectX 9.0
 Compu 06 is considered a beta version to which there is no support.




 For sales questions, please call 866-245-6726, and ask for sales.
 For use with windows XP or ME or Vista 32-bit only. For Windows 98 or 2000, you must use Compu 02 edition.
