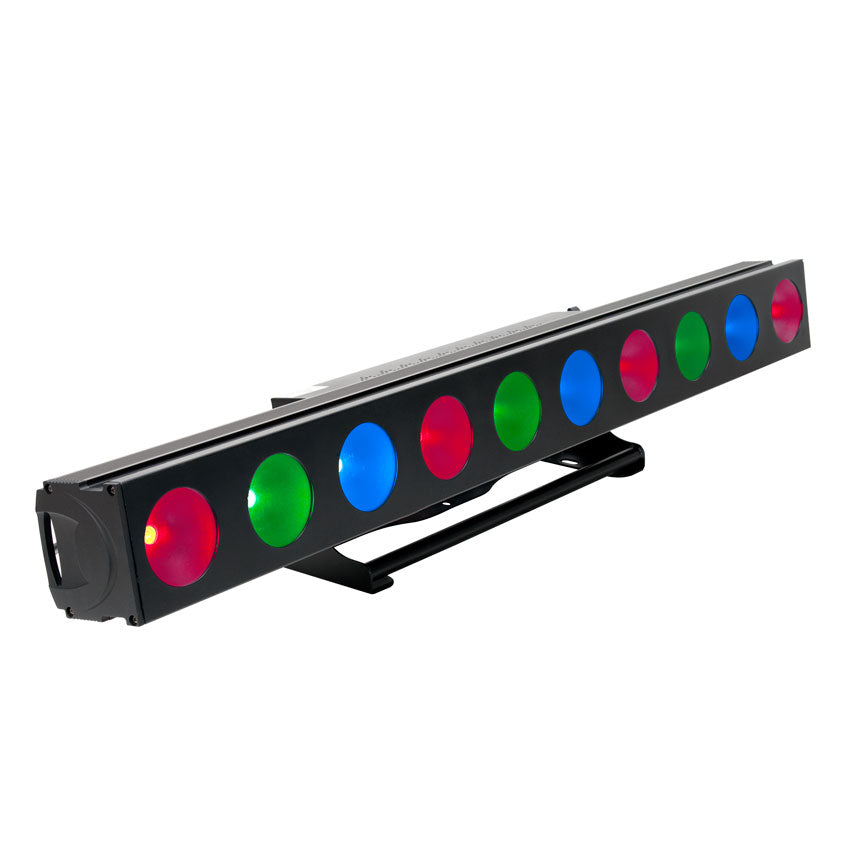

CUEPIX Batten

Features

 82° Beam 106° Field Angles
 ArtNet™ and Klingnet™ Support
 RDM - Remote Device Management
 Individual COB Module Control
 Variable Dimming Curve Modes
 Multiple Unit Power Linking
 Rugged Die-Cast Aluminum Exterior
 Flicker Free Operation for TV and FILM

 SEE ALSO

 CUEPIX SERIES (click for more info)


Resources

User Manual

Vectorworks Symbol

CAD Drawing

Dimensional Drawing

Photometric Data

Specifications

SOURCE
 (10) 30W 3-in-1 COB LEDs
 100,000 Hour Average LED Life

 PHOTOMETRIC DATA
 3,890 LUX 361 FC @3.3’ (1m) (82° Full ON)
 1,237 LUX 115 FC @6.6’ (2m) (82° Full ON)
 613 LUX 57 FC @9.8’ (3m) (82° Full ON)
 345 LUX 32 FC @13.1’ (4m) (82° Full ON)
 227 LUX 21 FC @16.4’ (5m) (82° Full ON)

 EFFECTS
 Strobe and Chase Effects
 Individual COB Module Control
 Variable and Selectable Dimming Curves

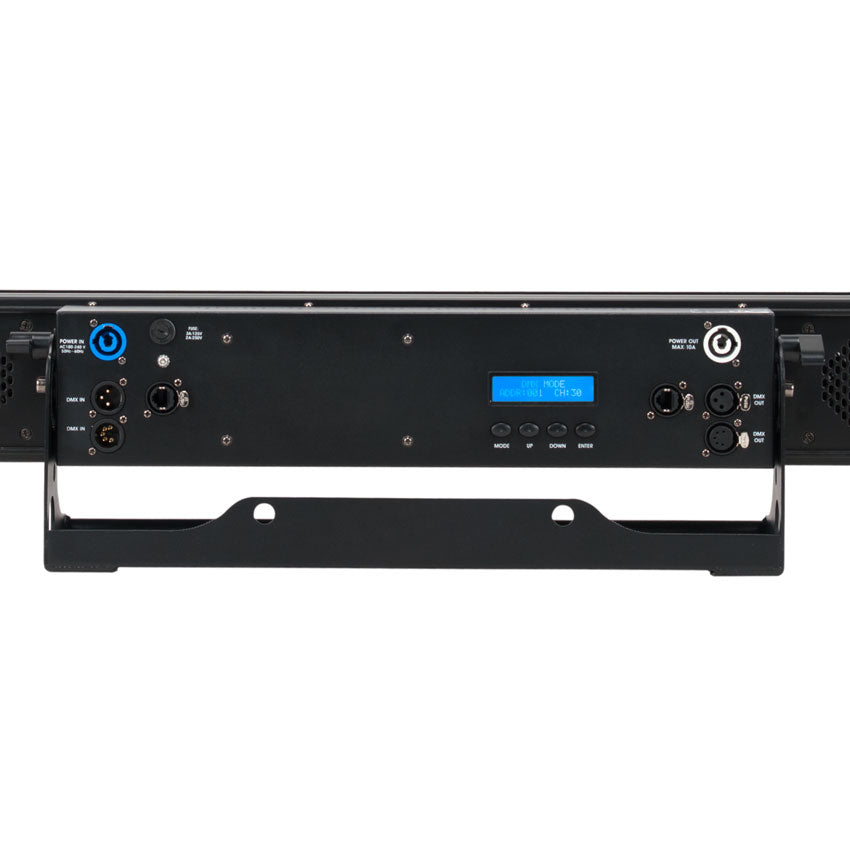

 CONTROL / CONNECTIONS
 8 DMX Channel Modes (3 / 4 / 6 / 9 / 30 / 33 / 36 / 60)
 4 Button Control Panel and LCD Menu Display
 ArtNet™ + KlingNet™ Protocol Support
 RDM (Remote Device Management)
 (2) RJ45 Ports
 3pin and 5pin DMX In/Out
 powerCON Power In/Out

 SIZE / WEIGHT
 Length: 43.3” (1100mm)
 Width: 6.4” (121mm)
 Vertical Height: 6.8” (172mm)
 Weight: 21.0 lbs. (9.5 kg)

 ELECTRICAL / THERMAL
 AC 110-250V - 50/60Hz
 312W Max Power Consumption
 Power Link Up To (5) Units at 120V (10) Units at 240V
 5°F to 113°F (-15°C to 45°C)

 APPROVALS / RATINGS
 CE | IP20

 INSTALLATION
 Rigging: Integrated Rigging Bracket
 Working Position: Any (360°)

 INCLUDED ITEMS
 powerCON Cable

 OPTIONAL ACCESSORIES:

 CLAMPS (click for more info)


 PRO CABLES (click for more info)

 DMX SOLUTIONS (click for more info)

 Specifications and documentation subject to change without notice.
