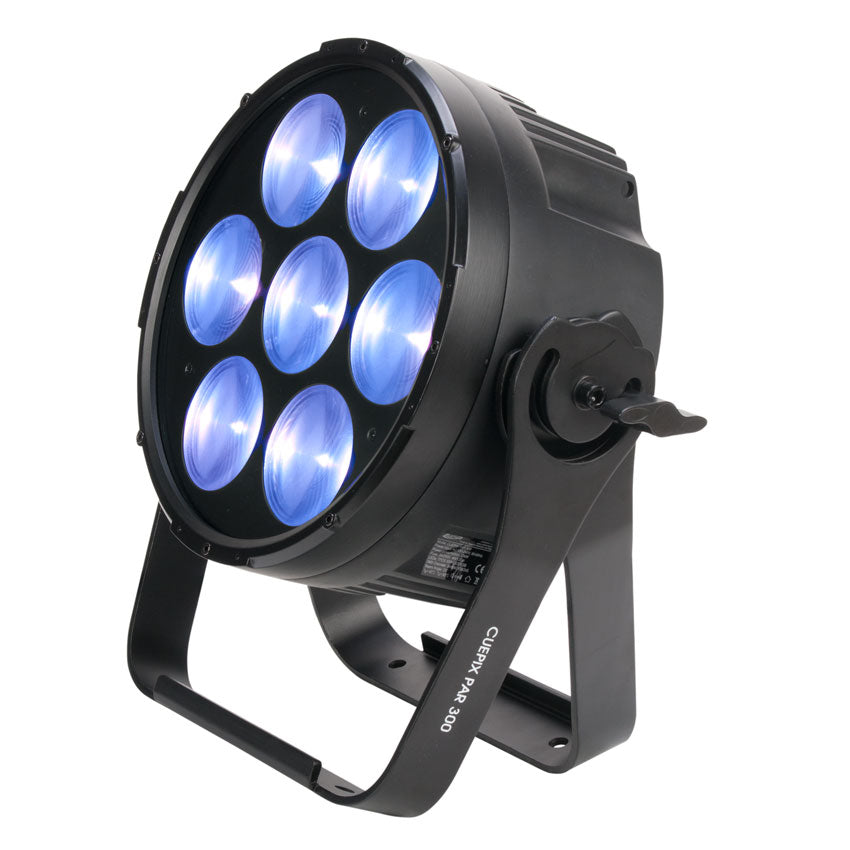

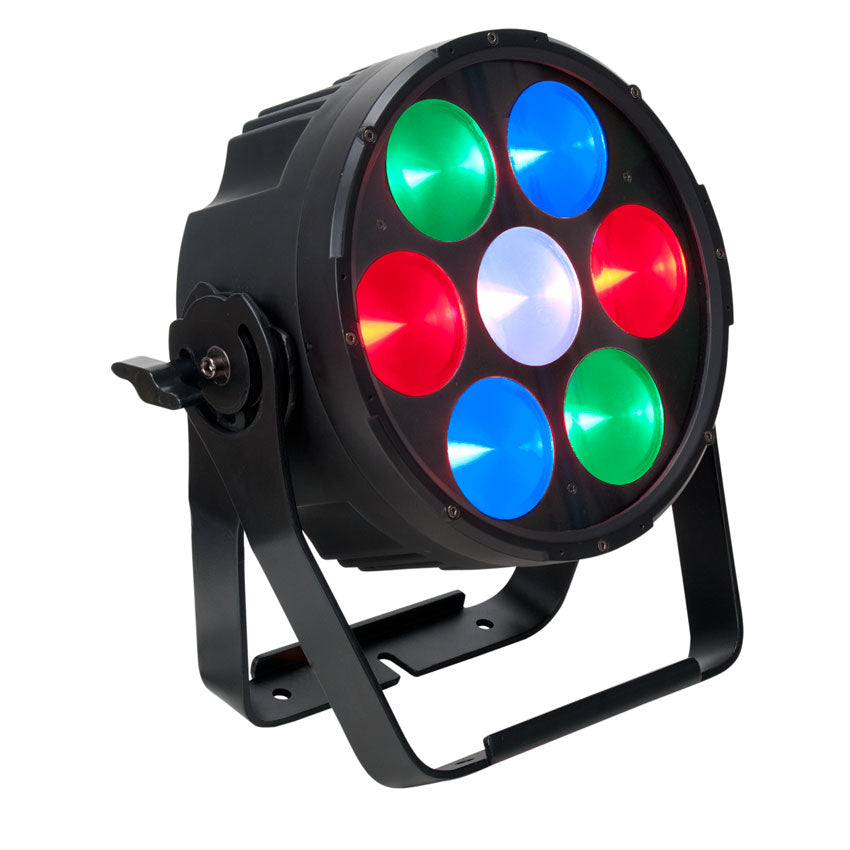

CUEPIX PAR 300

Features

 15° Beam / 25° Field Angles
 ArtNet™ and Klingnet™ Support
 RDM - Remote Device Management
 Individual COB Module Control
 Variable Dimming Curve Modes
 Multiple Unit Power Linking
 Rugged Die-Cast Aluminum Exterior
 Flicker Free Operation for TV and FILM

Resources

Specifications Sheet

CAD Drawing

Vectorworks Symbol

User Manual

DMX Traits

Photometric Data

Dimensional Drawing

Photometric IES File

Specifications

SOURCE
 (7) 30W 3-in-1 COB LEDs
 100,000 Hour Average LED Life

 PHOTOMETRIC DATA
 24,200 LUX 2,2248 FC @3.3’ (1m) (15° Full ON)
 7,110 LUX 661 FC @6.6’ (2m) 15° Full ON)
 3,230 LUX 300 FC @9.8’ (3m) (15° Full ON)
 1,925 LUX 179 FC @13.1’ (4m) (15° Full ON)
 1,250 LUX 116 FC @16.4’ (5m) (15° Full ON)

 EFFECTS
 Strobe and Chase Effects
 Individual COB Module Control
 Variable Dimming Curve Modes

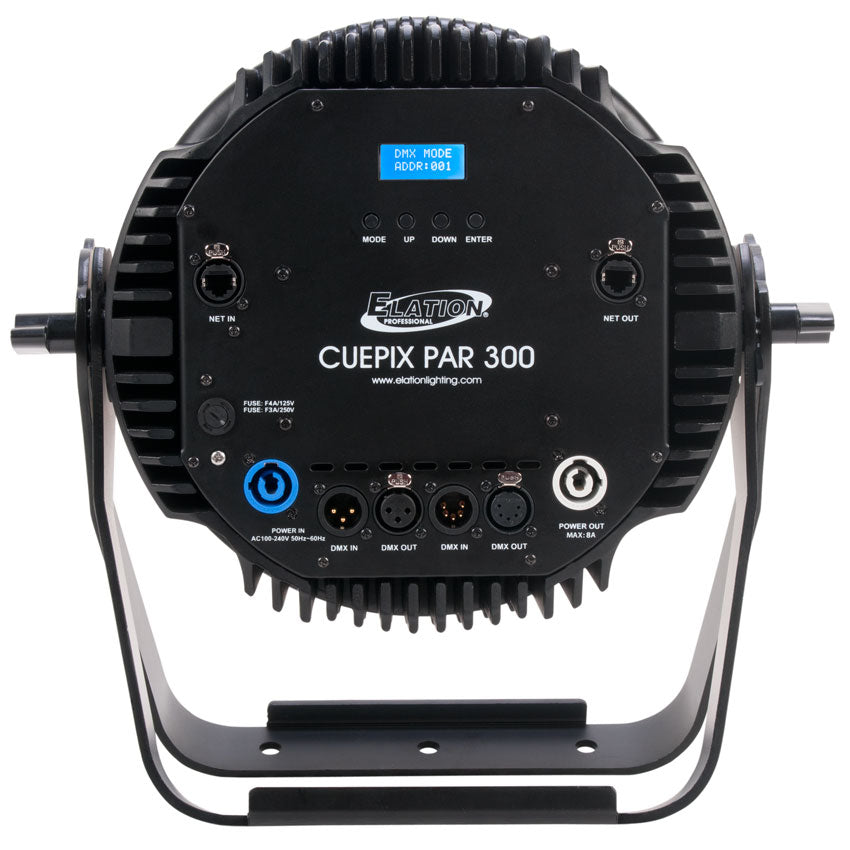

 CONTROL / CONNECTIONS
 6 DMX Channel Modes (3 / 4 / 5 / 9 / 21 / 24)
 4 Button Control Panel and LCD Menu Display
 ArtNet™ + KlingNet™ Protocol Support
 RDM (Remote Device Management)
 (2) RJ45 Ports
 3pin and 5pin DMX In/Out
 powerCON Power In/Out

 SIZE / WEIGHT
 Length: 14.4" (365mm)
 Width: 5.8" (147mm)
 Vertical Height: 14.4" (365mm)
 Weight: 17.0 lbs. (7.7 kg)

 ELECTRICAL / THERMAL
 AC 110-250V - 50/60Hz
 Max Power Consumption: 300W
 68°F to 113°F (20°C to 45°C)

 APPROVALS / RATINGS
 CE | IP20

 INSTALLATION

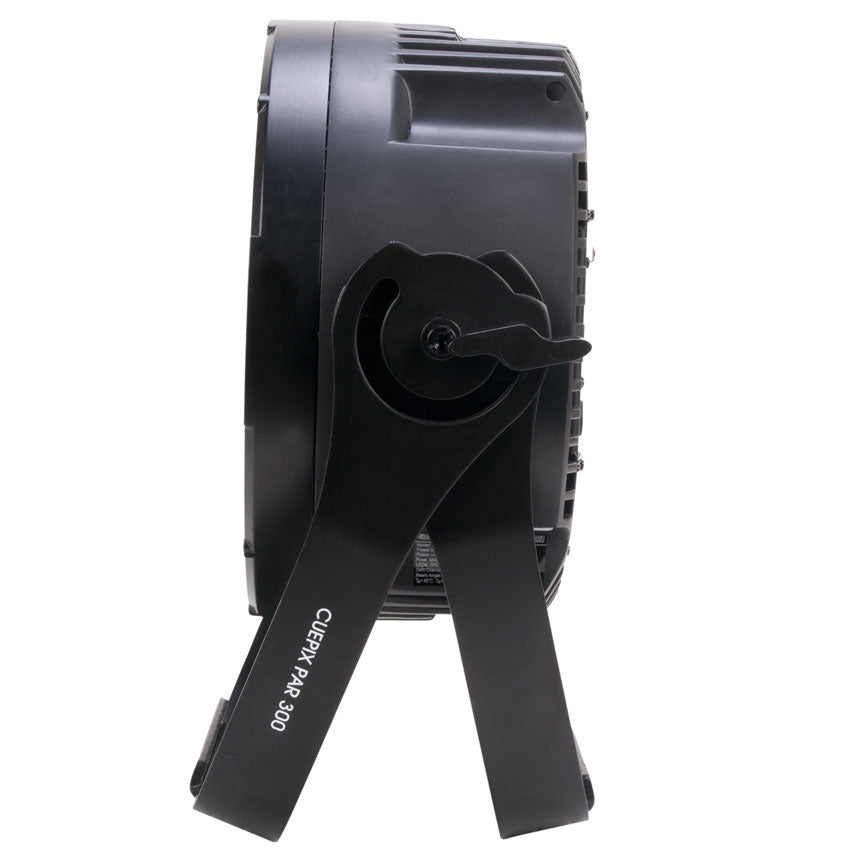

 Rigging: Integrated Rigging Bracket
 Working Position: Any (360°)

 INCLUDED ITEMS
 powerCON Cable

 OPTIONAL ACCESSORIES:

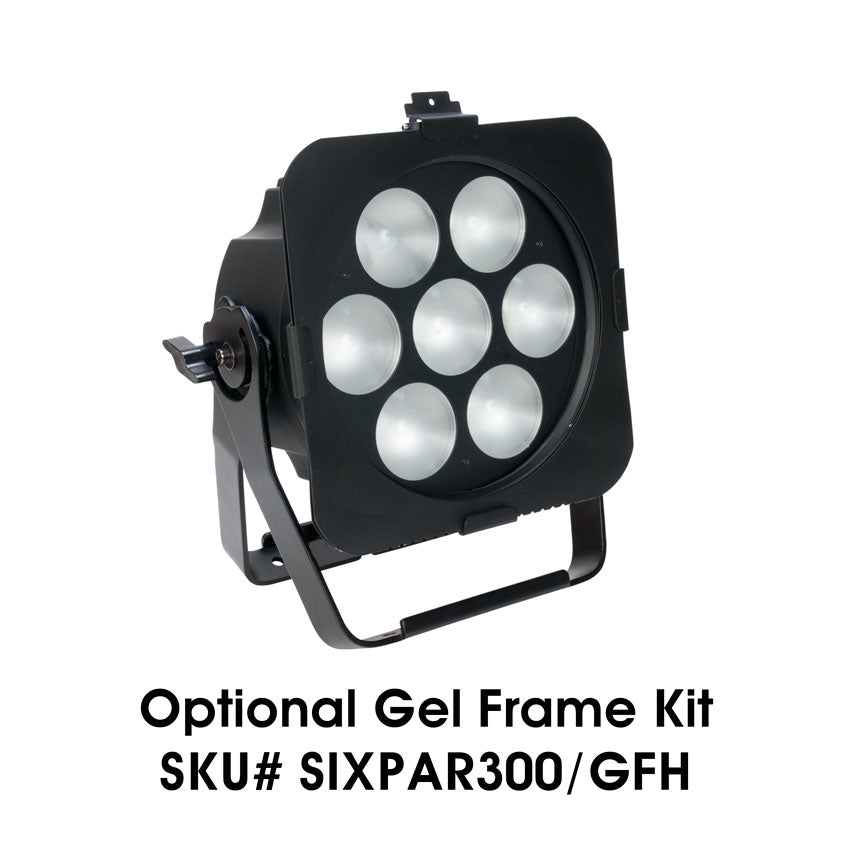

 SIXPAR300/GFH - Gel Frame and Holder Kit



 Specifications and documentation subject to change without notice.
