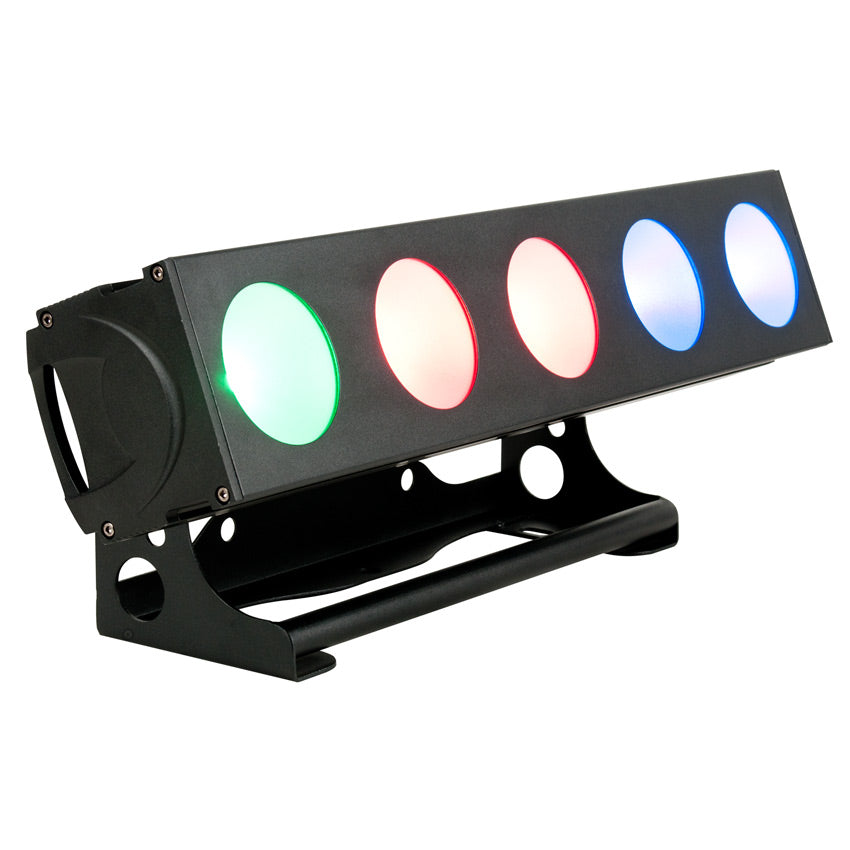

CUEPIX Strip Tri

Features

60° Beam Angle RGB Bar Luminaire
 (5) Pixel Controlled 30W 3-in-1 RGB COB LEDs
 Strobe and Zone Chase Effects
 Selectable Dimming Curve Effects
 DMX and RDM (Remote Device Management) Support
 Flicker Free Operation for Broadcast TV and FILM
 Integrated Rigging Bracket
 Optional 15° Lens Kit Available

Resources

Specifications Sheet

CAD Drawing

User Manual

Photometric IES File

DMX Traits

Vectorworks Symbol

Dimensional Drawing

Photometric Data

Photometric Test Report

Specifications

SOURCE
 (5) 30W RGB 3-in-1 COB LEDs
 100,000 Hour Average Lamp Life

 PHOTOMETRIC DATA (60° Full ON)
 4,170 LUX 387 FC @3.3’ (1m)
 1,150 LUX 107 FC @6.6’ (2m)
 540 LUX 50 FC @9.8’ (3m)
 253 LUX 24 FC @13.1’ (4m)
 157 LUX 15 FC @16.4’ (5m)

 EFFECTS
 Individual Pixel Control
 Strobe and Zone Chase Effects
 Selectable Dimming Curves

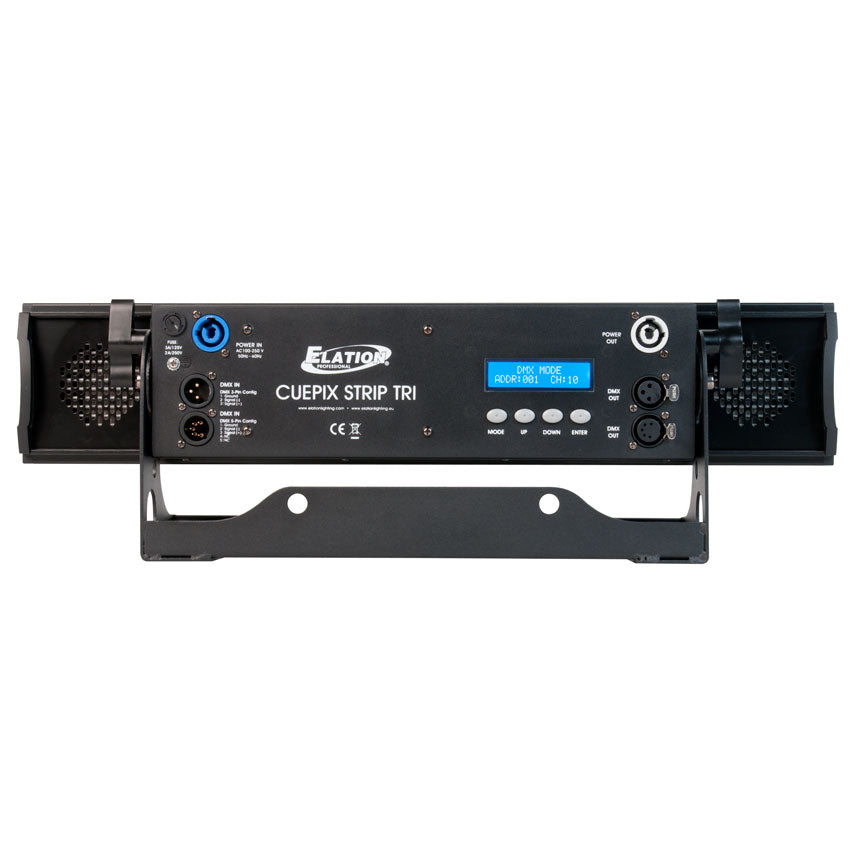

 CONTROL / CONNECTIONS
 (5) DMX Channel Modes (3 / 6 / 7 / 15 / 19)
 RDM (Remote Device Management)
 4 Button Touch Control Panel
 3pin/5pin DMX In/Out
 powerCON Power In/Out

 SIZE / WEIGHT
 Length: 21.6” (550mm)
 Width: 6.4” (161.2mm)
 Vertical Height: 6.8” (172.5mm)
 Weight: 13.9 lbs. (6.3 kg)

 ELECTRICAL / THERMAL
 AC 100-240V - 50/60Hz
 150W Max Power Consumption
 14°F to 113°F (-10°C to 45°C)

 APPROVALS / RATINGS
 CE | cETLus | IP20

 INCLUDED ACCESSORIES
 powerCON Cable

 OPTIONAL ACCESSORIES:

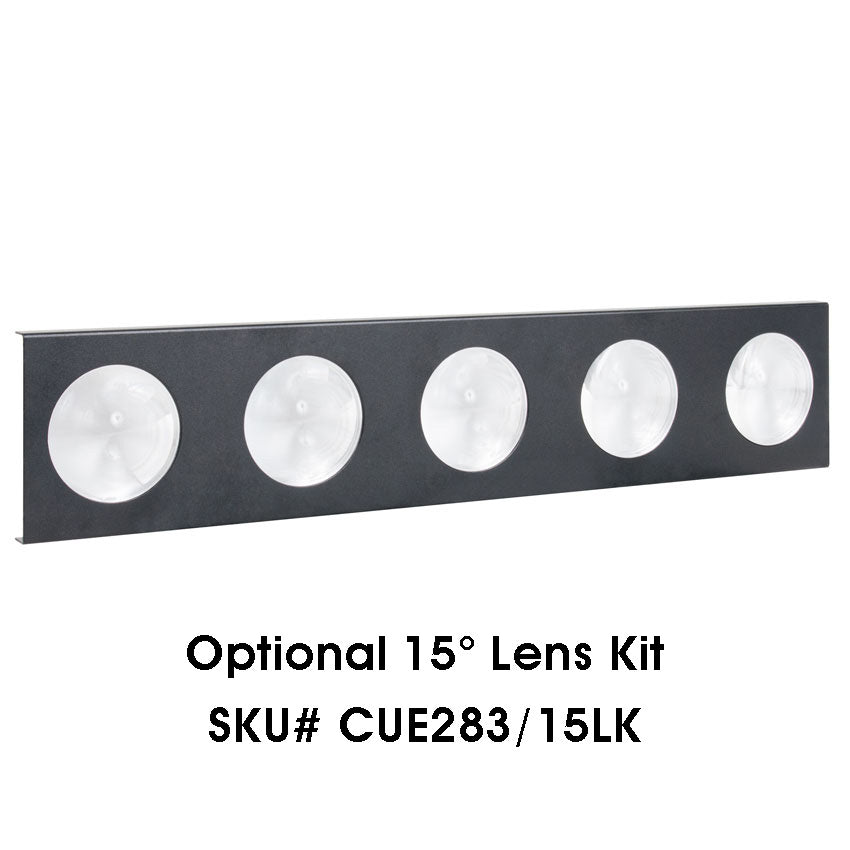

 15 DEGREE LENS KIT SKU# CUE283/15LK


 Specifications and documentation subject to change without notice.
