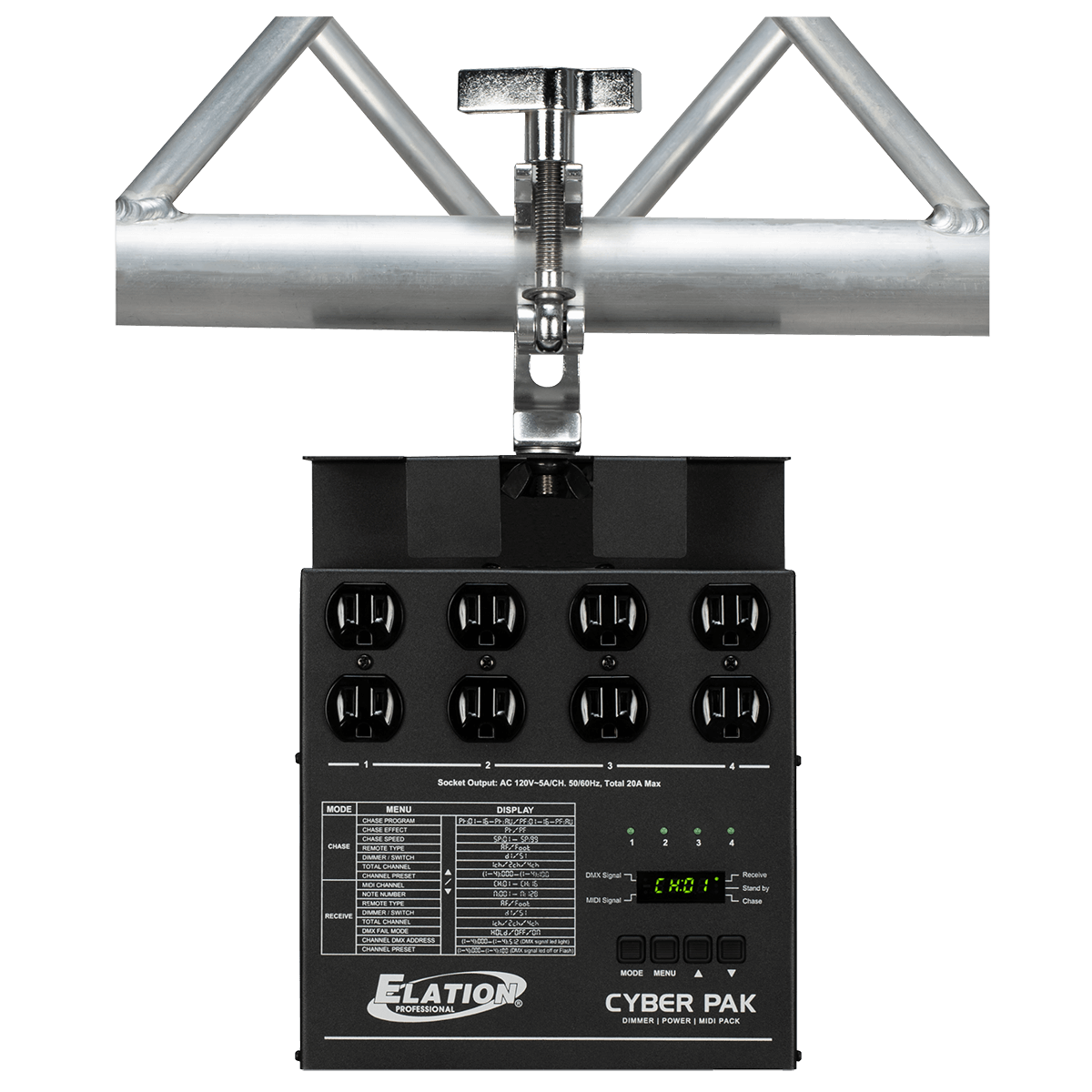

CYBER PAK

Features

Have you needed that elation control system with easy controls? Then look no further than the Cyber Pak. It offers three modes: Chaser Mode, Dimmer Mode, and MIDI Mode that will give you many options.

The Chaser mode includes 4-channel chase controller with 10 built-in chase programs so you can start right out of the box. The Dimmer mode comes with 1,2, or 4-channel dimmer pack with 4 individual DMX channels. The MIDI mode allows the device to receive MIDI notes 001 - 128. All of the chase programs can be set to fade-in or fade-out.

The digital displays show the current program and will make it easy to control the show. There are MIDI In and MIDI through connection available on the Cyber Pak. This Cyber Pak is perfect for that entertainer that needs complete control over all their lighting and entertainment equipment.

Resources

Specification information

Guides/ Manuals

Drawings

Related Categories

Specifications

FEATURES:
• 4-Channel Dimmer/Relay/MIDI Pack
• Individual DMX Address for each Channel
• Selectable Modes (Dimmer or Switch Pack)
• (16) Internal Chase Macros with Fade In/Out
• DMX Fail (loss of signal) Settings: HOLD/OFF/ON
• Power Failure Memory

DIMMER MODE:
• (4) Channel Dimmer (1, 2 or 4 Channel Option)
• Individual Channel Assignment & Output Limiter

RELAY MODE:
• 4-Channel Relay (1, 2 or 4 Channel Option)
• Individual Channel Assignment

CHASER MODE:
• 4-Channel Chase Controller
• 16 Internal Chase Programs
• Adjustable Fade Times

MIDI MODE:
• Receives MIDI Notes 001-128 Program
• MIDI In & MIDI Through Connections


CONTROL / CONNECTIONS:
• Two 3-prong Edison Sockets per Channel (8 total)
• 5-pin MIDI IN/OUT Ports
• 5-pin XLR IN/OUT Ports

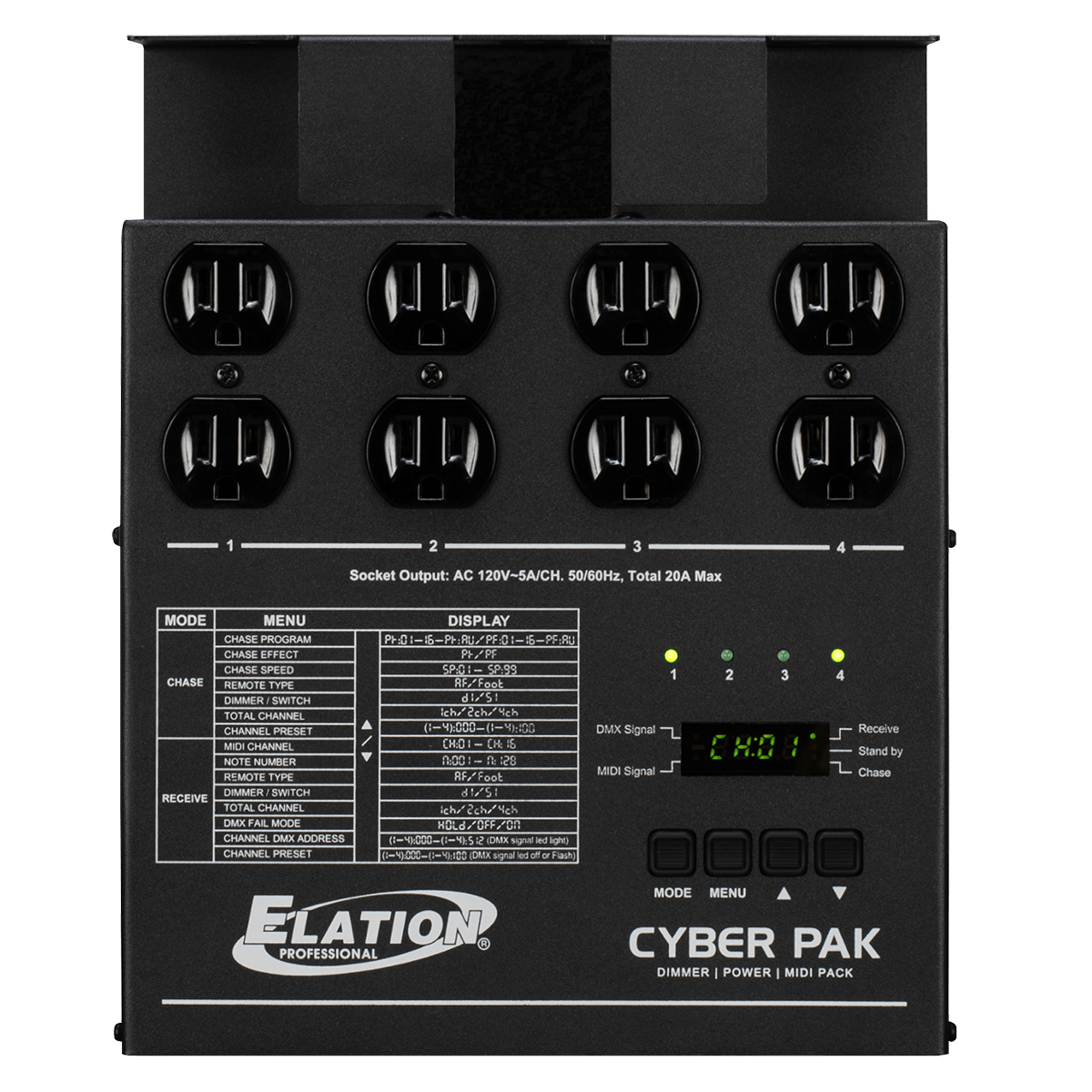

• 4-Button LED Display Control Panel
• Master Power Switch

 SIZE / WEIGHT:
 • Length: 8.3” (212mm)
 • Width: 10.4” (265mm)
 • Vertical Height: 3.0” (75mm)
 • Weight: 8.0 lbs. (3.6kg)

 ELECTRICAL / THERMAL:
 • AC 120V 50/60Hz 20A Max
 • 2,400W Max Power Consumption (600W per channel)

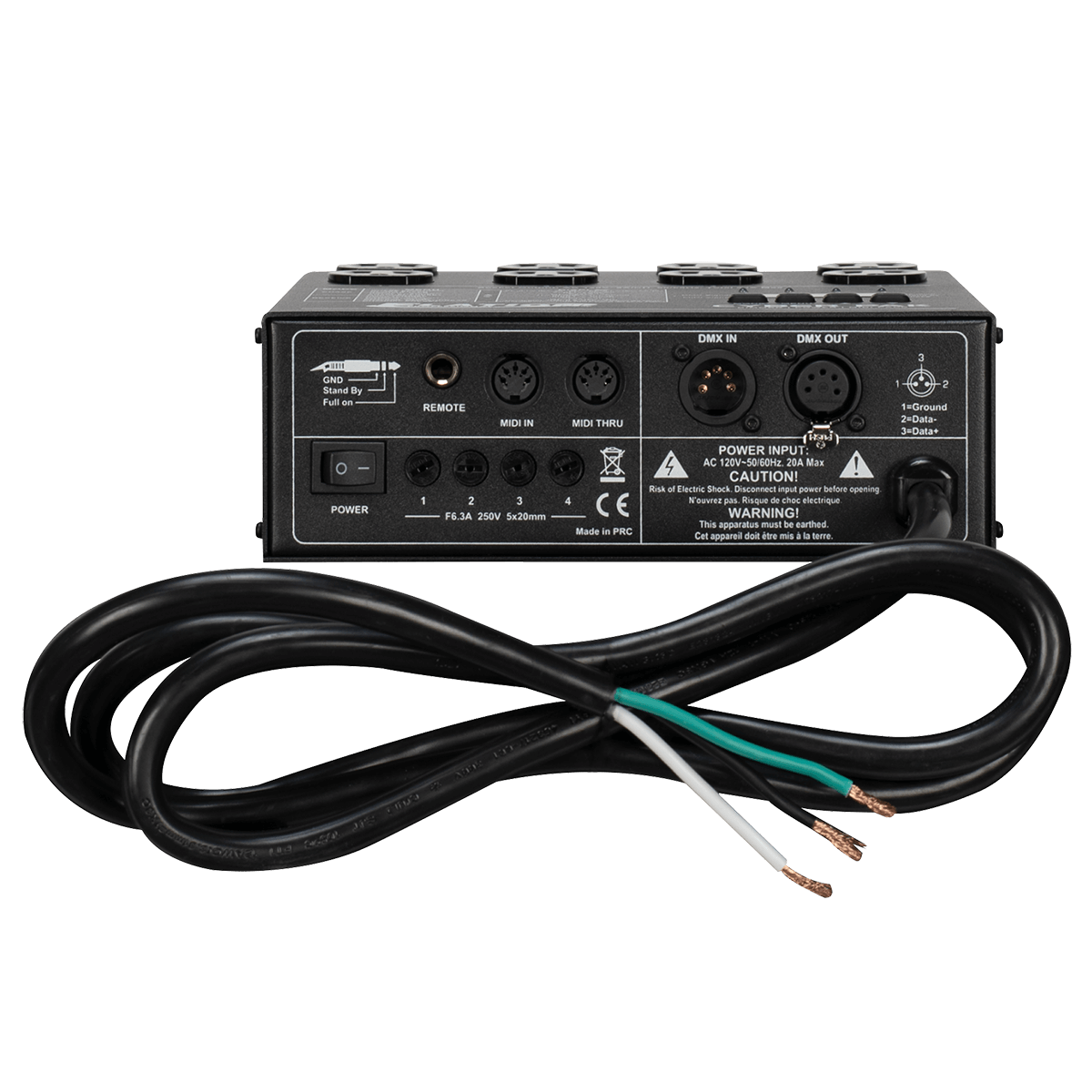

 NOTE: Main Power Cord is Bare Wire, 3-Prong Connector Not Included.

 APPROVALS / RATINGS:
 • CE | cETLus

Specifications and documentation subject to change without notice.
