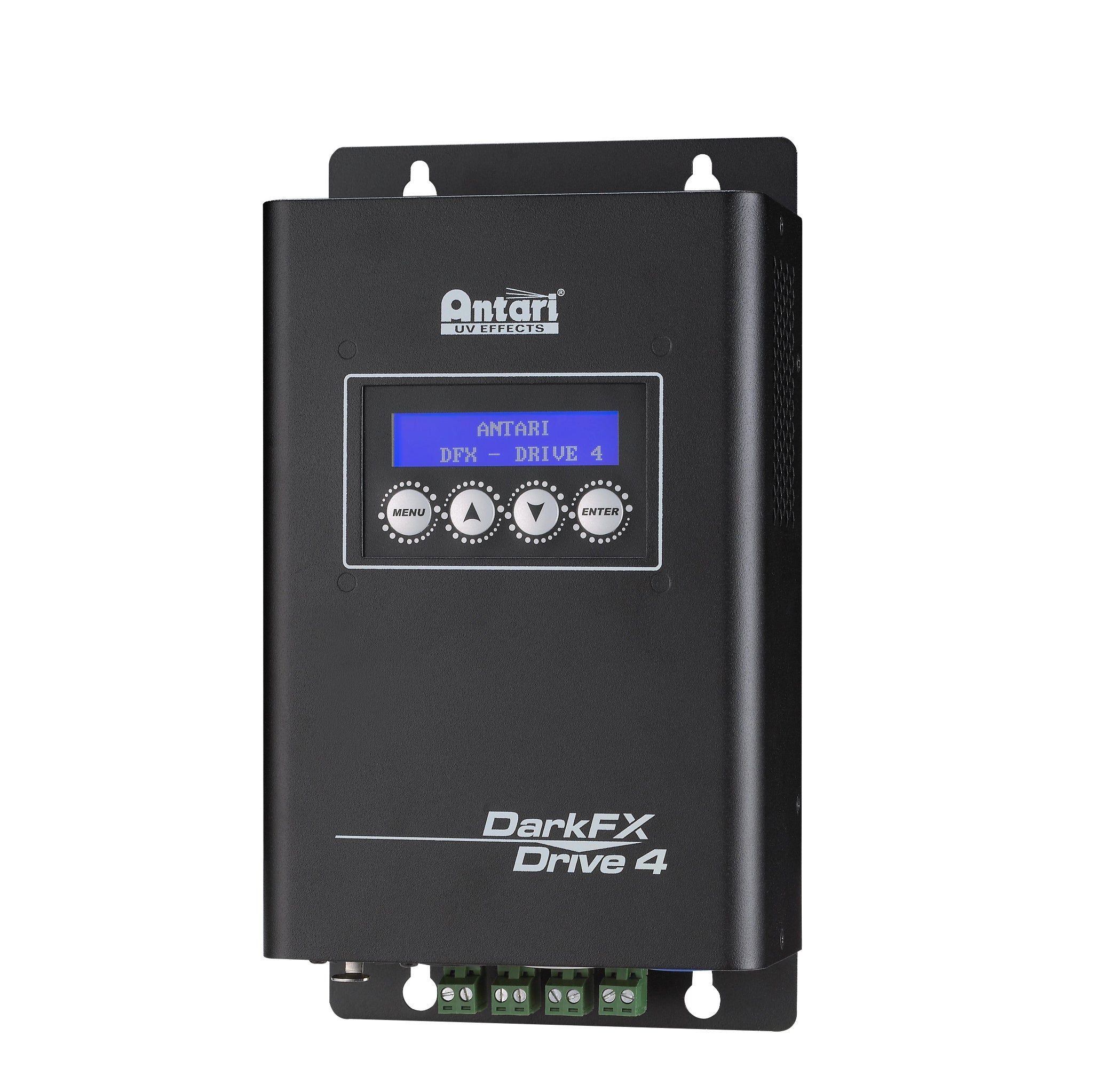

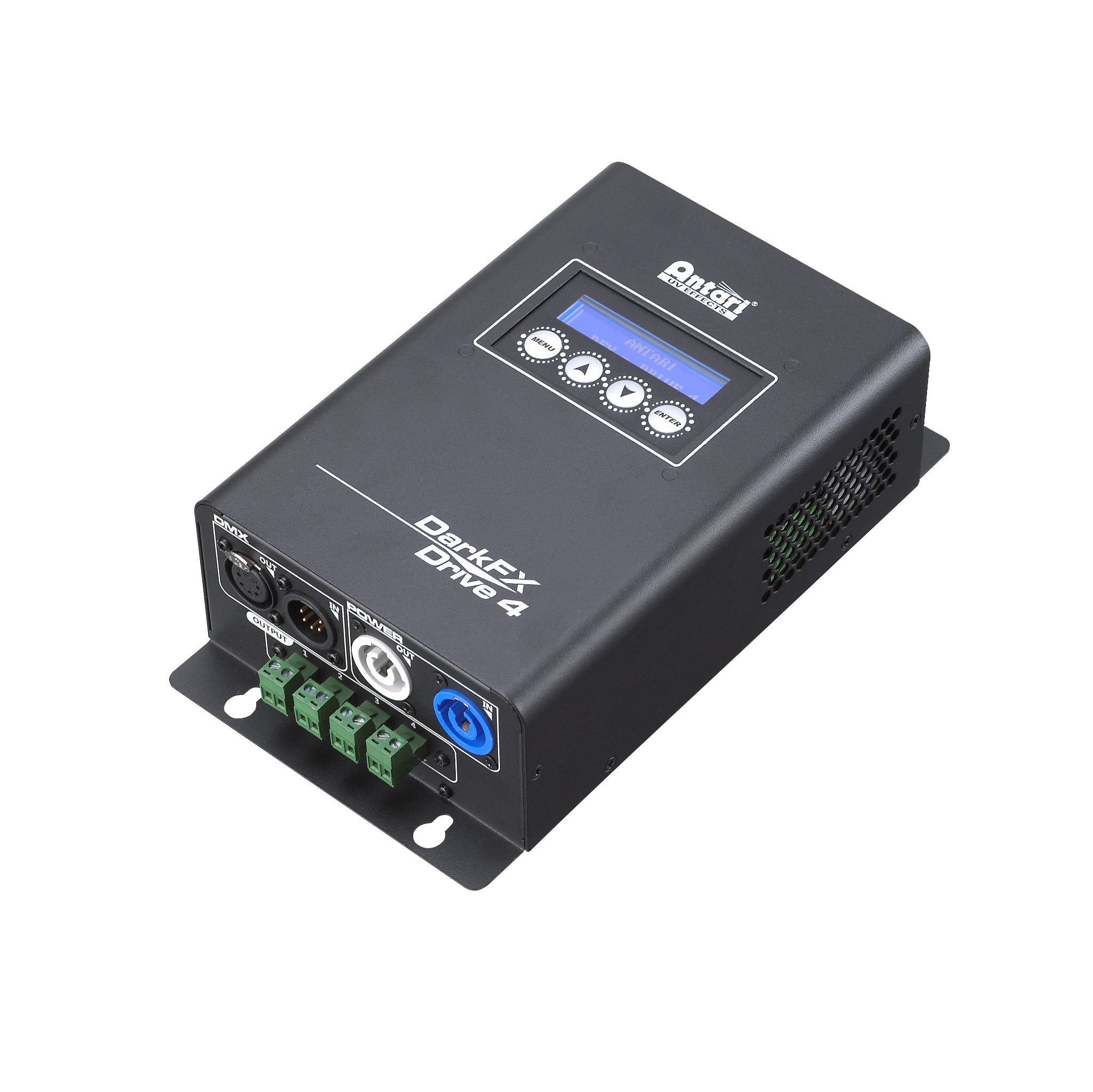

DarkFX Drive 4

Features

DMX Controller for DarkFX Strip 510, Strip 510IP, and Spot 510IP
2 DMX Channels
0-20Hz Strobe Effect
Variable Dimming Curve Modes
Supports Up To (4) Fixtures
Multi-Voltage Universal Auto Switching Power Supply (100-240V 50-60Hz)
(4) Keyhole Slots for Easy Surface Mounting

Resources

Specifications Sheet

User Manual

Specifications

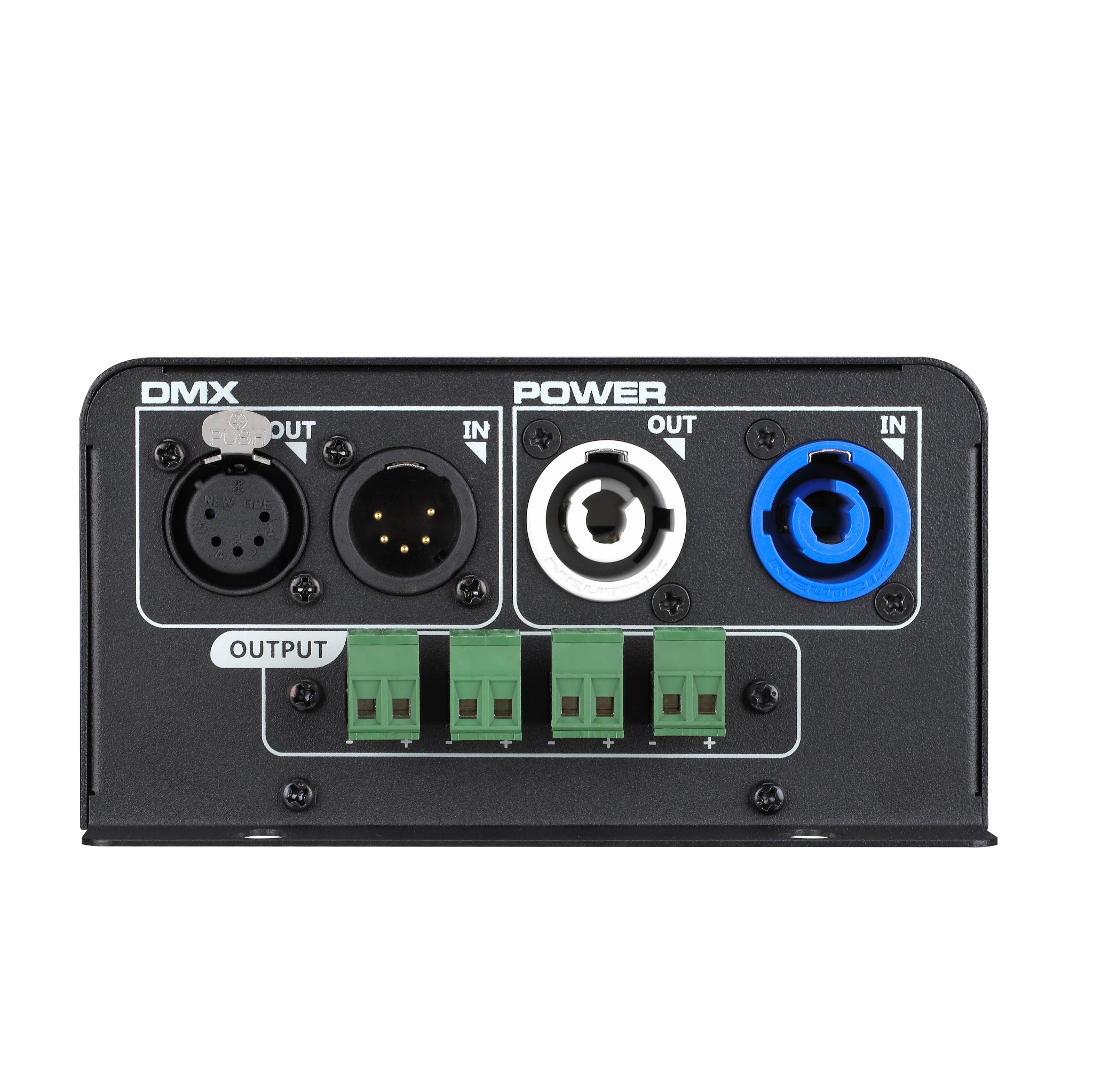

CONTROL / CONNECTIONS
(2) DMX Channel Modes (1 /2)
4 Button 16 Digit Control Display
(4) 2 Bare Wire Terminal Blocks
5pin DMX In/Out
powerCON Power In/Out


SIZE / WEIGHT
Length: 8.5” (216mm)
Width: 5.3” (135mm)
Vertical Height: 2.9” (72.4mm)
Dry Weight: 3.6 lbs. (1.6 2kg)


ELECTRICAL
AC 100-240V - 50/60Hz
58W Max Power Consumption @110V
65W Max Power Consumption @220V


APPROVALS / RATINGS
CE | IP20



Specifications and documentation subject to change without notice.
