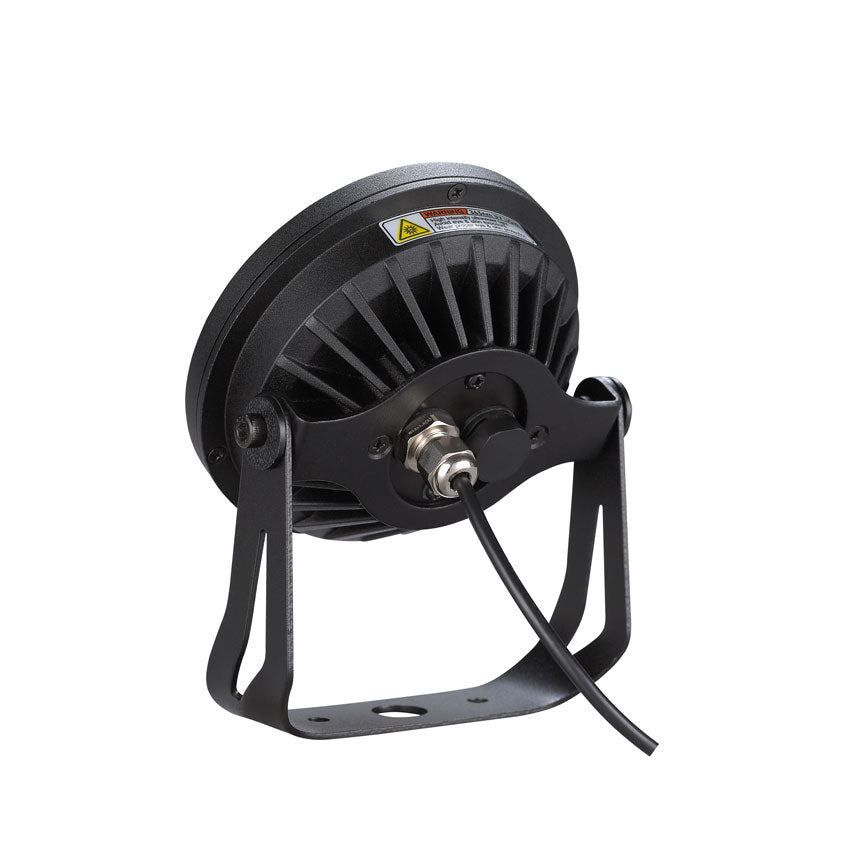

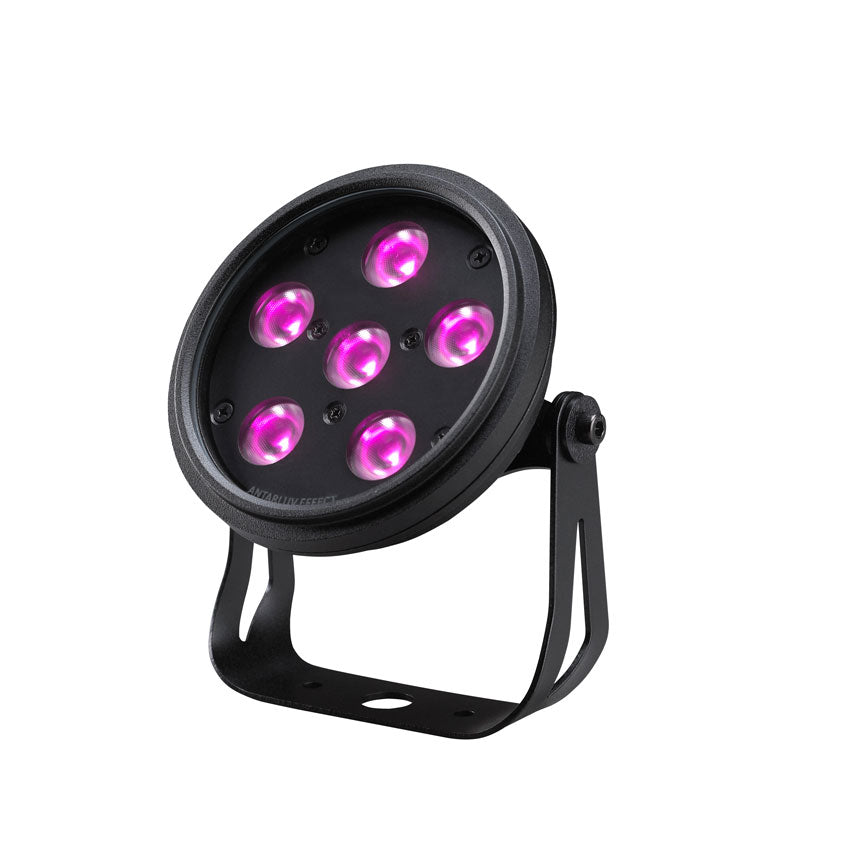

DarkFX Spot 510IP

Features

IP65 Outdoor Rated High Efficiency UV LED Spot
15 Degrees Narrow Beam Angle

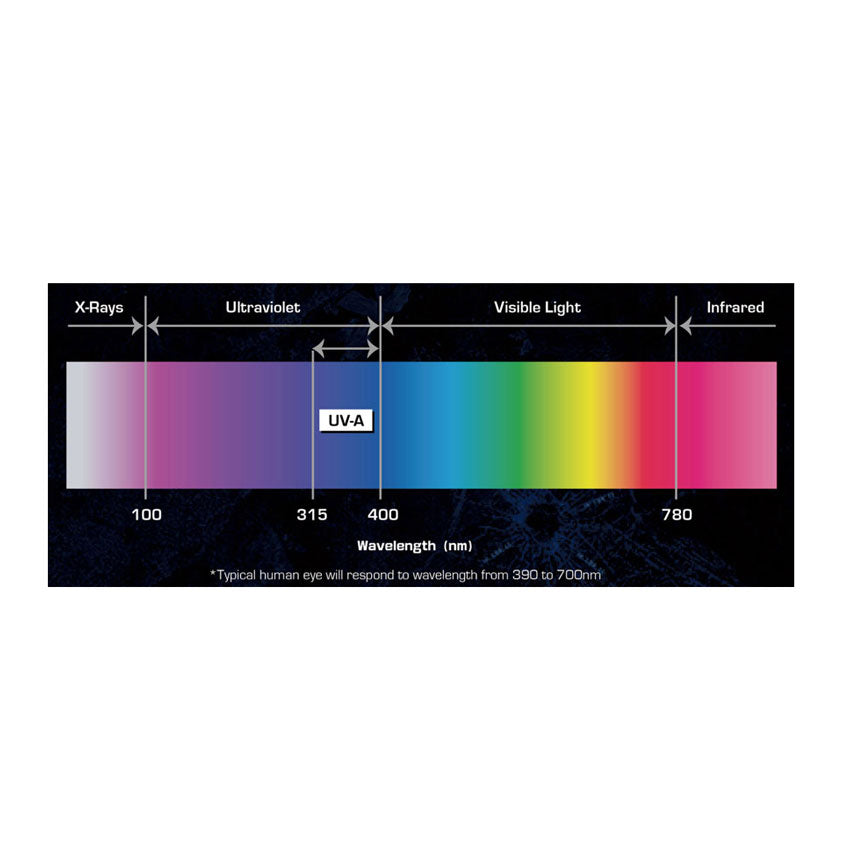

365nm Peak Wavelength with Minimum Visible Light
4500mW High Output at Full Intensity
Special Optics to Prevent Wear Degradation from High UV Exposure
Flicker Free Operation for TV and FILM

Resources

Specifications Sheet

User Manual

Specifications

SOURCE
(6) 1.9W High Power UV LEDs
20,000 Hour Average LED Life*
 *LED Life may vary depending on several factors including but not limited to:
 Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA
Optics: 15 Degrees
Peak Wavelength: 365nm
Radiant Flux Output: 4500 mW


CONTROL / CONNECTIONS
DarkFX Drive 4 Power/DMX Fixture Driver (sold separately)
Cable Connection: 22 AWG Bare Wire Power/Data Combo Cable


SIZE / WEIGHT
Length: 4.4” (110.5mm)
Width: 1.96” (46.8mm)
Vertical Height: 5.3” (134.25mm)
Dry Weight: 0.71 lbs. (1.6 kg)


ELECTRICAL
DC 20-24V
12W Max Power Consumption


APPROVALS / RATINGS
CE | IP65



Specifications and documentation subject to change without notice.
