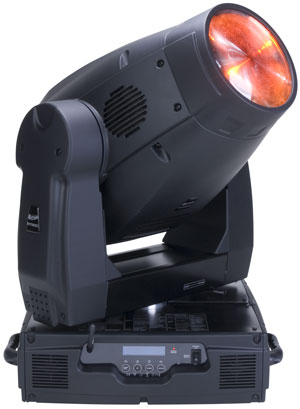

Design Beam 1200C
Design Beam 1200C
Discontinued
SKU# DESIGN BEAM 1200C
Features
. CMY + 8 colors + 6/7 gobos
. 1200 Watt Hybrid VNSP-Beam / Wash Moving Head
. Hybrid Spot / Wash In One
. 6.7° Very Narrow Beam Angle
. Modular Construction
. EWDMX + RDMX + Fan & Lamp Control
. Variable Frost, Prism
Specifications
Colors
. CMY Color Mixing + Variable CTO
. 8 static / replaceable dichroic colors including CTB and UV
Gobos
. 6 Rotating / indexing gobos (replaceable)
. 7 Static replaceable gobos
Special Effects
. Rotating / indexing 3-facet prism
. Variable Frost for hard edge BEAM or WASH effect
Shutter/Dimmer
. Strobe effect (1-18) flashes per second
. Continuous mechanical dimmer 0-100%
Light Source
. 47,040 Lux / 4,370 FC @ 32.8 feet / 10 meters
. Lamp life: 750hrs 7,500°k, CRI 85
. Lamp: Phillips MSR1200 SA/DE lamp
Optical System
. Very tight 6.7° beam angle with extreme output, great ACL effect!
. 3 phase motors for fast movement
. Extreme light output - over 850,000 Lux at 2.5 meters
Movement
. Pan / Tilt Lock - 630° or 540° Pan (selectable) x 265° Tilt
. Pan/Tilt lock
Control
. 32 DMX channels extended mode,
21 DMX channels standard mode
19 DMX channels basic mode

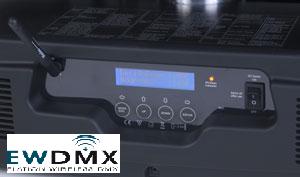

. Digital LCD blue / white menu display
. DMX Record function on-board
. EWDMX + RDMX + Fan & Lamp Control
. 16 Bit Movement and Color fading
. 16 bit mode
. 3 User settable personality DMX traits
Operation Parameters
. DB Rating - 56.3db @ 0.91m
. Compact case design (575 size case)
Power Supply
. Electronic ballast
. Voltage: 208-240v / 50-60hz
. Power consumption: 7.4A 1,536W

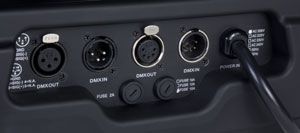

Connectors
. 3 pin or 5 pin DMX in/out
Dimensions and Weight
. Dimensions (L x W x H): 18.5” x 18.2” x 20.3” / 470 x 367 x 657.5mm (Head up)
. Weight: 78.5 lbs / 30 kg
Approvals
. cETLus approved
