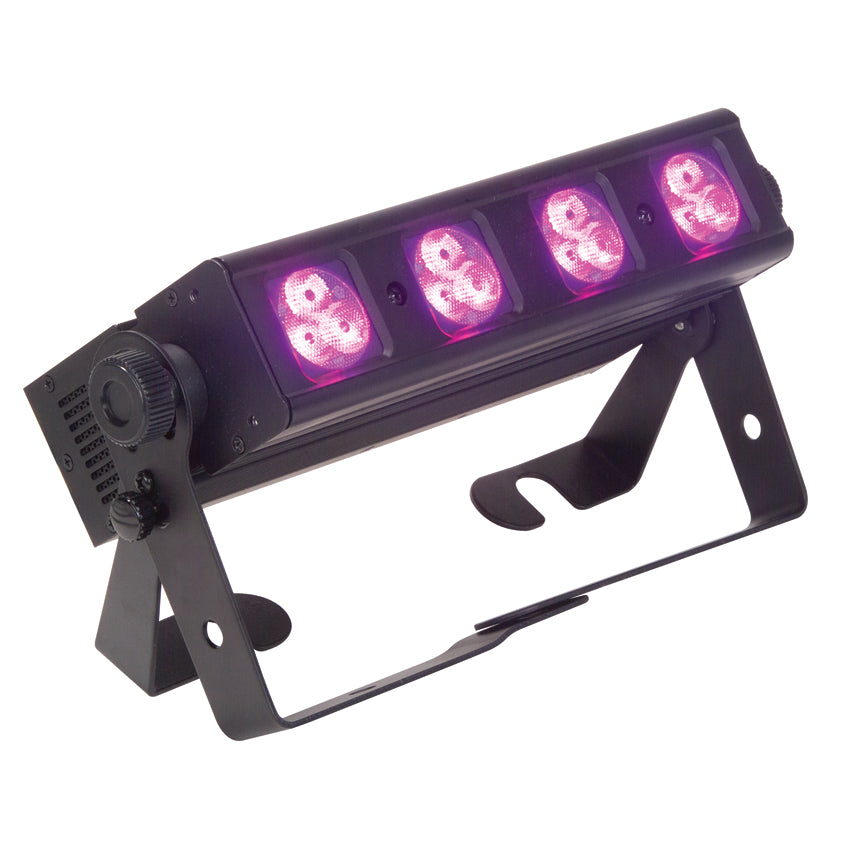

Design LED 36 Tri-Brick
Features
FEATURES
• 12 x "Tri-Color" 3W LEDs - (Uses 3-in-1 TRI LED system for superior color mixing - No three color shadows)
• Seamless RGB color mixing
• Infinite Color possibilities
• Compact Design
• Standard 45° Lens Kit, 48° Beam Angle
• 2720 LUX @ 1 meter
• 350 LUX @ 3 meters
• Long Life L.E.D. (rated at 100,000 Hours)
• Built-in Power Supply and DMX 512 Control
• 12 x "Tri-Color" 3W LEDs - (Uses 3-in-1 TRI LED system for superior color mixing - No three color shadows)
• Seamless RGB color mixing
• Infinite Color possibilities
• Compact Design
• Standard 45° Lens Kit, 48° Beam Angle
• 2720 LUX @ 1 meter
• 350 LUX @ 3 meters
• Long Life L.E.D. (rated at 100,000 Hours)
• Built-in Power Supply and DMX 512 Control
Resources
Guides/ Manuals
PHOTOMETRIC DATA
Drawings
CAD File
Related Categories
Specifications
CONTROL SPECIFICATIONS
• USITT-DMX 512
• 3, 4, 12 OR 15CH operation modes
• 4 Button Electronic Menu
• 3 & 5 pin XLR in/out
• IEC Power in/out
CONTROL FEATURES
• Primary/Secondary Mode auto program and music trigger
• 8 built-in programs with Speed control
• Strobe effect (1-18 flashed per second)
• Control each L.E.D. independently
• 0-100% Dimming
POWER SUPPLY
• Multi-voltage: 100-240V AC, 50/60Hz
• On/Off Power switch
. Fan cooled
RIGGING
• Mounting bracket and safety eye-hook installed
DIMENSIONS & WEIGHT:
• (LxWxH): 16.3” x 9” x 3.15” / 415 x 230 x 80mm
• 9.5 lbs. / 4.3 kgs.
. cETLus Approved
• USITT-DMX 512
• 3, 4, 12 OR 15CH operation modes
• 4 Button Electronic Menu
• 3 & 5 pin XLR in/out
• IEC Power in/out
CONTROL FEATURES
• Primary/Secondary Mode auto program and music trigger
• 8 built-in programs with Speed control
• Strobe effect (1-18 flashed per second)
• Control each L.E.D. independently
• 0-100% Dimming
POWER SUPPLY
• Multi-voltage: 100-240V AC, 50/60Hz
• On/Off Power switch
. Fan cooled
RIGGING
• Mounting bracket and safety eye-hook installed
DIMENSIONS & WEIGHT:
• (LxWxH): 16.3” x 9” x 3.15” / 415 x 230 x 80mm
• 9.5 lbs. / 4.3 kgs.
. cETLus Approved
