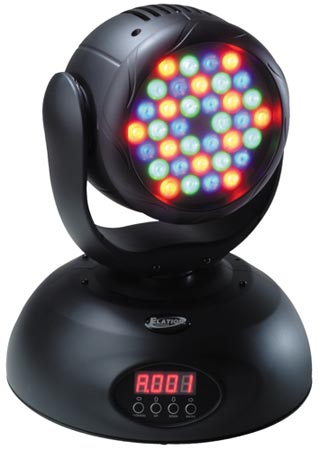

Design LED 36MH


• High output intelligent LED moving head fixture
• Equipped with 36x 1-watt LEDs: (12 red, 12 blue, 12 green)
• High quality Luxeon LEDs manufactured by Lumileds, USA
• 100,000 hours RATED LEDs
• Pan 540 / Tilt 265°
• Low power consumption
• Minimal heat emission
• Step-less, smooth RGB additive color mixing, 16.7 million colors (24-bit)
• Preprogrammed colored macros
• Strobe-effect with a maximum flash rate of 18fps (white or color)
• 12 or 10 DMX-channel operation (16 or 8 bit operation)
• Flicker-free operation for television and film
• Brilliant light output
• Beam angle: 39-degrees with light frost filter
• 3 operation mode: DMX controlled, stand alone or sound activated
 (via internal microphone)
• Dimmer intensity from 0%~100%
• Control board with 4-digit display and foil-keyboard
• Digital display can be turned 180° to fit different installation position
• RDMX (Remote DMX addressing from any DMX console)
• Auto test for all functions
• Automatic Pan/Tilt Correction
• USITT DMX-512 Complaint
• Value of each DMX-channel can be displayed
• Built-in power supply
• Built-in 3-pin XLR serial data connection
• Operate standing up or up-side-down
• 8 User Assignable Program Presets - Internal Program: Edit and save programs to the incorporated EEPROM through the front control panel or external controller; you can save a maximum of 48 scenes, and run the saved programs by using the “run” menu on the front control panel
• Dimensions (LxWxH): 11.5”x11.25”x13.75” / 290x282x347mm
• Weight: 19 lbs. / 8.8 kgs.
• Voltage: 100V 120V 208V 220V 230V 240V
