Specifications
Features
. CMY + 8 colors + 12 gobos
. 1200 Watt Compact Moving Head Hybrid
. Hybrid Spot / Wash In One
. 16° - 41° Variable Beam Angle
. Modular Construction
. EWDMX + RDMX + Fan & Lamp Control
. Animation Effect Wheel + 2 Rotating Prisms
Colors
. CMY color mixing + variable CTO
. 8 Static / replaceable dichroic colors including CTO, CTB and UV

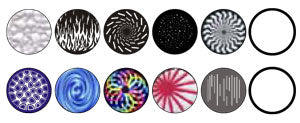

Gobos
. 2 gobo wheels (indexable/replaceable)
. Gobo-Wheel 1: 5 rotating gobos plus open
. Gobo-Wheel 2: 5 rotating gobos plus open
Special Effects
. Animation effect wheel
. 2 rotating / indexing prisms (3-facet & 3D prism)
. Variable zoom frost
. Variable iris
Shutter/Dimmer
. Strobe effect (1-10) flashes per second
. Continuous mechanical dimmer 0-100%
Light Source
. 17,880 Lux / 1,661 FC @ 16 feet / 5 meters
. Lamp life: 750hrs 6,300°k, CRI 85
. Lamp: Phillips MSR1200/2 SA/DE
Optical System
. 16° - 41° variable beam angle
. Variable focus
. Parabolic dichroic glass reflector
. lenses hardened and tempered, anti-reflex coated
. Extreme light output
Movement
. 630° PAN, 265° TILT
. Pan/Tilt Lock
Control
. 27 DMX channels standard mode
. 38 DMX channels extended mode

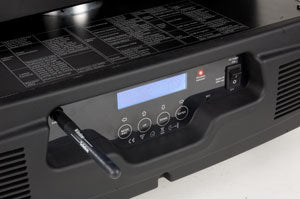

. Digital LCD blue / white menu display
. RDMX, 3 pin or 5 pin DMX in/out
. EWDMX wireless DMX receiver built in
Operation Parameters
. DB Rating: 56.3DB @ 0.91m
. Compact case design (size of a 575)
Power Supply
. Electronic ballast
. Voltage: 208-240v / 60hz
. Power consumption: 1478W
. Fuse: 6H/2A/15A
Connectors
3-pin and 5-Pin XLR serial input/output
Dimensions and Weight
. Dimensions (L x W x H): 18.5” x 18.2” x 20.3”
/ 470 x 367 x 641.5mm (Head up)
. Weight: 78.8 lbs / 35.6 kg
APPROVALS
. ETL Approved
