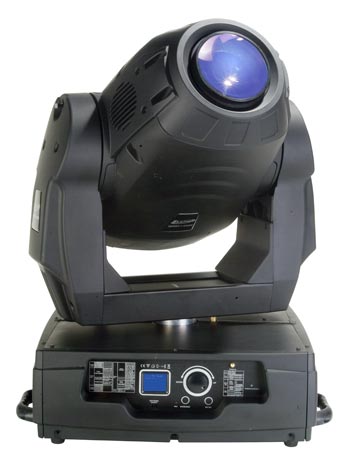

Design Spot 1400E
Features
CONTROL FEATURES
• USITT DMX-512 (16-bit Resolution)
• EWDMX Receiver Built-in (Wireless DMX Solutions)
• 25 DMX Channels
• Full Color LCD Display
• On Board Menu Settings
• 3-pin & 5 pin XLR Serial Input/Output
• Lamp On/Off
OTHER FEATURES
• Modular Internal Construction 1/4 Turn Removable Lid 1/4 Turn Lamp Replacement
• USITT DMX-512 (16-bit Resolution)
• EWDMX Receiver Built-in (Wireless DMX Solutions)
• 25 DMX Channels
• Full Color LCD Display
• On Board Menu Settings
• 3-pin & 5 pin XLR Serial Input/Output
• Lamp On/Off
OTHER FEATURES
• Modular Internal Construction 1/4 Turn Removable Lid 1/4 Turn Lamp Replacement
Resources
Guides/ Manuals
- Design Spot 1400E User Manual
- Design Spot 1400E Cutsheet
- Design Spot 1400E DMX Traits
- Design Spot 1400E Photometrics
- Design Spot 1400E Dimensions
Related Categories
Specifications
OPTICAL SYSTEM
• High Output Luminous- Dichroic Glass Reflector
• All Lenses Are Anti-reflection Coated
• 7300 lux @ 10M
COLORS
• Full Color Mixing with CMY Flag System Plus Variable CTO
• Interchangeable Color Filters, 6 Dichroic Color Filters CTB + White, Split Colors
• Continuous, Variable Speed, Color Scrolling in Both Directions (Rainbow Effect)
• More Color Combinations Possible By Cverlaying the Multi-Color Dichroic Gobo and the Colors on the Color Wheel
GOBOS
• Gobo-Wheel 1: 5 Exchangeable, Rotating Quick-Snap Gobos Plus "Open"
• Gobo-Wheel 2: 5 Exchangeable, Rotating Quick-Snap Gobos Plus "Open"
• Gobo Outside Diameter 37.5 mm, Image Size 31 mm
• Gobo Thickness: Glass = 1.1 - 3.0 mm, Steel = 0.3 mm
• Gobo Overlay (Gobo Morphing)
ANIMATION
• 1 Variable Speed Replaceable Rotating Animation Wheel
DIMMER - SHUTTER
• Variable Speed Strobe Effect (1-10) Flashes Per Second
• Pre-Set Variable/Random Strobe and Dimming Pulse Effect
• Dual Flag Mechanical Dimming System 0%-100%
IRIS
• Beam Narrow to Wide (5% - 100%)
• Variable Speed Iris Macros
• Iris Pulse Effect Small to Large and Large to Small
FROST
• Fixed frost filter for soft edge on prism/effect wheel
PRISM
• 3 Prisms Included
• 3-Facet, 5-Facet, Infinity-Facet Rotating/Indexing Prisms
• Both Directions At Variable Speeds
• Macro-Function for Rotating Gobos/Rotating Prism Combinations
FOCUS
• Motor Driven Focus From Near to Far
ZOOM
• 12 - 32 degree Linear Zoom
LAMP
• Phillips MSR 1200 SA/SE FAST FIT (1200W, 6,200°K, 1000 HRS) 55000 lumens, base: PGJX50 (Medium Bi-Post)
PAN/TILT
• Automatic Pan / Tilt Position Correction
• Maximum PAN-Movement 540° 16-bit Resolution Maximum TILT-Movement 280° 16-bit Resolution
DIMENSIONS & WEIGHT
• (LxWxH) 19” x 14” x 29” / 482.6 x 355.6 x 736.6 mm
• 114 lbs. / 52 kgs.
RIGGING
• 2 X 1/4 Turn Omega Brackets 4 X M-10 Threaded Holes for Clamps
POWER SUPPLY
• Electronic Ballast
• Voltage: AC 200-260V 50/60Hz
• Power Consumption: 1500W
• Fuse: 15A
OPTIONAL DUAL ROAD CASE
• DS1400 Single Road Case
• High Output Luminous- Dichroic Glass Reflector
• All Lenses Are Anti-reflection Coated
• 7300 lux @ 10M
COLORS
• Full Color Mixing with CMY Flag System Plus Variable CTO
• Interchangeable Color Filters, 6 Dichroic Color Filters CTB + White, Split Colors
• Continuous, Variable Speed, Color Scrolling in Both Directions (Rainbow Effect)
• More Color Combinations Possible By Cverlaying the Multi-Color Dichroic Gobo and the Colors on the Color Wheel
GOBOS
• Gobo-Wheel 1: 5 Exchangeable, Rotating Quick-Snap Gobos Plus "Open"
• Gobo-Wheel 2: 5 Exchangeable, Rotating Quick-Snap Gobos Plus "Open"
• Gobo Outside Diameter 37.5 mm, Image Size 31 mm
• Gobo Thickness: Glass = 1.1 - 3.0 mm, Steel = 0.3 mm
• Gobo Overlay (Gobo Morphing)
ANIMATION
• 1 Variable Speed Replaceable Rotating Animation Wheel
DIMMER - SHUTTER
• Variable Speed Strobe Effect (1-10) Flashes Per Second
• Pre-Set Variable/Random Strobe and Dimming Pulse Effect
• Dual Flag Mechanical Dimming System 0%-100%
IRIS
• Beam Narrow to Wide (5% - 100%)
• Variable Speed Iris Macros
• Iris Pulse Effect Small to Large and Large to Small
FROST
• Fixed frost filter for soft edge on prism/effect wheel
PRISM
• 3 Prisms Included
• 3-Facet, 5-Facet, Infinity-Facet Rotating/Indexing Prisms
• Both Directions At Variable Speeds
• Macro-Function for Rotating Gobos/Rotating Prism Combinations
FOCUS
• Motor Driven Focus From Near to Far
ZOOM
• 12 - 32 degree Linear Zoom
LAMP
• Phillips MSR 1200 SA/SE FAST FIT (1200W, 6,200°K, 1000 HRS) 55000 lumens, base: PGJX50 (Medium Bi-Post)
PAN/TILT
• Automatic Pan / Tilt Position Correction
• Maximum PAN-Movement 540° 16-bit Resolution Maximum TILT-Movement 280° 16-bit Resolution
DIMENSIONS & WEIGHT
• (LxWxH) 19” x 14” x 29” / 482.6 x 355.6 x 736.6 mm
• 114 lbs. / 52 kgs.
RIGGING
• 2 X 1/4 Turn Omega Brackets 4 X M-10 Threaded Holes for Clamps
POWER SUPPLY
• Electronic Ballast
• Voltage: AC 200-260V 50/60Hz
• Power Consumption: 1500W
• Fuse: 15A
OPTIONAL DUAL ROAD CASE
• DS1400 Single Road Case
