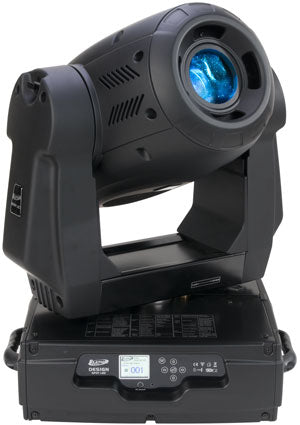

Design Spot LED
Design Spot LED
Discontinued
SKU# EDS488
FEATURES: . 9 Dichroic Colors . 14 Gobos . LED Lamp Source With Equal Output to 250W Discharge . 15° Beam Angle . Variable Frost Filter (Hybrid Effect for Wash)
Features
Resources
Guides/ Manuals
PHOTOMETRIC DATA
DMX/ RDM Traits
Drawings
CAD File
Related Categories
Specifications
Colors
. Color wheel: 8 replaceable dichroic colors plus white, with two direction rainbow effect
Gobos
. 14 Gobos
. Two gobo wheels
. Gobo wheel 1: 7 rotating / indexing replaceable gobos
. Gobo wheel 2: 7 replaceable static gobos. 4 metal, 3 glass gobos
. Gobo Size 26.9mm (outside dimensions) / 23mm (inside dimensions)
Special Effects
. 3 Facet Rotating / Indexing Prism
. Variable Frost Filter (Hybrid Effect for Wash)
. Motorized Iris
Shutter/Dimmer
. Variable speed Shutter / Strobe
. Strobe effect with 0-18 flashes per second
. Mechanical Dimmer 0-100%
Light Source
. 1989 Lux / 185 fc at 16 feet / 5 meters at full
. LED lamp source with equal output to 250W discharge
. Lamp life: 50,000 hours, 6500° K, CRI=70
. Lamp: CBM-360-W LED 90Watt
Optical System
. 15° Beam Angle
. Motorized focus
. Improved optics and flat beam field
Movement
. Pan / Tilt 540/630 x 265
. Automatic Pan / Tilt correction
. Pan / Tilt locking system
Control
. 16 Channels DMX

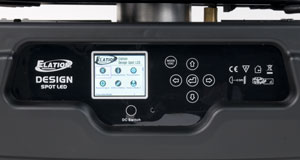

. LCD display
. Reversible display option, 180° flip
. USITT DMX-512 Complaint
. 16 prism macros
. RDMX addressing
. 8 built-in programs
. 16 bit mode
. 3 operation modes: DMX controlled, stand alone or sound activated
Operation Parameters
. Max ambient temperature: 45°C
. IP Rating: IP20
. dB Rating: 55 dB at 3’
Power Supply
. User selectable power supply (internal tap)
. Nearly 1/2 power consumption of standard DS250 PRO
. 240W MAX / 120v-240V 50/60hz
Connectors
. 3-pin & 5-pin DMX connections
Dimensions and Weight
. Dimensions: (L x W x H) 6.75” x 16.75” x 19.75” / 425.45mm x 425.45mm x 501.65mm
. Weight: 48.5 lbs / 22 kg
Approvals
. CE approved
. ETL approved
