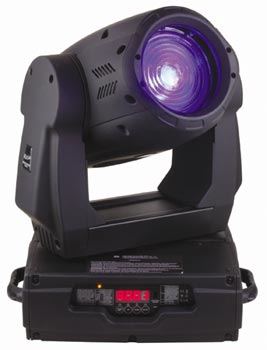

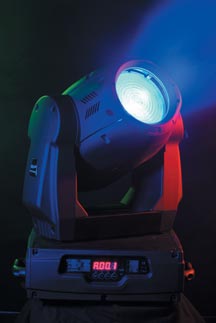

Design Wash 250
Features
CONTROL FEATURES
• RDMX - Remote DMX Addressing
• USITT DMX-512 (16-bit resoultion)
• 16 DMX Channels
• 4 Digit L.E.D. Display
• On board menu settings
• 3-pin XLR serial input/output
• Sound active mode
• RDMX - Remote DMX Addressing
• USITT DMX-512 (16-bit resoultion)
• 16 DMX Channels
• 4 Digit L.E.D. Display
• On board menu settings
• 3-pin XLR serial input/output
• Sound active mode
Resources
Guides/ Manuals
DMX/ RDM Traits
Drawings
CAD File
Related Categories
Specifications
OPTICAL SYSTEM
High luminous-efficiency parabolic reflector
150 mm Fresnel lens
Lux 28,000 @ 15º @ 2.5M
MOTORIZED ZOOM
Remote DMX adjustable 15° to 28° beam angle
CMY - COLOR MIXING SYSTEM
The CMY color mixing system is based on graduated cyan,
magenta, and yellow color filters.
A continuous range of colors may be achieved by varying the
amount of each filter from 0 to 100%
30 CMY color macros
COLORS
8 dichroic-filters plus white
Red, green, blue colors and 3200K, 5600K, UV filters
Continuous, variable speed, color scrolling in both directions
(rainbow effect)
BEAM EFFECTS
180° beam shaper
Wide and flat beam can be rotated by 90°
Frost filter for softer beam
SHUTTER/DIMMER
• Variable speed strobe effect (1-13) flashes per second
• Pre-set variable/random strobe and dimming pulse effect
• Dual Flag mechanical dimming system
PAN/TILT
• Automatic Pan / Tilt position correction
• Maximum PAN-movement 630° in 2.0 secs (default)
or 540° (user selectable) / 16 bit
• Maximum TILT-movement 265° in 1.5 secs / 16 bit
• Vector Mode with blackout
RIGGING
2 X ¼ turn fastening Omega Clamps
POWER SUPPLY
• Fuse: 8A (120V) or 4A (220V)
• Magnetic Ballast
• Voltage: AC 98V, 120V, 220V, 208V, 230V, 240V 50/60Hz
• Power Consumption 400W
DIMENSIONS & WEIGHT
• 14”L x 14”W x 22.5”H
• 59 lbs.
• ETL Listed
High luminous-efficiency parabolic reflector
150 mm Fresnel lens
Lux 28,000 @ 15º @ 2.5M
MOTORIZED ZOOM
Remote DMX adjustable 15° to 28° beam angle
CMY - COLOR MIXING SYSTEM
The CMY color mixing system is based on graduated cyan,
magenta, and yellow color filters.
A continuous range of colors may be achieved by varying the
amount of each filter from 0 to 100%
30 CMY color macros
COLORS
8 dichroic-filters plus white
Red, green, blue colors and 3200K, 5600K, UV filters
Continuous, variable speed, color scrolling in both directions
(rainbow effect)
BEAM EFFECTS
180° beam shaper
Wide and flat beam can be rotated by 90°
Frost filter for softer beam
SHUTTER/DIMMER
• Variable speed strobe effect (1-13) flashes per second
• Pre-set variable/random strobe and dimming pulse effect
• Dual Flag mechanical dimming system
PAN/TILT
• Automatic Pan / Tilt position correction
• Maximum PAN-movement 630° in 2.0 secs (default)
or 540° (user selectable) / 16 bit
• Maximum TILT-movement 265° in 1.5 secs / 16 bit
• Vector Mode with blackout
RIGGING
2 X ¼ turn fastening Omega Clamps
POWER SUPPLY
• Fuse: 8A (120V) or 4A (220V)
• Magnetic Ballast
• Voltage: AC 98V, 120V, 220V, 208V, 230V, 240V 50/60Hz
• Power Consumption 400W
DIMENSIONS & WEIGHT
• 14”L x 14”W x 22.5”H
• 59 lbs.
• ETL Listed
