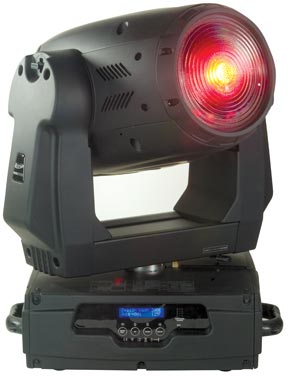

Design Wash 300E

Features

CONTROL FEATURES

• RDMX - Remote DMX Addressing

• USITT DMX-512 (16-bit resoultion)

• 16 DMX Channels

• Blue LCD Display

• On board menu settings

• 3-pin & 5-pin XLR serial input/output

Resources

User Manual

Specifications

OPTICAL SYSTEM

• New advanced high luminous-efficiency parabolic reflector

• 150 mm Fresnel lens

• Lux 28,000 @ 18º @ 2.5M

 MOTORIZED ZOOM

• Remote DMX adjustable 18° to 28° beam angle

 CMY - COLOR MIXING SYSTEM

• The CMY color mixing system is based on graduated cyan, magenta, and yellow color filters.

• A continuous range of colors may be achieved by varying the amount of each filter from 0 to 100% 30 CMY color macros.

 COLORS

• 8 dichroic-filters plus white Red, green, blue colors and 3200K, 5600K, UV filters

• Continuous, variable speed, color scrolling in both directions (rainbow effect)

 BEAM EFFECTS

• New 360° beam shaper

• Wide and flat beam can be rotated by 90°

• Frost filter for softer beam

 SHUTTER/DIMMER

• Variable speed strobe effect (1-13) flashes per second

• Pre-set variable/random strobe and dimming pulse effect

• Dual Flag mechanical dimming system

• Flicker free

 LAMP

• Philips “Fast Fit” MSR300 (300W, 8500°K, 1000 HRS)

 PAN/TILT

• Automatic Pan / Tilt position correction

• Pan/Tilt Lock

• Maximum PAN-movement 630° in 2.0 secs (default)
 or 540° (user selectable) / 16 bit

• Maximum TILT-movement 265° in 1.5 secs / 16 bit

• Vector Mode with blackout

 RIGGING
 2 X 1/4 turn fastening Omega Clamps

 POWER SUPPLY

• Electronic Power Supply - Multi-voltage: AC 98~240V 50/60Hz

 DIMENSIONS & WEIGHT

• (LxWxH): 14” x 14” x 22.5” / 356x356x572mm

• 59 lbs. 27 kgs.

 Approvals

• ETL approved
