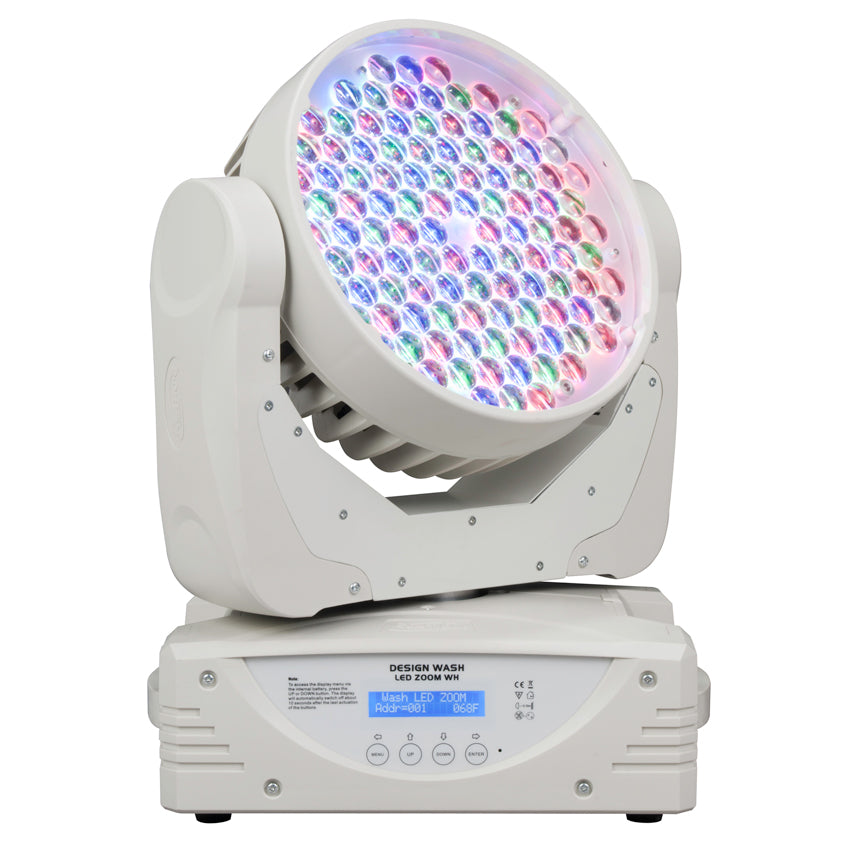

Design Wash LED Zoom WH

Features

 The Design Wash LED Zoom WH™ is a high output pro grade zoom wash LED luminaire featuring (108) 3W Osram™ LEDs consisting of (40) Red, (28) Green, (30) Blue, and (10) White, producing 5,500 total lumens with 6° to 23° motorized zoom, 0-100% dimming, 1-18 fps strobe and pulse effect, RGBW color mixing and color macros, 16bit pan and tilt movement, 3pin and 5pin DMX in/out connections, flicker free operation for broadcast TV and FILM, (4) button control LCD menu display, 350W max power consumption, and a multi-voltage universal auto switching power supply (100-240v).

SEE ALSO

 DESIGN WASH LED ZOOM™
 RGBW Version (click for more info)


 DESIGN WASH LED ZOOM CW™
 Cool White Version (click for more info)



 FEATURES
 High Output Pro Grade Zoom Wash LED Luminaire
 5,500 Total Lumens
 6° - 23° Motorized Zoom
 RGBW Color Mixing and Color Macros
 Flicker Free Operation for Broadcast TV and FILM

Resources

User Manual

Specifications

SOURCE
 (108) 3W Osram™ LEDs
 (40) Red, (28) Green, (30) Blue, and (10) White
 50,000 Hour Average LED Life

 PHOTOMETRIC DATA
 Distance @8.2 ft (2.5m)
 32,700 LUX 3,038 FC (6° Min Zoom Full ON)
 3,500 LUX 325 FC (23° Max Zoom Full ON)

 EFFECTS
 RGBW Color Mixing and Color Macros
 Dimming: 0% - 100%
 Strobe: 1-18fps

 CONTROL / CONNECTIONS
 (14) DMX Channels
 (4) Button Control Panel
 LCD Menu Display
 8 / 16 Bit Resolution Adjustable Movement

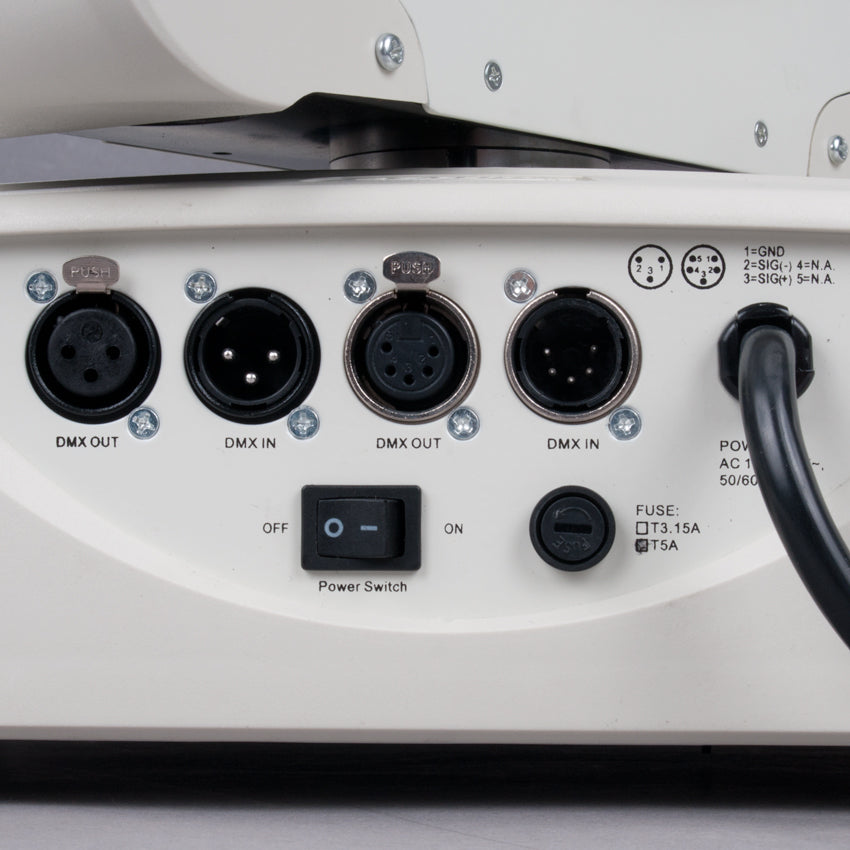

 3pin and 5pin DMX In/Out

 SIZE / WEIGHT
 Length: 13.4” (341mm)
 Width: 8.7” (220mm)
 Vertical Height: 17.5” (445)
 Weight: 21.0 lbs. (9.5 kg)

 ELECTRICAL / THERMAL
 AC 100-240V - 50/60Hz
 320W Max Power Consumption
 14°F to 113°F (-10°C to 45°C)

 APPROVALS / RATINGS
 CE | cETLus / IP20

 INSTALLATION
 Rigging: Clamps (Not Included)
 Working Position: Flat Surface / Inverted (180°)

 INCLUDED ITEMS
 (1) Omega Bracket
 (1) 3pin DMX Cable
 (1) Safety Cable

 OPTIONAL ACCESSORIES:

 CLAMPS (click for more info)


 PRO CABLES (click for more info)

 DMX SOLUTIONS (click for more info)

 Specifications and documentation subject to change without notice.
