DMX-Branch/4
DMX-Branch/4
Discontinued
SKU# DMX-BRANCH4

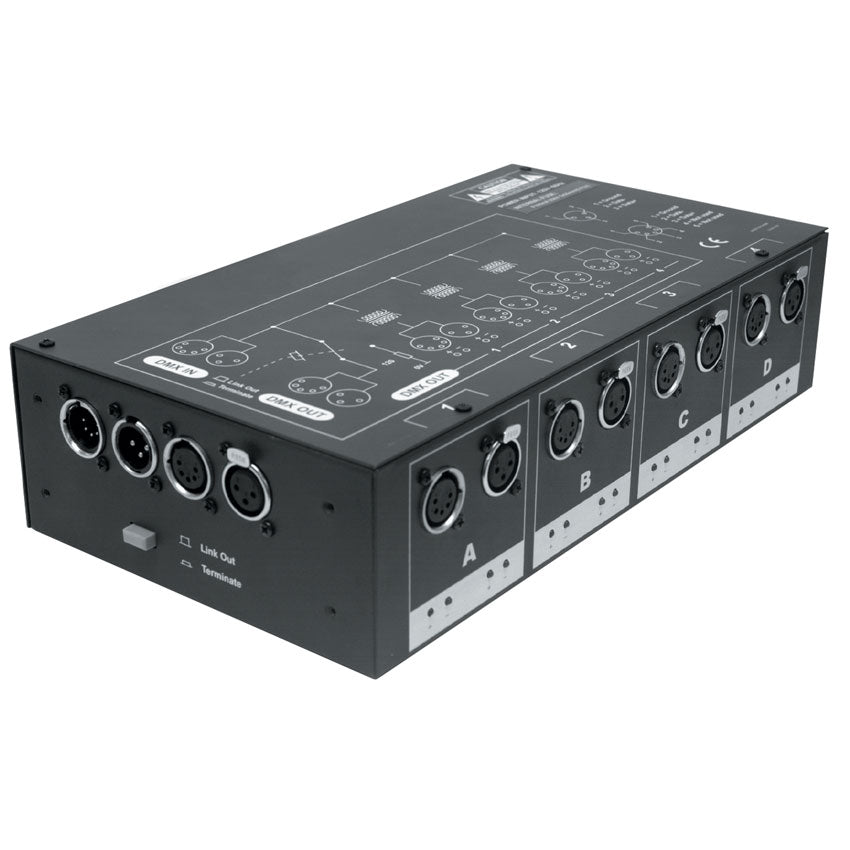

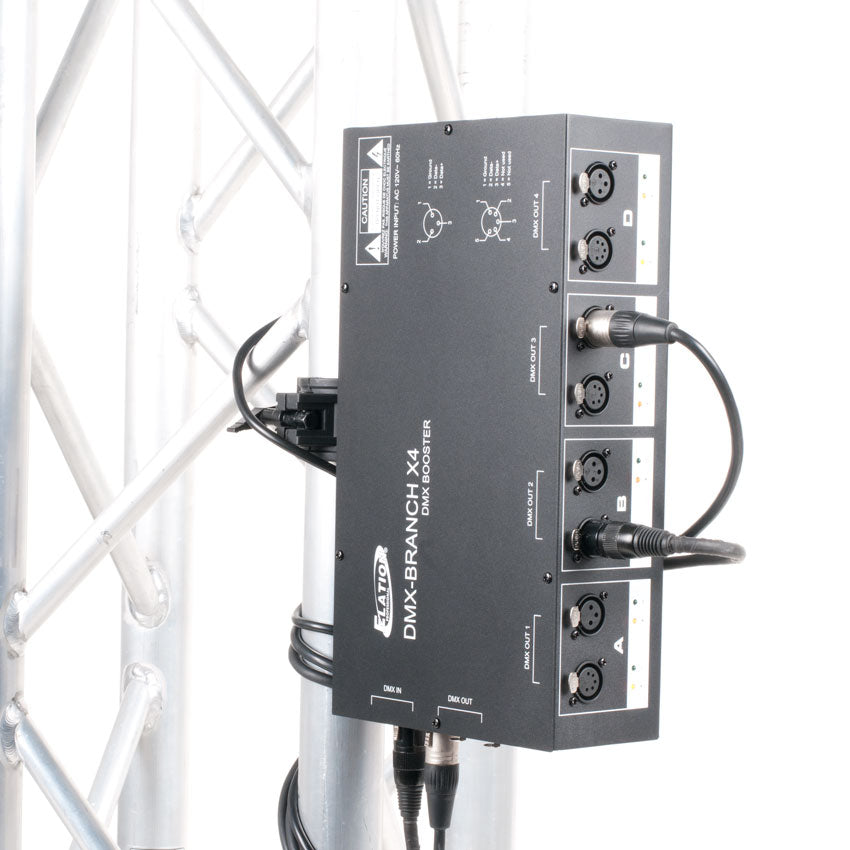

DMX-BRANCH/4™ is a DMX signal splitter/booster that splits a single DMX signal into four separate outputs, as well as boosts the signal for extended cable runs usually associated with large permanent installations. DMX-BRANCH/4™ includes a set of 3pin and 5pin DMX inputs, a set of 3pin and 5pin DMX outputs for linking up to 4 additional units, 4 sets of 3pin and 5pin isolated DMX outputs, a link out/terminate switch, and DMX data LED indicators for each of the four DMX outputs. Flexible installation options are possible like truss mounting using the included 3/16” (4.7625mm) threaded hole for a clamp (not included), and a 19-inch rack mounting kit is included.
Features

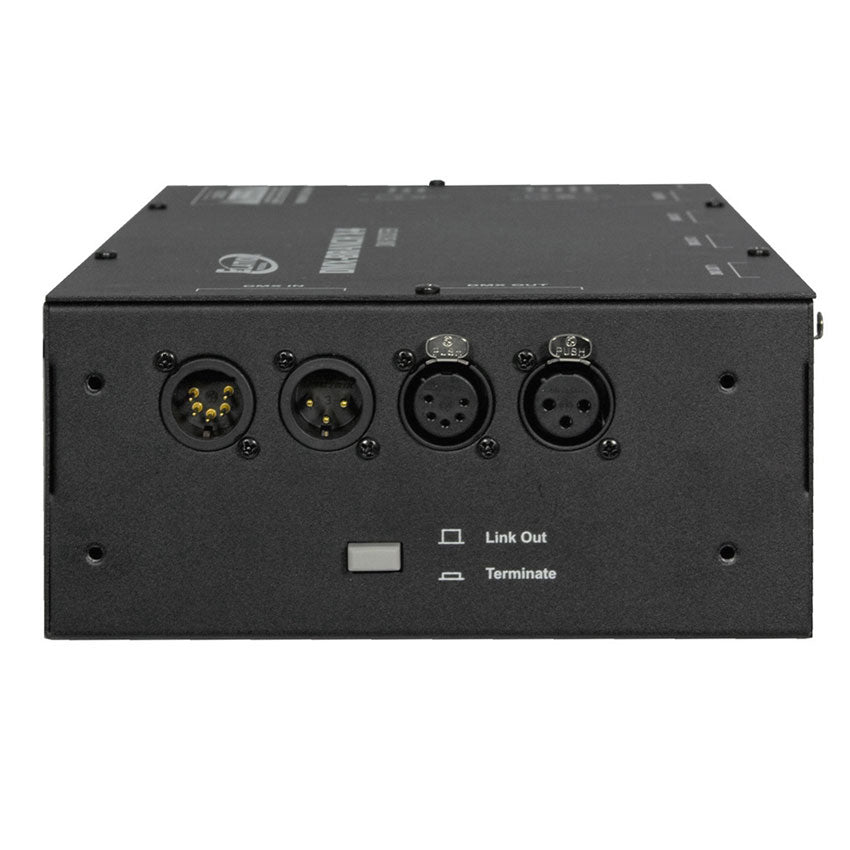

3pin & 5pin DMX Inputs
3pin & 5pin DMX Outputs (thru)

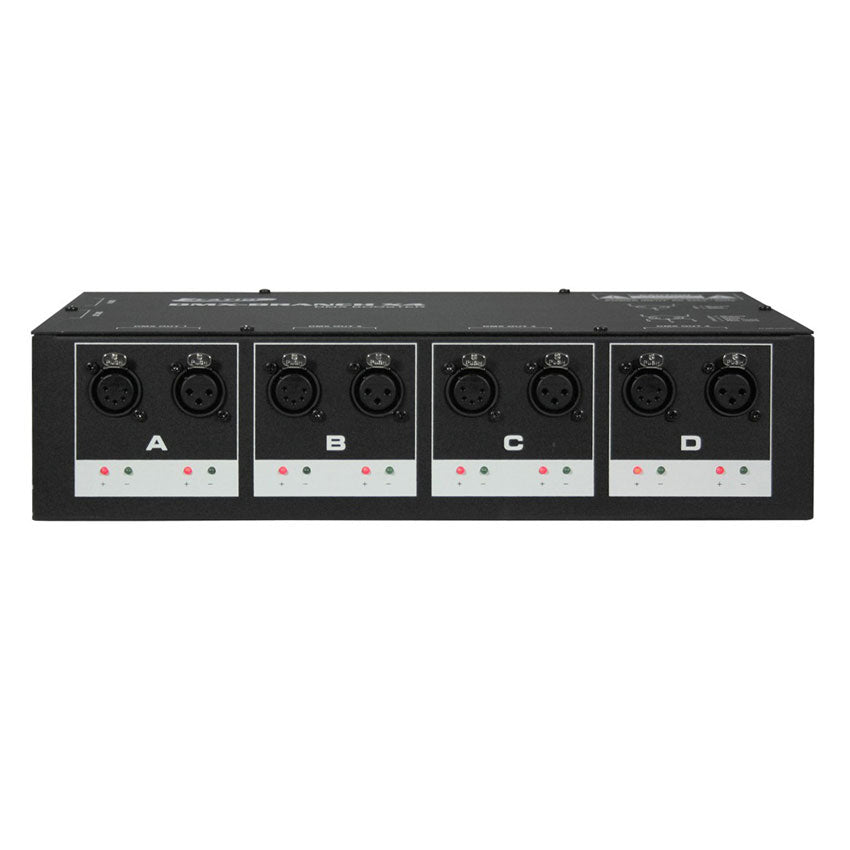

4-Way 3pin & 5pin Isolated DMX Outputs
Link Out / Terminate Button
Linkable Up To (4) Units
DMX Data LED Indicators
19-inch Rack Mount Kit (included)
3/16” (0.1875mm) Threaded Hole for Clamp (not included)
Resources
Specification information
Guides/ Manuals
Drawings
CAD File
Related Categories
Specifications
SIZE / WEIGHT
Length: 13.0” (330mm)
Width: 7.25” (184mm)
Vertical Height: 3.0” (76mm)
Weight: 7.0 lbs. (3.2 kg)
ELECTRICAL / THERMAL
AC 120V - 60Hz
Fuse: 5A 250V 5x20mm
INCLUDED ITEMS
19-inch Rack Mount Kit
Specifications and documentation subject to change without notice.
