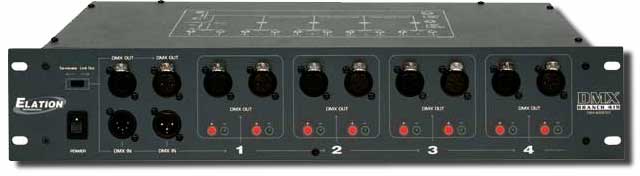

DMX-Branch/419

Features


• 19” Rack mountable!

• 4-way DMX distributor

• 1 x DMX Input, 4 x DMX outputs & 1 DMX thru

• Electronic & Opto isolated

• 3 & 5 pin XLR DMX connectors

• Data + & Data – LED indicators.

• Linkable with other DMX Branch x 4 units via 3 or 5 pin XLR.

• Link out/Terminate button

• 50mA internal fuse

• 3/16” Threaded hole for clamp

• Dimensions: 19” x 7.25” x 3” (483 x 184 x 76 mm)

• Weight: 7 lbs (3.18 kgs)

• Voltage: 120V / 220V

• Internal Fuse: .5A 250V 5x20mm
