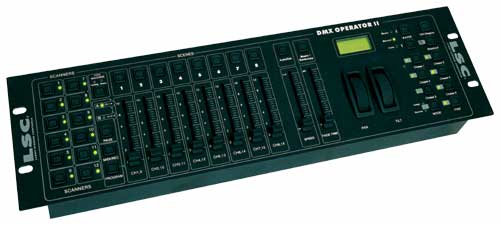

DMX Operator II

Features

NEW FEATURES:

• Pan and Tilt scroll wheels

• Fog Machine trigger button (compatible with American DJ Master Blaster 1000, Stallion and Vaporizer only

• Copy Fixture setting: Ability to copy settings from one fixture to a second fixture (makes programming easier).



MAIN FEATURES:

• An affordable solution for controlling DMX products

• Control up to192 DMX channels

• 12 individual fixture channels - Control up to 12 separate intelligent lights with up to 16 DMX channels per fixture

• Fixtures with less than 16 DMX channels may be combined on 1 DMX scanner button

• Record up to 6 programmable chases with fade time and speeds

• 8 individual faders provide easy programmability for Intelligent Lighting or Dimmer Packs

• MIDI controllable

• USITT DMX-512, 3-pin XLR signal

• Built-in Microphone

• Remote control: Blackout controlled by MIDI input signal

• Blind function - override chases on the fly

• Use in conjunction with the PP-DMX20L or the DP-DMX20L

• Polarity switch to accommodate different types of cable requirements

• Power input: DC 9V-12V, 220 mA min. power supply included,

• Dimensions: 5.25" L x 19" W x 2.5" H - 19 in. rack mount - 3 rack spaces

• Weight: 5 lbs.

• 120V and 220V operation available
