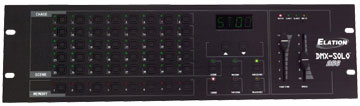

DMX Solo-256

Features

• DMX Recorder/Controller

• 256 DMX Channels

• Master Slave Linking for up to 768 channels

• Record and Store Scenes, Chases and Shows

• Scenes: 24 banks of 40 programmable scenes

• Chases: 40 chases with up to 99 scenes

• Shows (memories): 8 memories with up to 99 scenes, allows for fade and time setting.

• Master Speed Fader

• Master Time Fader

• Playback 1 or more chases or shows at time

• Delete unwanted Chases, scenes or shows

• Master Blackout

• Power Failure Memory

• Audio or Tap sync triggering

• Built in Mic for Sound Activation

• DMX polarity Select

• Power Failure Memory

• Inputs: DMX 3 & 5 Pin XLR

•Outputs: DMX 3 & 5 Pin XLR

• Linking: 5 pin XLR in & out.

• 19” 2 Space Rack mount

•Size: 19” x 5” x 3” (482 x 132 x 73mm)

• Weight: 5 lbs. (2.2 kgs.)

• Power input: 9V DC, 500mA min.
