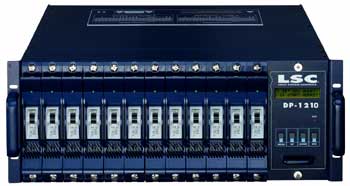

DP-1210

Features


• Modular 12 Channel Digital Dimmer Pack

• USITT DMX-512 (3 pin)

• 10A/CH., Total 120A, Single-phase connection

• 3 phase connection: 10A/CH., Total 40A per phase

• Incorporate a 32-bit high power microcomputer with a time processing unit and a big graphic LCD display

• Separate DMX addressing for each channel

• Each channel can be individually programmed

• Free programming of control curves

• 12 Internal memories can be recalled as required, the memory can be activated to fade in, fade out or to chase

• A chase containing the internal memories can be recalled The chase speed, fade time and the number of steps (1-12) can be programmed

• DMX Off/DMX Failure can start a chase or call a memory

• DMX and MIDI input

• MIDI accepts "program change" signals to call the internal memories, chase or "OFF"

• Analog input works without any adjustment

• Short circuit protection for each channel with the use of 10A circuit breaker

• The LCD shows the input or output signals, phase voltage, channel setting, memory etc.

• Dimensions: 18” x 19” x 7”

• Weight: 60 lbs.

• Power requirement: AC 120V~60Hz, AC 230V~50/60Hz
