DP-DMX20L

Features

Specifications

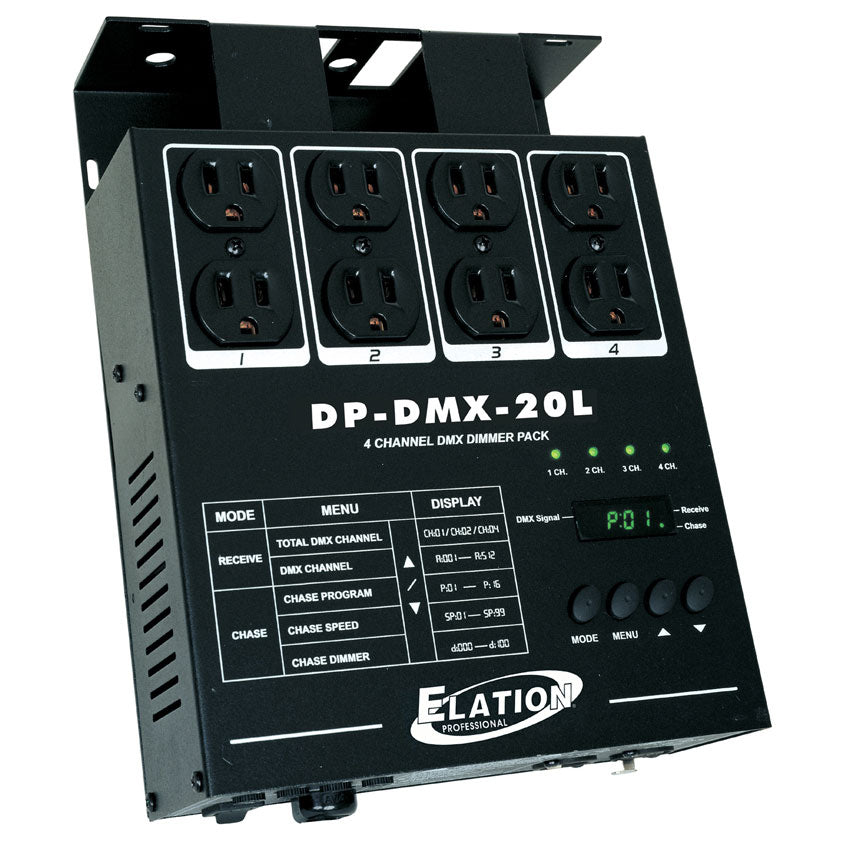

ADJ DP-DMX20L (click for more info)


• 4 channel DMX Dimmer Pack

• Digital display- used to set starting DMX address channels and set all other menu options

• Selectable 1, 2, or 4 channel operation

• Adjustable master dim level.

• Two three prong Edison sockets per channel

• 3 pin XLR DMX Input & Output

• Four LED’s display channel activity

• External channel fuses for quick and easy replacement

• Sleek reversible mounting panel on the rear

• Zero crossing circuitry for protection of transformer loads when switching

• 16 built in Chases when in Chase mode with adjustable speed setting

• Use in conjunction with Elation; DMX Operator Pro, Stage Setter-8, Scene

• Reversible mounting brackets.

• Setter, Scene Setter-48, Stage Desk-16 or any universal DMX controller

• Power Input: 120V ~ 60Hz

• Maximum Load: 5A per channel / 15A total

• Dimensions: 10.25”L x 8.25”W x 3”H

• Weight: 6 lbs

 Specifications and documentation subject to change without notice.
