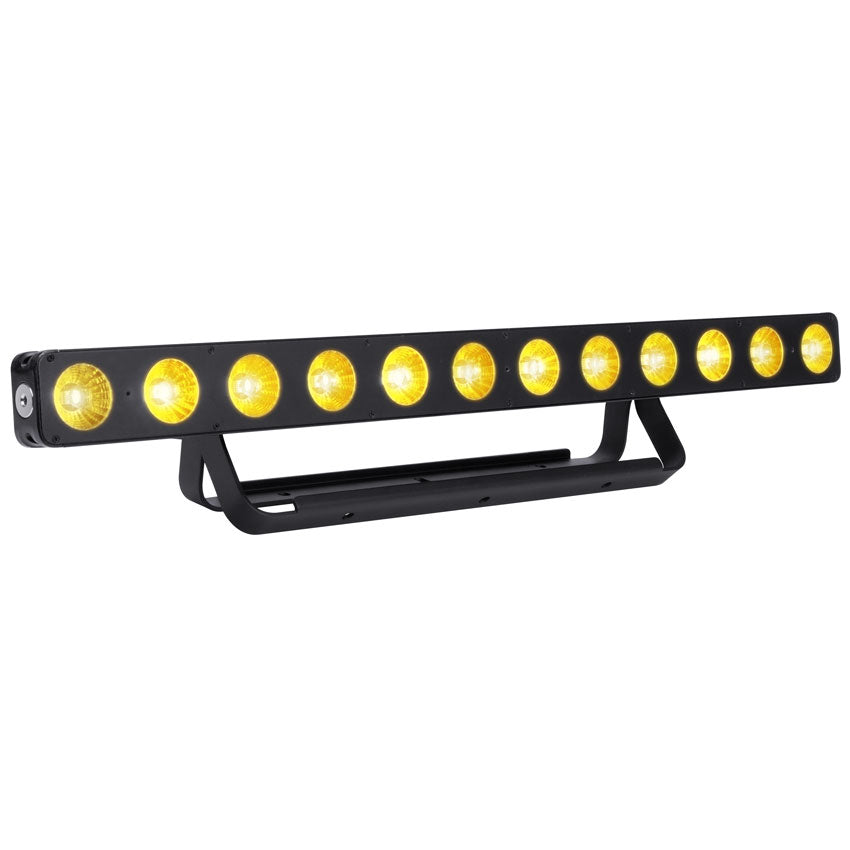

DTW BAR 1000

Features

The new DTW BAR 1000™ features (12) 10W multi-chip CW / WW / Amber LEDs, 28° beam angle, full color temperature range control (2,700K - 6,500K) plus independent Dim-to-Warm channel control (1,800K - 3,200K), pixel control, variable dimming curve modes, strobe and chase effects, ArtNet, KlingNet and RDM (remote device management) protocol support, DMX, RJ45, and power in/out connections, LCD menu display with 4 button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, frost filter and glare shield (included), flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).

SEE ALSO

 DTW SERIES (click for more info)


 FEATURES
 28° Beam Angle
 Pixel Control

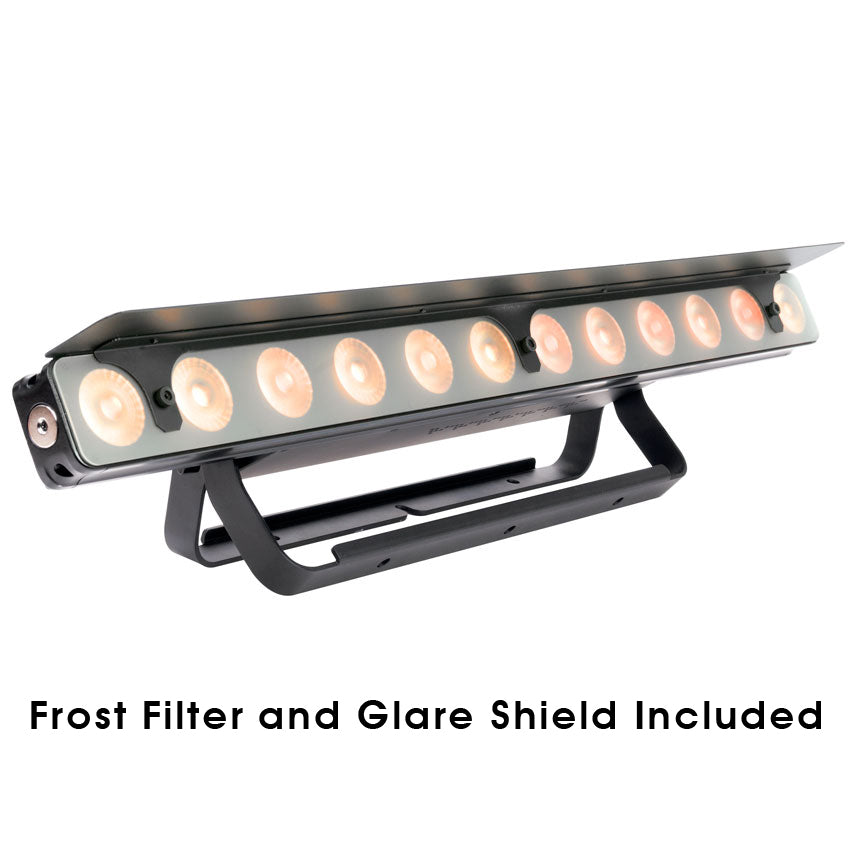

 Frost Filter and Glare Shield (included)
 Full Color Temperature Range Control (2,700K - 6,500K)
 Independent Dim-to-Warm Channel Control (1,800K - 3,200K)
 ArtNet and KlingNet Support
 RDM - Remote Device Management
 Rugged Die-Cast Aluminum Exterior
 Flicker Free Operation for TV and FILM

Resources

Specifications Sheet

Vectorworks Symbol

User Manual

Dimensional Drawing

DMX Traits

CAD Drawing

Photometric Data

Photometric IES File

Photometric Test Report

Specifications

 SOURCE
 (12) 10W Multi-Chip CW / WW / Amber LEDs
 100,000 Hour Average LED Life*


*LED Life may vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


 PHOTOMETRIC DATA
 6,425 LUX 597 FC @3.3’ (1m) (28° Full ON)
 3,196 LUX 297 FC @3.3’ (1m) (38° Full ON w/Frost Filter)

 EFFECTS
 Pixel Control
 Strobe and Chase Effects
 Variable Dimming Curves Modes
 Independent Dim-to-Warm Channel Control (1,800K - 3,200K)

 CONTROL / CONNECTIONS
 (12) DMX Channel Modes (1 / 2 / 3 / 5 / 6 / 7 / 1 0 / 1 2 / 14 / 36 / 41 / 45)

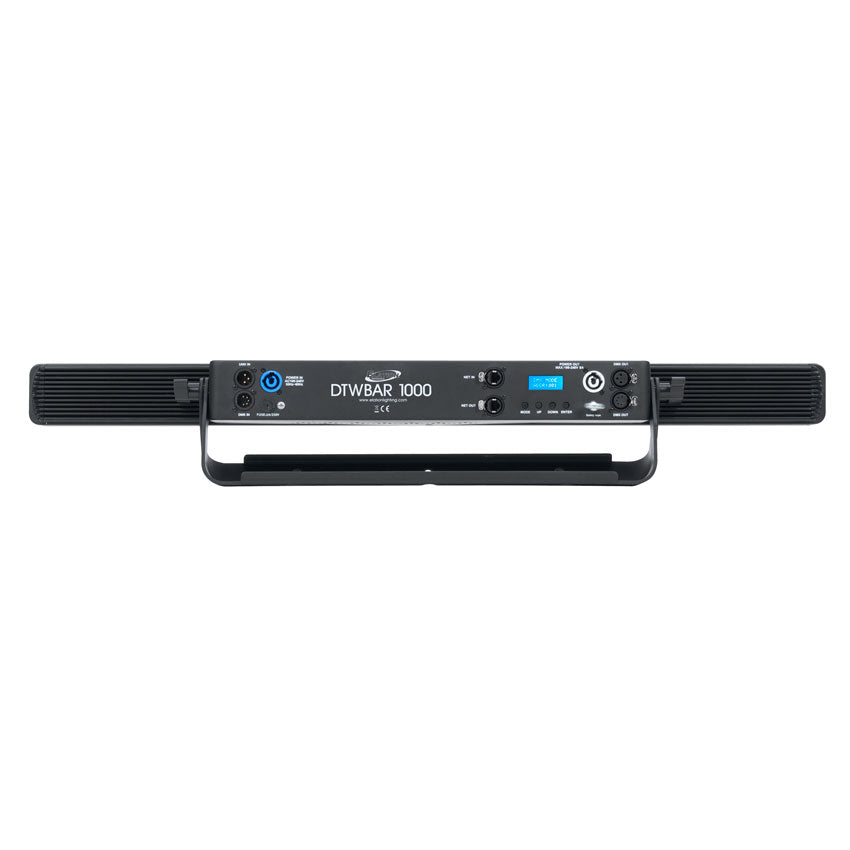

 4 Button Control Panel and LCD Menu Display
 ArtNet + KlingNET Protocol Support
 RDM (Remote Device Management)
 ArtNet + KlingNET Protocol Support
 (2) etherCON RJ45 In/Out
 3pin and 5pin DMX In/Out
 powerCON Power In/Out

 SIZE / WEIGHT
 Length: 35.4” (900mm)
 Width: 8.1” (206.4mm) *with included glare shield
 Vertical Height: 6.1” (155mm)
 Weight: 14.0 lbs. (6.4 kg)

 ELECTRICAL / THERMAL
 AC 110-240V - 50/60Hz
 Max Power Consumption: 120W
 5°F to 113°F (-15°C to 45°C)

 APPROVALS / RATINGS
 CE | cETLus | IP20

 INCLUDED ITEMS
 powerCON Cable

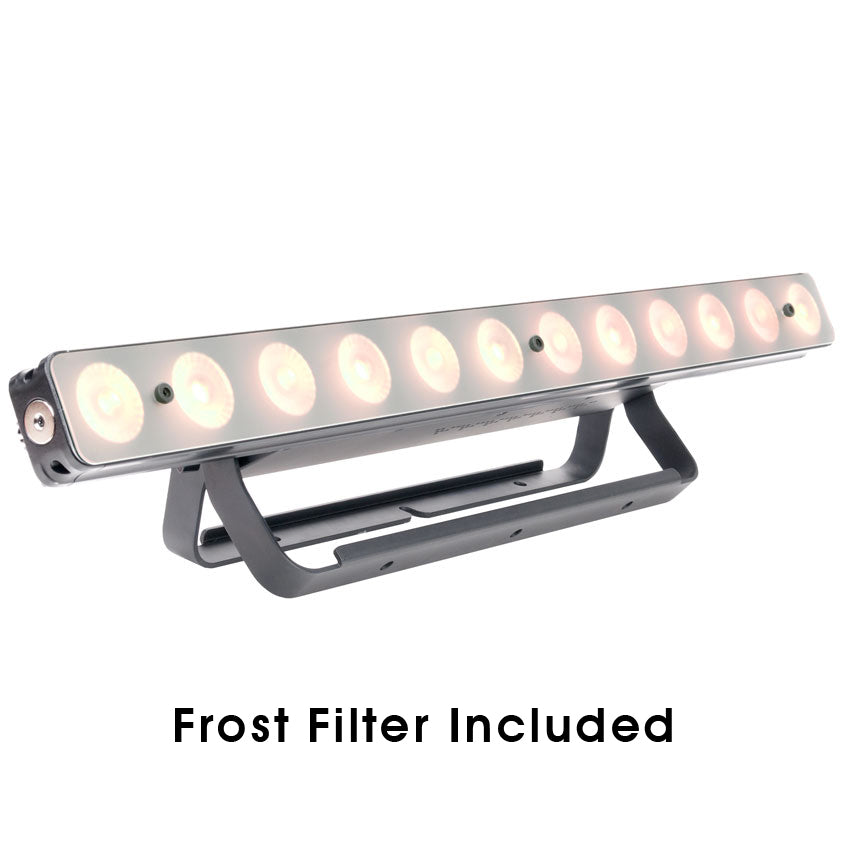

 Frost Filter
 Glare Shield


 OPTIONAL ACCESSORIES:

 CLAMPS (click for more info)


 PRO CABLES (click for more info)

 DMX SOLUTIONS (click for more info)

 Specifications and documentation subject to change without notice.
