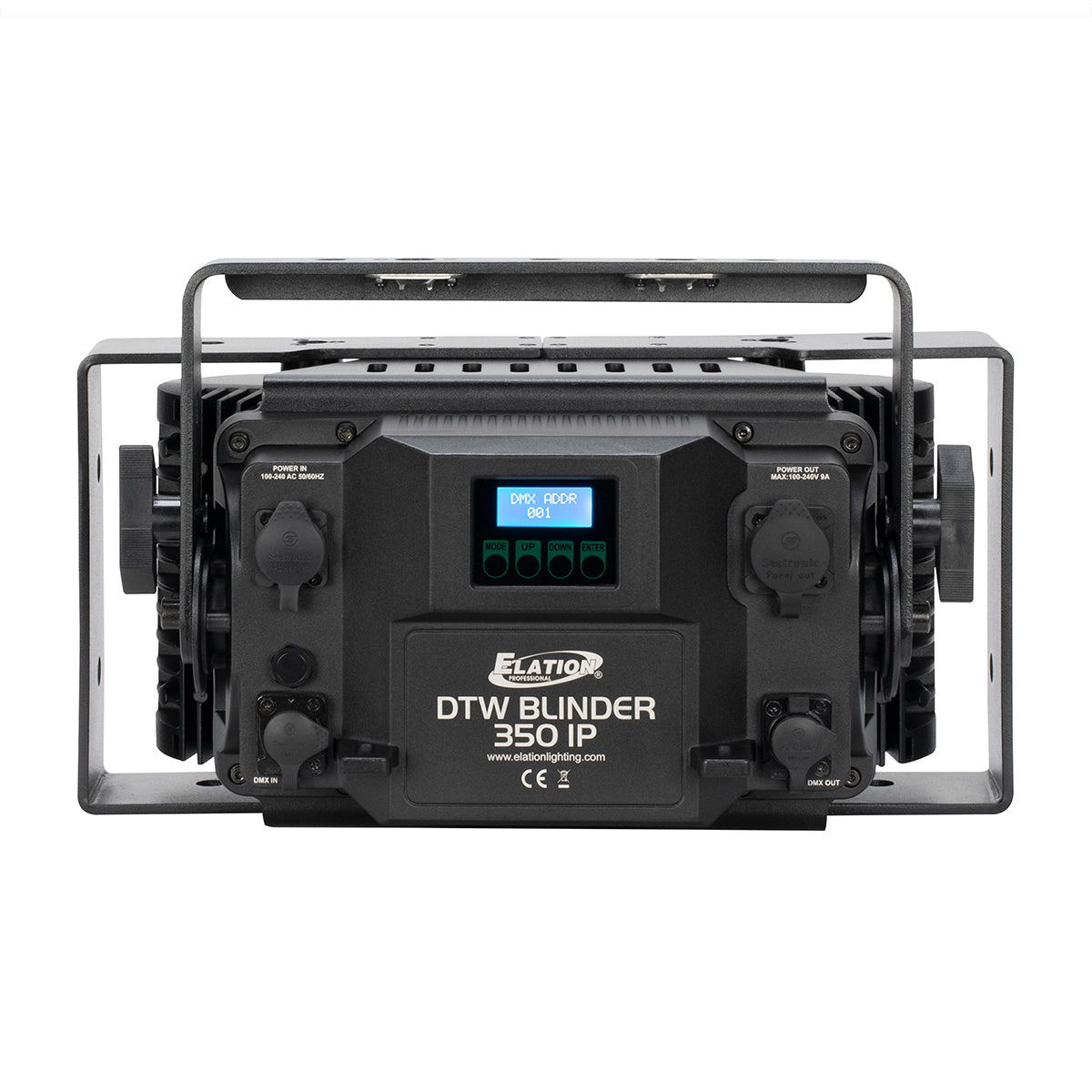

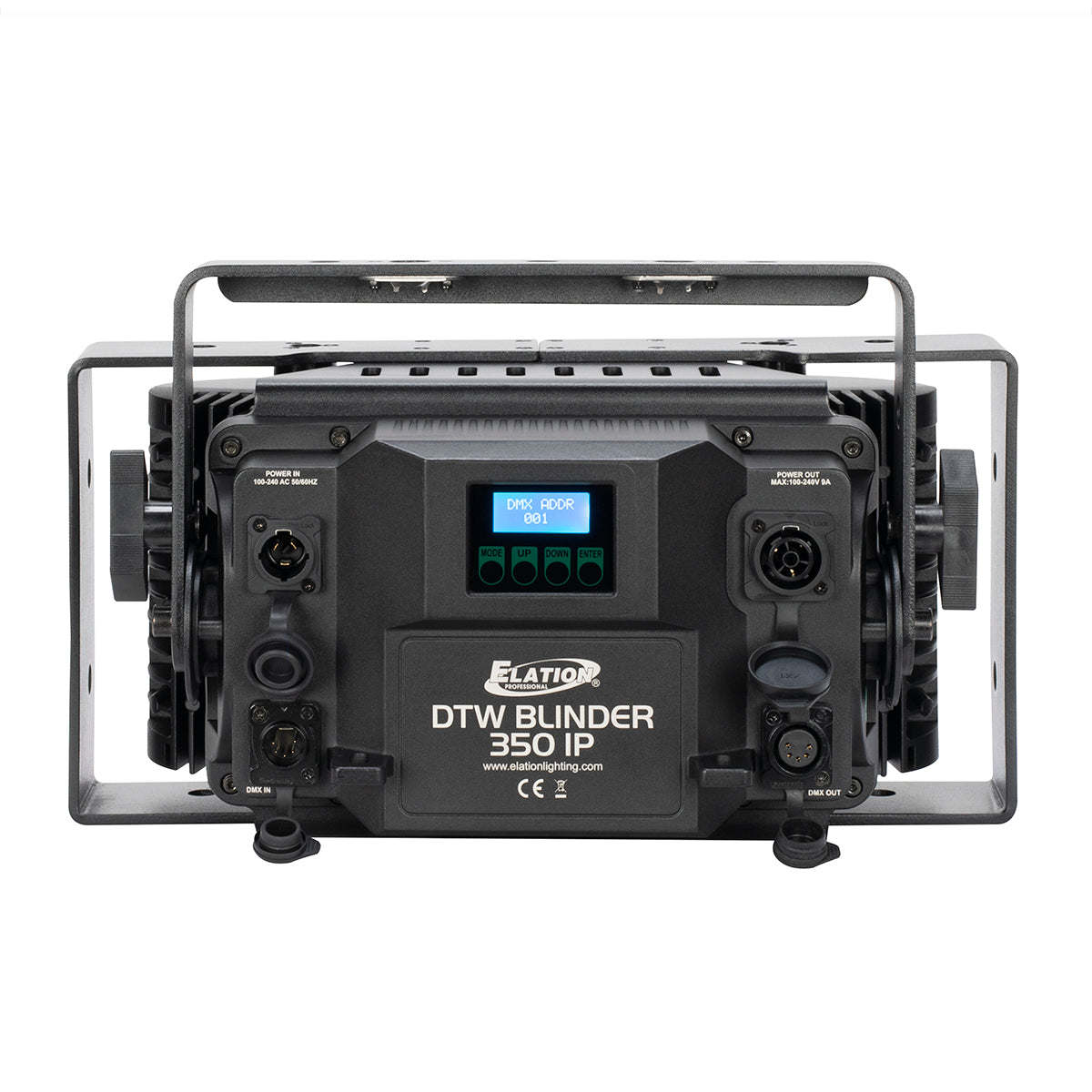

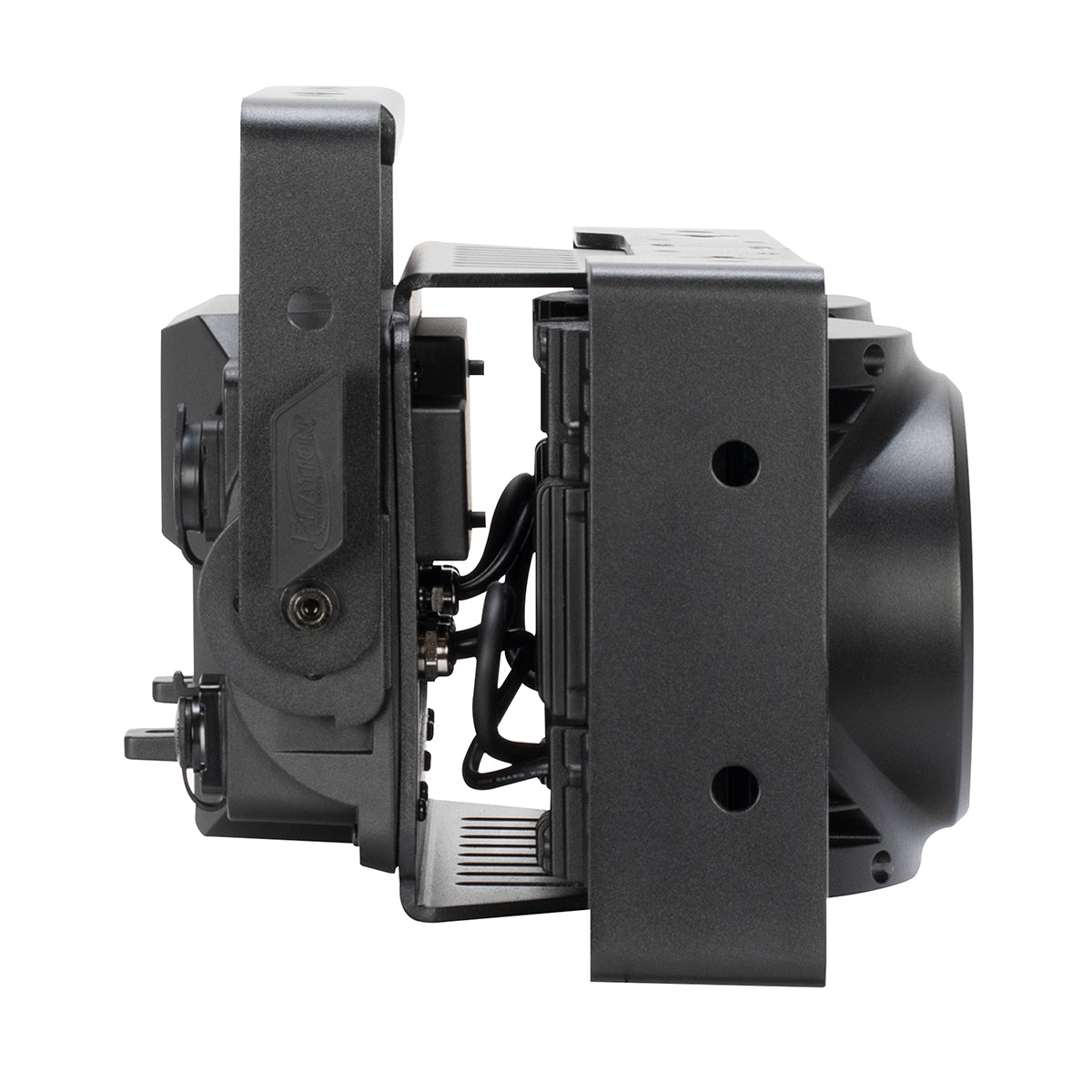

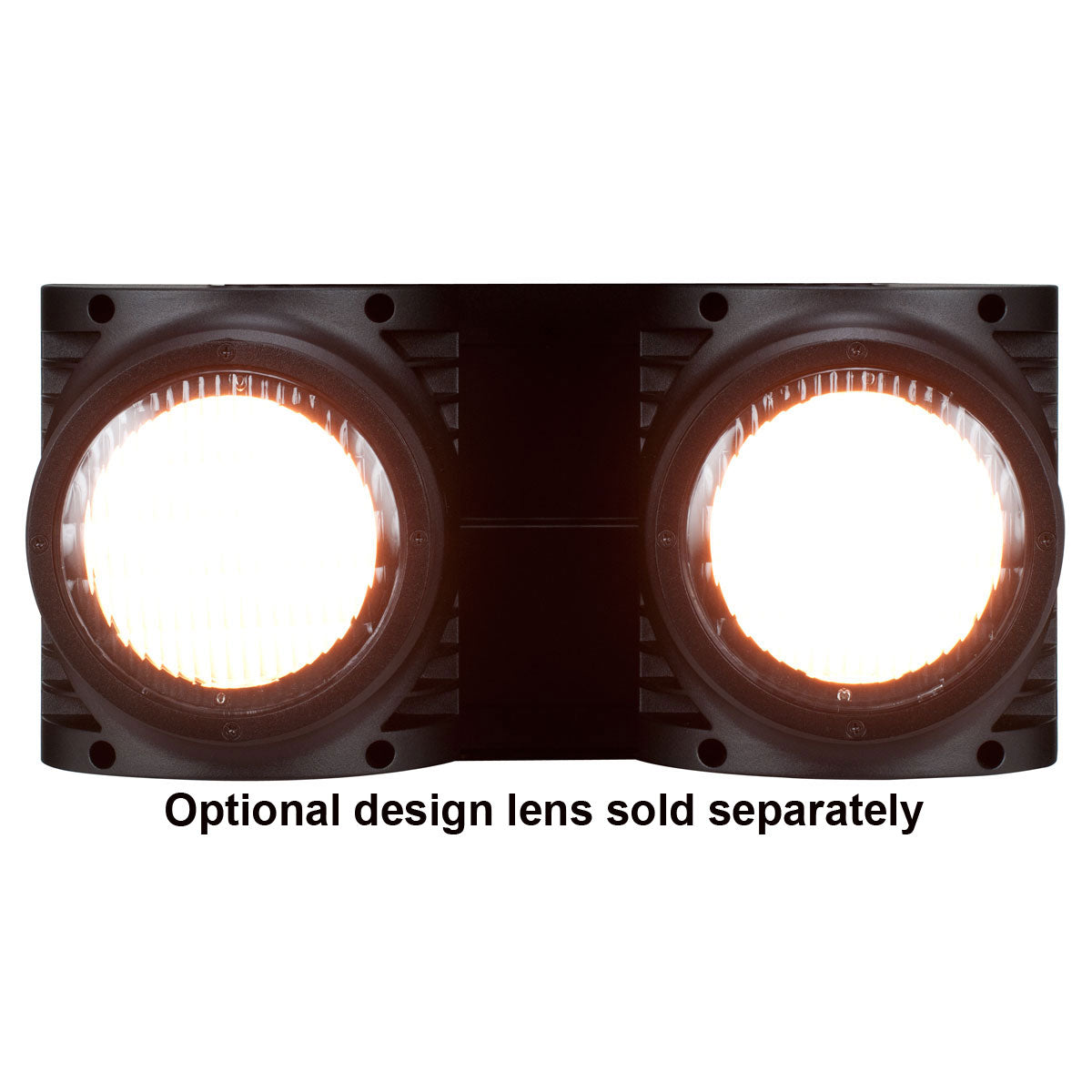

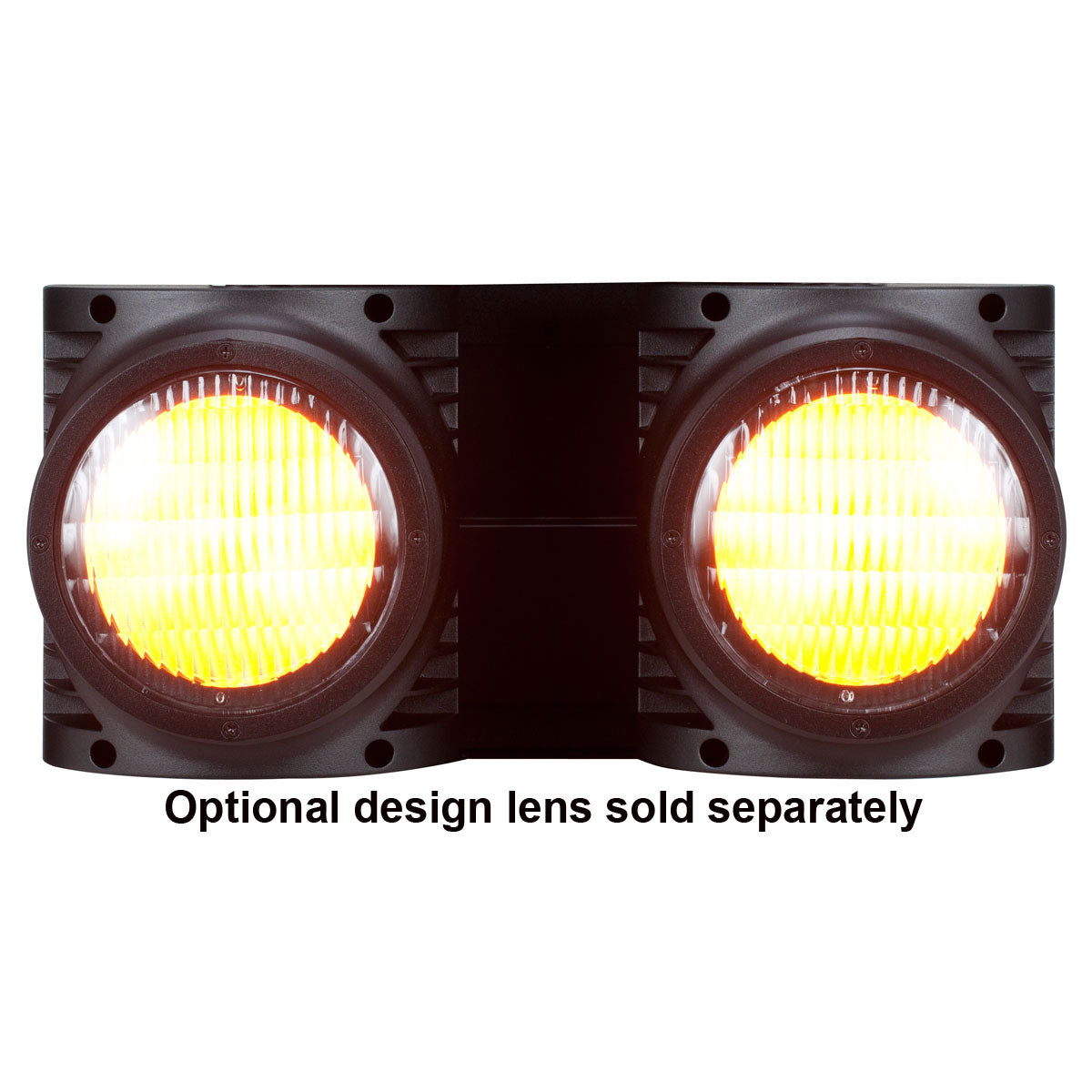

DTW BLINDER 350 IP

Features

 IP65 Rated
 Pixel Control
 65° Wide Beam Angle
 15° Narrow Beam Filters (included)
 Independent Dim-to-Warm Channel Control (1,800K - 3,200K)
 RDM (Remote Device Management)
 Rugged Die-Cast Aluminum Exterior
 Flicker Free Operation for TV and FILM

Resources

Specifications Sheet

DMX Traits

Dimensional Drawing

User Manual

Vectorworks Symbol

CAD Drawing

Photometric IES File

Photometric Test Report

Specifications

SOURCE
(2) 175W 2-in-1 Warm White/Amber COB LEDs
50,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.

PHOTOMETRIC DATA (Full ON)
4,216 LUX 391.7 FC (15° @ 9.8 ft / 3m w/Fresnel lens)
593 LUX 51.1 FC (65° @ 9.8 ft / 3m w/No Fresnel lens)

EFFECTS
Pixel Control
15° Narrow Beam Angle with included Fresnel Lens
65° Wide Beam Angle with Fresnel Lens removed
Unique Dim-to-Warm Channel Control (1,800K - 3,200K)
Independent Dimming of Each COB LED Module
Electronic Strobe and Variable Dimming Curves

COLOR
Warm White / Amber

CONTROL / CONNECTIONS
(9) DMX Channel Modes (9 Total Channels)
RDM (Remote Device Management)
4 Button Control Panel and LCD Menu Display
IP Rated 5pin DMX In/Out
powerCON TRUE1 In/Out

SIZE / WEIGHT
Length: 15.7" (400mm)
Width: 9.5" (241mm)
Horizontal Height: 9.6" (245mm)
Weight: 18.0 lbs. (8.2 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
310W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS
CE | cETLus | IP65

INCLUDED ACCESSORIES
(1) Power Cable
(2) 15° Narrow Beam Filters



Specifications and documentation subject to change without notice.
