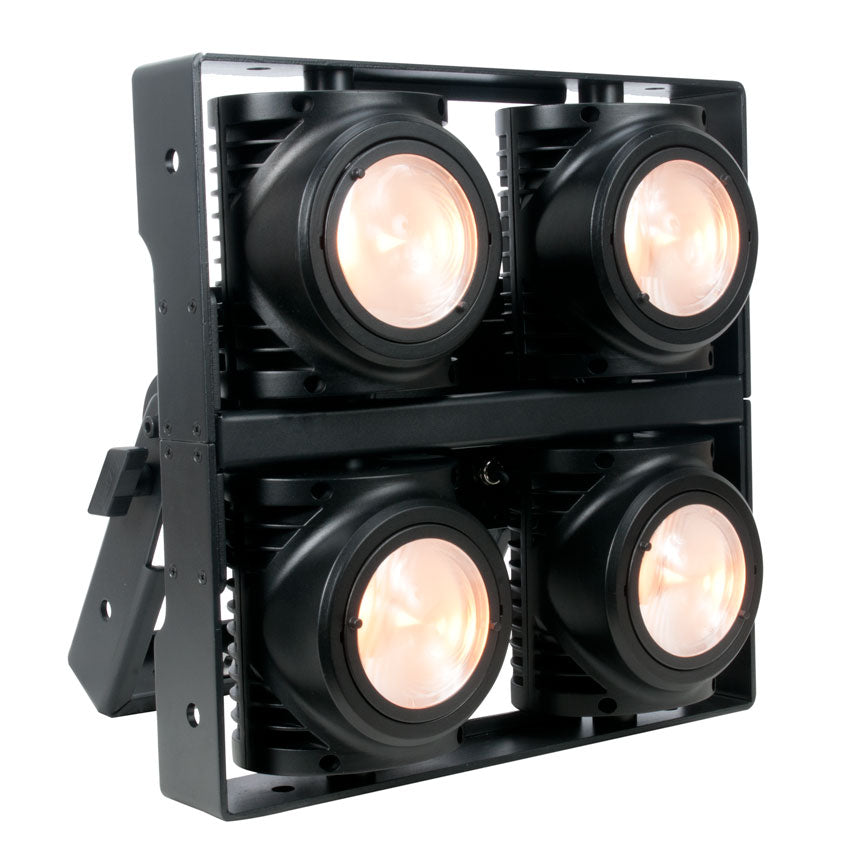

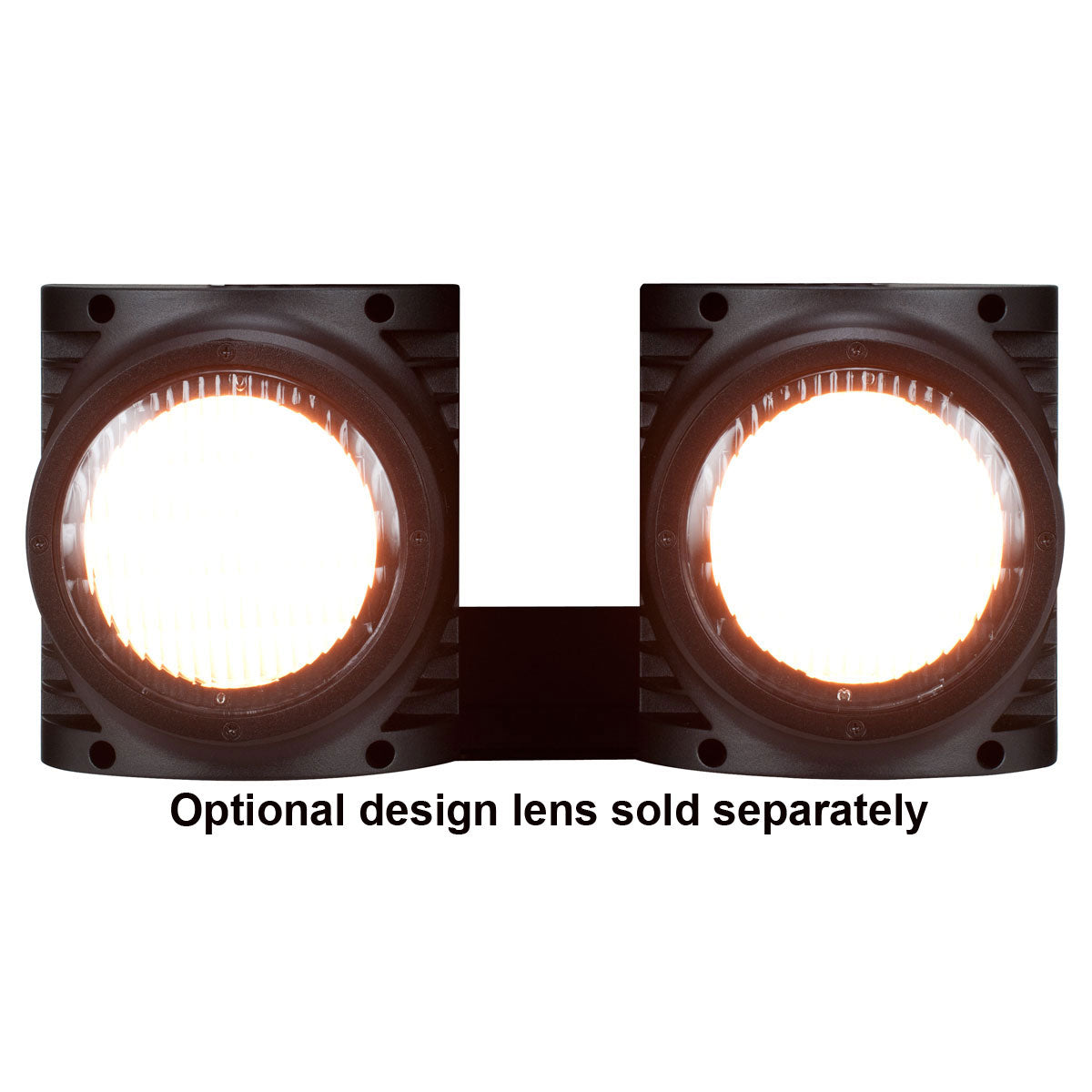

DTW BLINDER 700 IP

Features

IP65 Rated
Pixel Control
67° Wide Beam Angle
15° Narrow Beam Filters (included)
Independent Dim-to-Warm Channel Control (1,800K - 3,200K)
RDM (Remote Device Management)
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM

Resources

Specifications Sheet

DMX Traits

User Manual

Photometric Data

Dimensional Drawing

CAD Drawing

Vectorworks Symbol

Photometric IES File

Photometric Test Report

Specifications

SOURCE
(4) 175W 2-in-1 Warm White/Amber COB LEDs
50,000 Hour Average LED Life*
*LED Life may vary depending on several factors including but not limited to:
 Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


PHOTOMETRIC DATA
7,719 LUX 717 FC (15° @ 9.8 ft / 3m w/Fresnel lens)
1,104 LUX 94 FC (67° @ 9.8 ft / 3m w/No Fresnel lens)

EFFECTS
Pixel Control
15° Narrow Beam Angle with included Fresnel Lens
67° Wide Beam Angle with Fresnel Lens Removed
Unique Dim-to-Warm Channel Control (1,800K - 3,200K)
Independent Dimming of Each COB LED Module
Electronic Strobe and Variable Dimming Curves

COLOR
Warm White / Amber

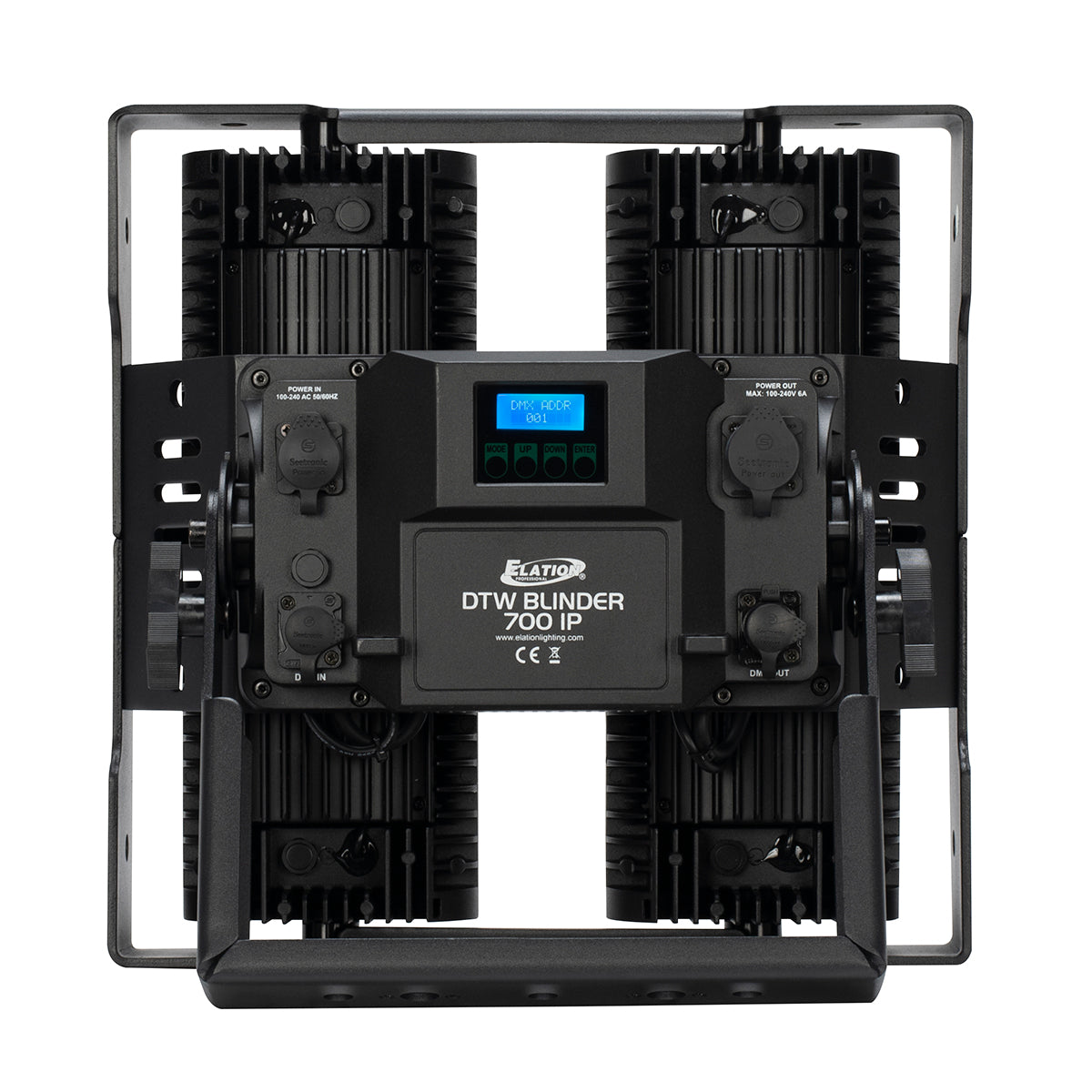

CONTROL / CONNECTIONS
(9) DMX Channel Modes (13 Total Channels)
RDM (Remote Device Management)
4 Button Control Panel and LCD Menu Display
IP Rated 5pin DMX In/Out
powerCON TRUE1 In/Out

SIZE / WEIGHT
Length: 15.7" (400mm)
Width: 9.5" (241mm)
Horizontal Height: 16.1" (410mm)
Weight: 28.0 lbs. (12.7 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
680W Max Power Consumption
Multiple Unit Power Linking
5°F to 113°F (-15°C to 45°C)

APPROVALS / RATINGS
CE | cETLus | IP65

INCLUDED ACCESSORIES
(1) Power Cable
(4) 15° Narrow Beam Filters



Specifications and documentation subject to change without notice.
