The DW Chorus™ series is available in 1 (0.3m), 2 (0.6m), 4 (1.2m), and 6 foot (1.8m) fixture lengths, featuring long life individual Lumi™ 3W LEDs, 100,000 average hour LED life*, LED group control, variable dimming curve modes, variable white color temperature (2,700K - 6,700K), strobe and chase effects, ArtNet™, KlingNet™ and RDM (remote device management) protocol support, 3pin and 5pin DMX, powerCon, and RJ45 in/out connections, LCD menu display with 4 button control panel, integrated rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).
Features
Variable Dimming Curve Modes
Variable White Color Temperature (2,700K - 6,700K)
Multiple Unit Power Linking
ArtNet™ / Klingnet™ / RDM Protocol Support
Rugged Die-Cast Aluminum Exterior
Flicker Free Operation for TV and FILM
SKU# DWC012 - DW CHORUS 12
SKU# DWC024 - DW CHORUS 24
SKU# DWC048 - DW CHORUS 48
SKU# DWC072 - DW CHORUS 72
Resources
Specification information
Guides/ Manuals
- DW CHORUS 12 User Manual
- DW CHORUS 24 User Manual
- DW CHORUS 48 User Manual
- DM CHORUS 72 User Manual
- DM CHORUS 72 User Manual - French
- DW CHORUS 12 User Manual - French
- DW CHORUS 24 User Manual - French
- DW CHORUS 48 User Manual - French
PHOTOMETRIC DATA
- DW CHORUS 12 Photometric Data
- DW CHORUS 24 Photometric Data
- DW CHORUS 48 Photometric Data
- DW CHORUS 72 Photometric Data
PHOTOMETRIC DATA
- DW CHORUS 12 Photometric Test Reports
- DW CHORUS 24 Photometric Test Reports
- DW CHORUS 48 Photometric Test Reports
- DW CHORUS 72 Photometric Test Reports
PHOTOMETRIC DATA
DMX/ RDM Traits
Drawings
- DW CHORUS 12 Dimensional Drawings
- DW CHORUS 24 Dimensional Drawings
- DW CHORUS 48 Dimensional Drawings
- DW CHORUS 72 Dimensional Drawings
CAD File
- DW CHORUS 12 3D CAD
- DW CHORUS 24 3D CAD
- DW CHORUS 72 3D CAD
- DW CHORUS 48 3D CAD
- DW CHORUS 12 2D CAD
- DW CHORUS 24 2D CAD
- DW CHORUS 48 2D CAD
- DW CHORUS 72 2D CAD
CAD File
- DW CHORUS Series Vectorworks 2014 Symbols
- DW CHORUS Series Vectorworks 2015 Symbols
- DW CHORUS Series Vectorworks 2016 Symbols
- DW CHORUS 12 Vectorworks 2014 Symbol
- DW CHORUS 12 Vectorworks 2015 Symbol
- DW CHORUS 12 Vectorworks 2016 Symbol
- DW CHORUS 24 Vectorworks 2014 Symbol
- DW CHORUS 24 Vectorworks 2015 Symbol
- DW CHORUS 24 Vectorworks 2016 Symbol
- DW CHORUS 48 Vectorworks 2014 Symbol
- DW CHORUS 48 Vectorworks 2015 Symbol
- DW CHORUS 48 Vectorworks 2016 Symbol
- DW CHORUS 72 Vectorworks 2014 Symbol
- DW CHORUS 72 Vectorworks 2015 Symbol
- DW CHORUS 72 Vectorworks 2016 Symbol
Related Categories
Specifications
Individual 3W Cool White / Warm White Lumi™ LEDs
100,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
DW Chrous 12™ (48) Total LEDs - 24 CW + 24 WW
30,340 LUX (2,819 FC) @3.3’ (1m) (11° FULL ON)
DW Chorus 24™ (96) Total LEDs - 48 CW + 48 WW
20,570 LUX (1,911 FC) @3.3’ (1m) (9° FULL ON)
DW Chorus 48™ (192) Total LEDs - 96 CW + 96 WW
32,644 LUX (3,033 FC) @3.3’ (1m) (14° FULL ON)
DW Chorus72™ (288) Total LEDs - 144 CW + 144 WW
37,500 LUX (3,484 FC) @3.3’ (1m) (11° FULL ON)
EFFECTS
Variable White Color Temperature (2,700K - 6,700K)
Strobe and Chase Effects / Variable Dimming Curves

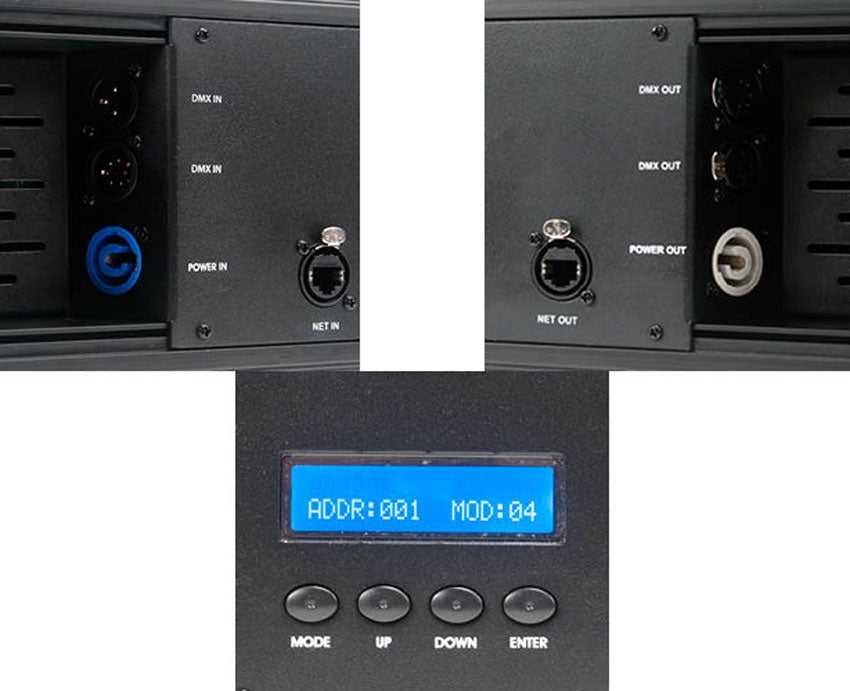

CONTROL / CONNECTIONS
Multiple DMX Channel Modes
4 Button Control Panel and LCD Menu Display
ArtNet™/ KlingNET™ / RDM Protocol Support
(2) RJ45 Ports, 3pin and 5pin DMX In/Out
powerCON Power In/Out
Multiple Unit Power Linking
With Wired Digital Communication Network
SIZE / WEIGHT

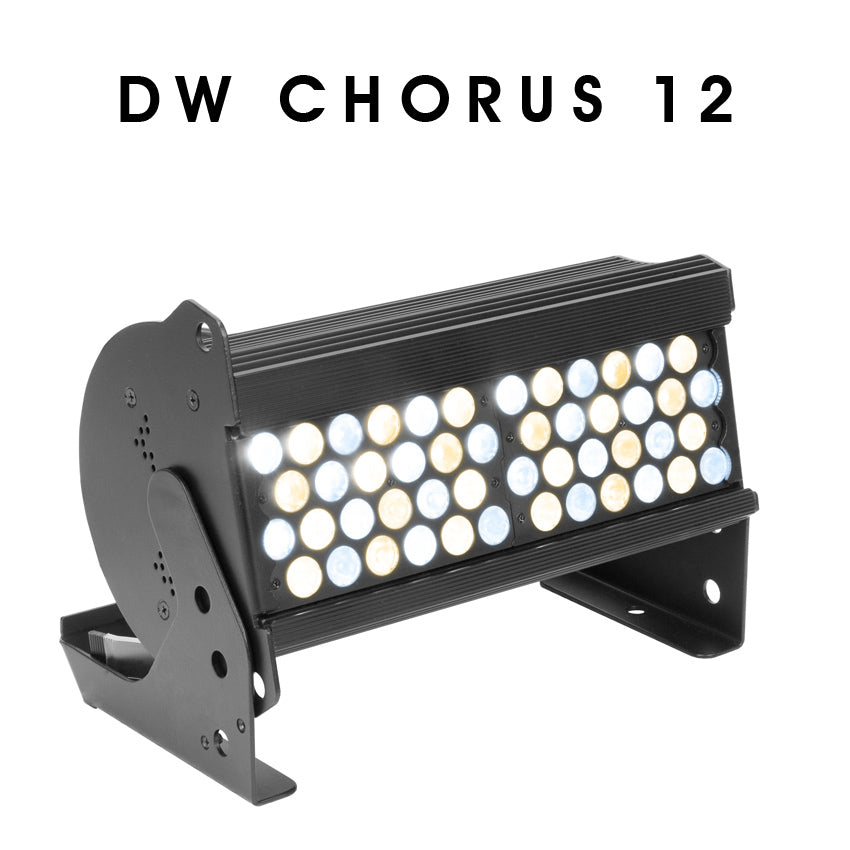

DW Chrous 12™
Length: 12.4” (316mm)
Width: 7.0” (177.1mm)
Vertical Height: 8.9” (227.1mm)
Weight: 12.0 lbs. (5.4kg)

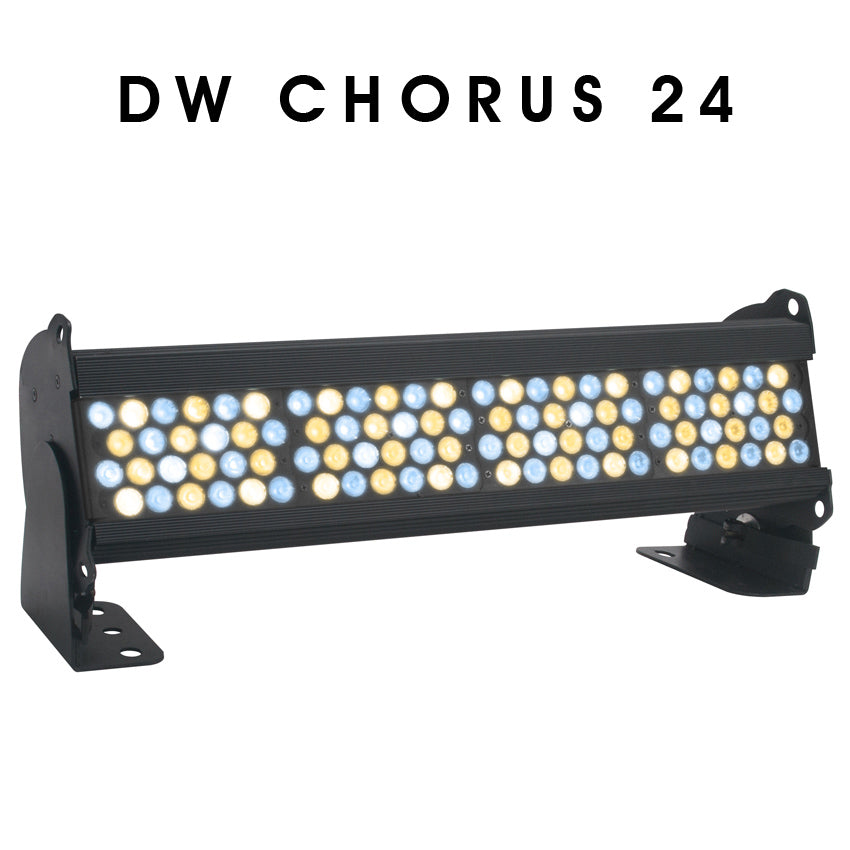

DW Chorus 24™
Length: 23.8” (604mm)
Width: 7.5” (194.1mm)
Vertical Height: 7.6” (192.5mm)
Weight: 23.0 lbs. (10.4kg)

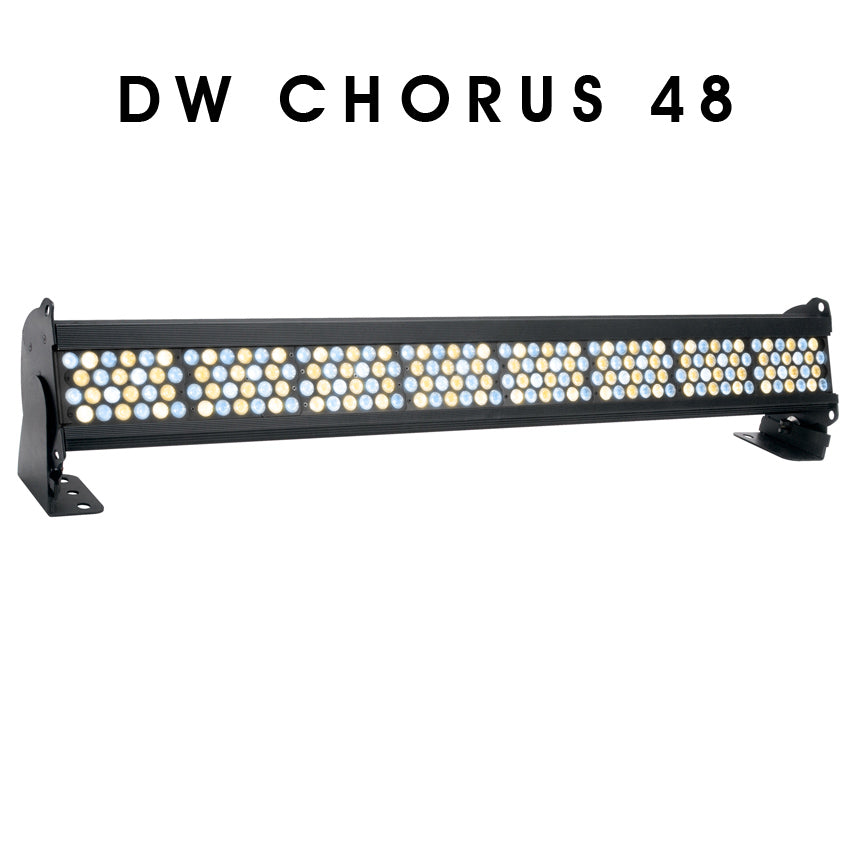

DW Chorus 48™
Length: 46.5” (1182mm)
Width: 7.5” (194.1mm)
Vertical Height: 7.6” (192.5mm)
Weight: 37.0 lbs. (16.8kg)
DW Chorus72™
Length: 69.3” (1760mm)
Width: 7.5” (194.1mm)
Vertical Height: 7.6” (192.5mm)
Weight: 53.0 lbs. (24.0kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
DW Chrous 12™ - 120W Max Power Consumption
DW Chorus 24™ - 169W Max Power Consumption
DW Chorus 48™ - 347W Max Power Consumption
DW Chorus 72™ - 510W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | cETLus |IP30
OPTIONAL ACCESSORIES:
LSF/C12-Light Shaping Filter 60° LENS COLOUR/DW CHORUS 12
LSF/C24-Light Shaping Filter 60° LENS COLOUR/DW CHORUS 24
LSF/C48-Light Shaping Filter 60° LENS COLOUR/DW CHORUS 48
LSF/C72-Light Shaping Filter 60° LENS COLOUR/DW CHORUS 72
Specifications and documentation subject to change without notice.
