DW PAR Z19 IP
DW PAR Z19 IP

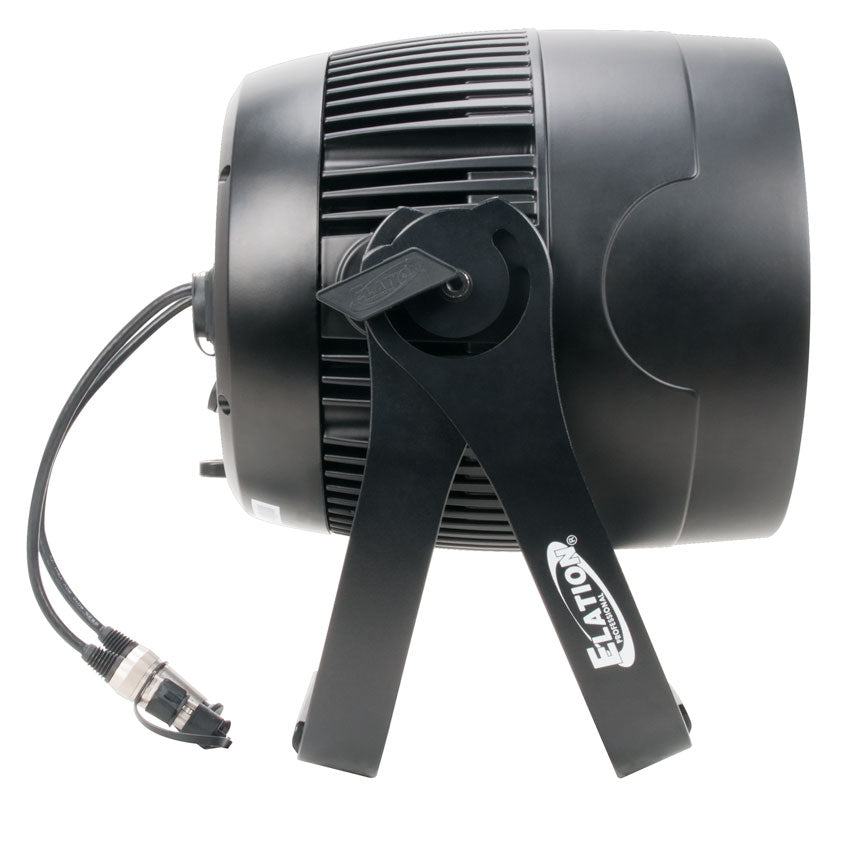

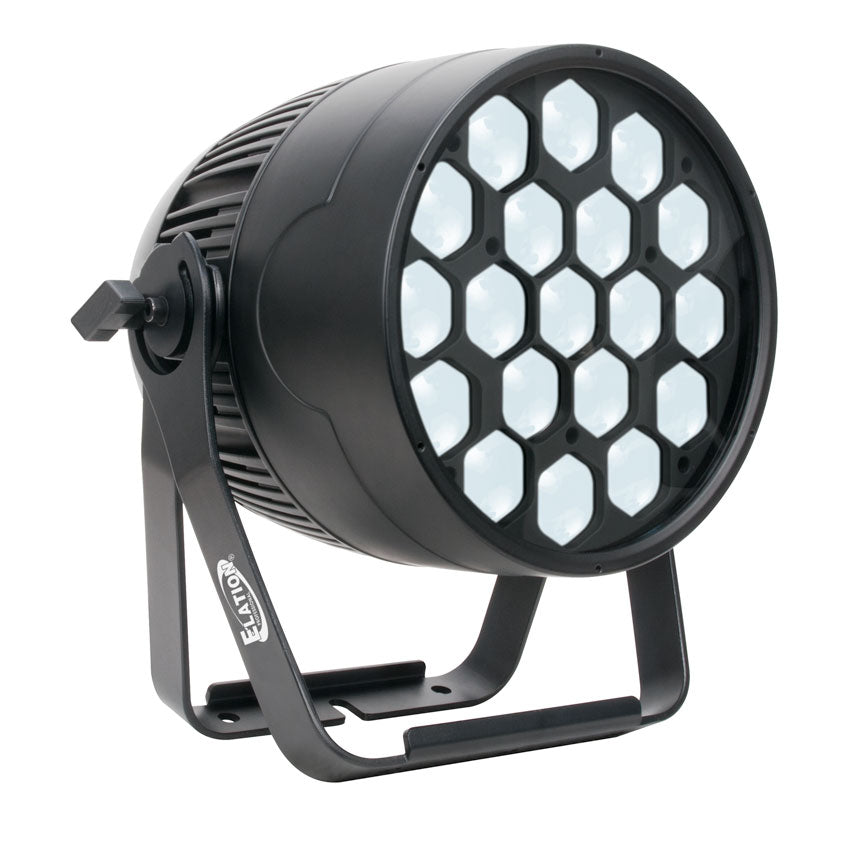

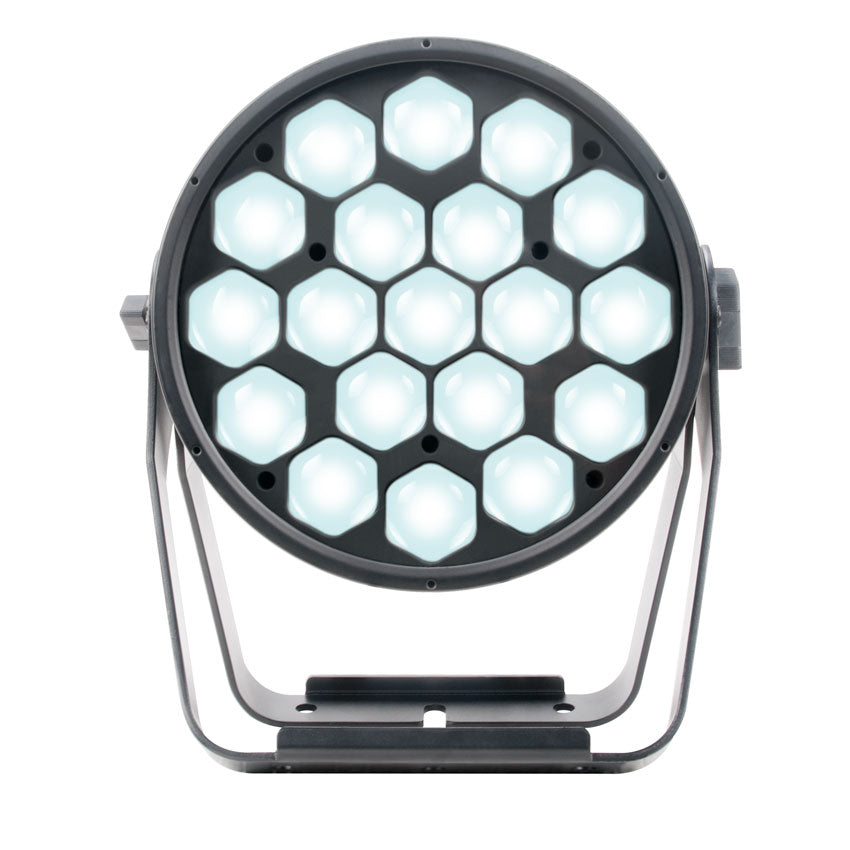

SKU# DWZ119The IP65 rated DW PAR Z19 IP™ features (19) 15W 2-in-1 Cool White / Warm White LEDs, 5° to 36° motorized zoom, dynamic white color temperature range control from 2,700K - 6,000K, electronic strobe and variable dimming curve modes, DMX and RDM (remote device management) protocol support, IP rated 5pin DMX and powerCON TRUE1 power in/out connections, LCD menu display with 4 touch button control panel, integrated dual rigging brackets, multiple unit power linking, rugged die-cast aluminum exterior, flicker free operation for TV and FILM, and a multi-voltage universal auto switching power supply (110-240v).
Features
IP65 Rated
5° to 36° Motorized Zoom
Dynamic White Color Temperature Control (2,700K - 6,000K)
Rugged Die-Cast Aluminum Exterior
Multiple Unit Power Linking
IP Rated DMX and powerCON TRUE1 Connections
Flicker Free Operation for TV and FILM
5° to 36° Motorized Zoom
Dynamic White Color Temperature Control (2,700K - 6,000K)
Rugged Die-Cast Aluminum Exterior
Multiple Unit Power Linking
IP Rated DMX and powerCON TRUE1 Connections
Flicker Free Operation for TV and FILM
Resources
User Manual
Photometric Test Report
Photometric IES File
DMX Traits
Dimensional Drawing
CAD Drawing
Vectorworks Symbol
Specifications
SOURCE
(19) 15W 2-in-1 Cool White / Warm White LEDs
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
44,070 LUX 4,094 FC @9.8’ (3m) (5° Full ON - 4,700K)
1,754 LUX 163 FC @9.8’ (3m) (36° Full ON - 4,700K)
COLOR
Cool White / Warm White
EFFECTS
5° - 36° Motorized Zoom
Electronic Strobe and Variable Dim Curves
Dynamic White Color Temp Control (2,700K - 6,000K)
CONTROL / CONNECTIONS
6 DMX Channel Modes (7 Total Channels)
4 Touch Button Control Panel and LCD Menu Display
RDM (Remote Device Management)
IP Rated 5pin DMX and powerCON TRUE1 Power In/Out
SIZE / WEIGHT
Length: 15.9" (363mm)
Width: 12.0" (305mm)
Vertical Height: 15.6" (396mm)
Weight: 26.0 lbs. (11.8 kg)
ELECTRICAL / THERMAL
AC 110-250V - 50/60Hz
240W Max Power Consumption
5°F to 113°F (-15°C to 45°C)
APPROVALS / RATINGS
CE | IP65
Specifications and documentation subject to change without notice.
