E-LOADER III Software Uploader
E-LOADER III Software Uploader

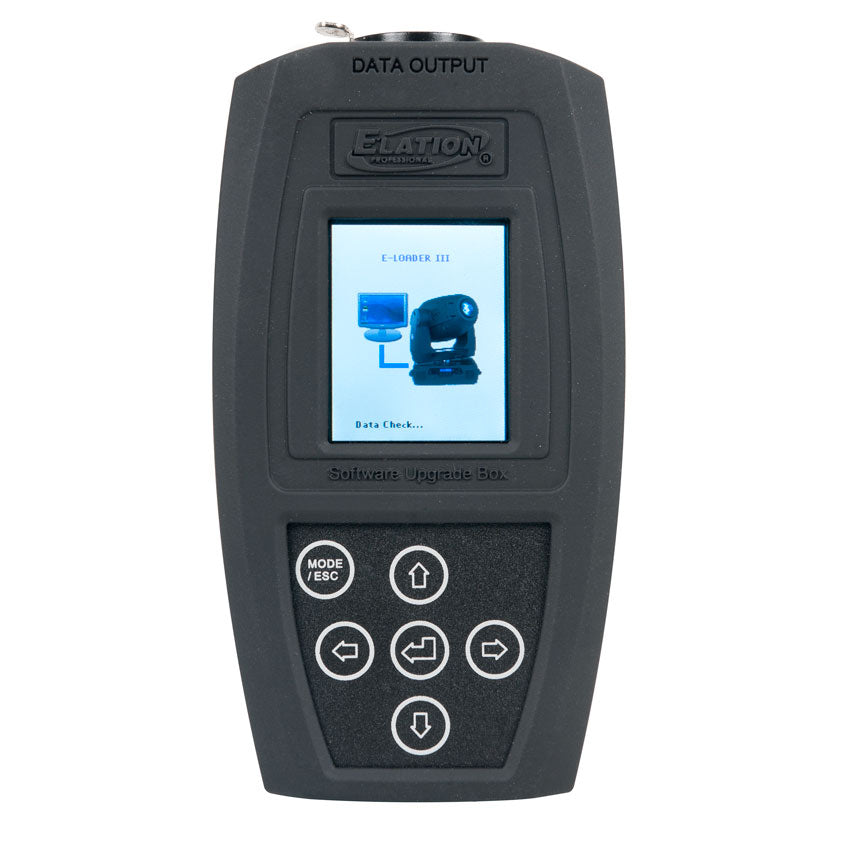

The E-LOADER III™ is a battery powered hand held software uploader device used to update Elation compatible lighting fixtures. Easily upload a software update to an Elation lighting fixture by connecting the E-LOADER III to the fixture using a 3pin DMX cable (not included). Elation software updates (not included) are stored on a MICRO SD card (included) and inserted into the uploader.
Features
Contact Elation Service for available fixture software updates.
Click Here To Email Elation Service
Click Here To Email Elation Service
Resources
Specification information
Drawings
CAD File
Related Categories
Specifications
Contact Elation Service for available fixture software updates.
Click Here To Email Elation Service
CONTROL / CONNECTIONS
6 Button Touch Control Panel
LCD Menu Display

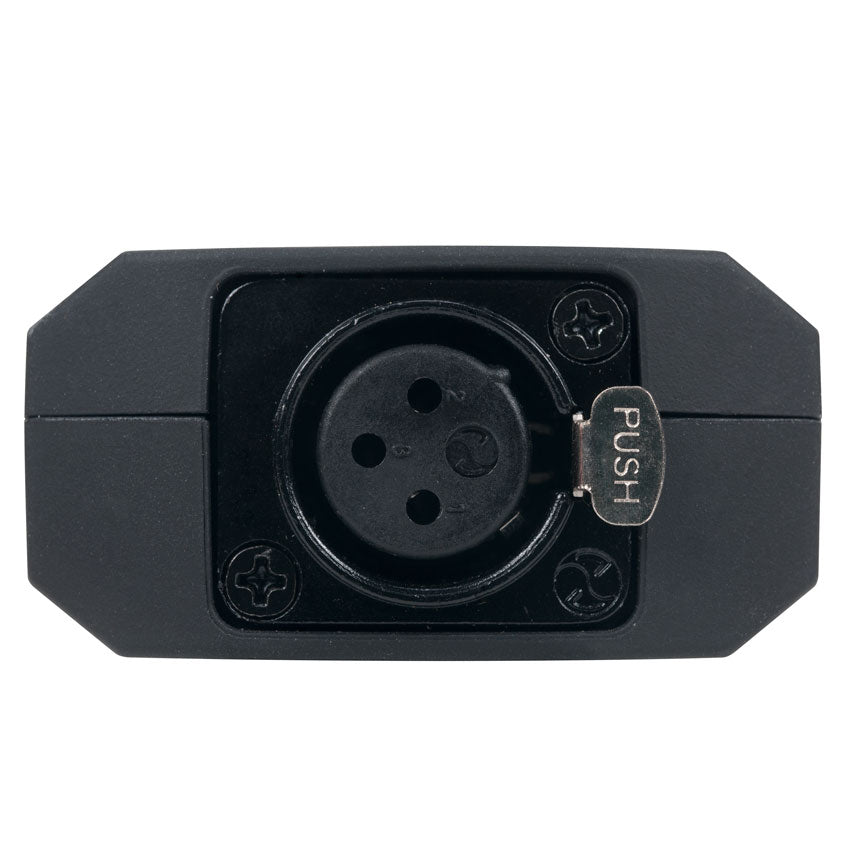

3pin DMX Out

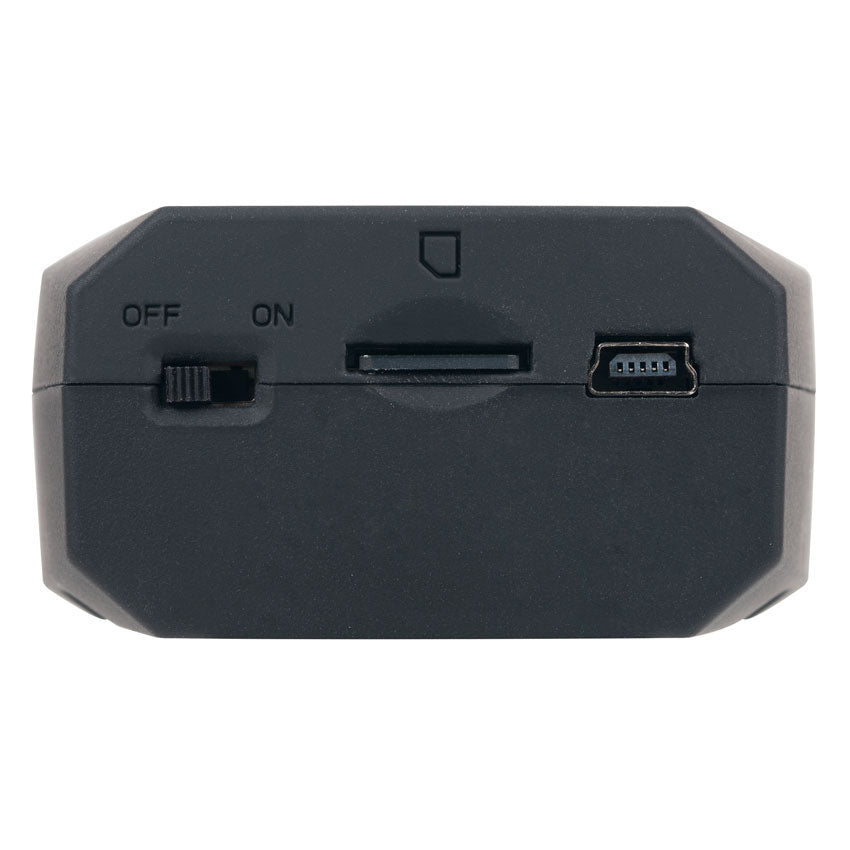

MICRO SD Card Slot
Mini USB Input
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 5.0” (126.7mm)
Width: 2.6” (66.9mm)
Vertical Height: 1.2” (30mm)
Weight: 0.3 lbs. (0.13 kg)
ELECTRICAL
5VDC (Internal Battery)

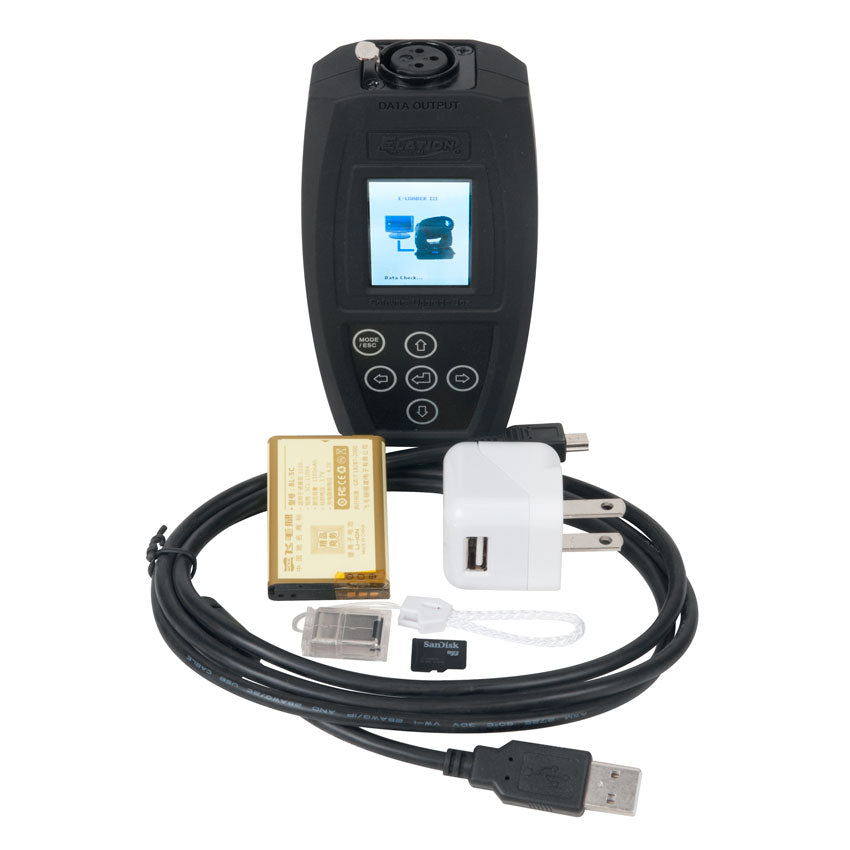

INCLUDED ITEMS
3pin DMX Cable
USB Cable
USB AC Adapter
MICRO SD Card
USB to MICRO SD Card Adapter
COMPATIBLE ELATION MODELS:
PLATINUM SEVEN
SATURA SPOT LED PROFILE
E SPOT III
PLATINUM HFX
PLATINUM FLX
PLATINUM SPOT III
PLATINUM BX
PLATINUM SBX
PLATINUM PROFILE 180
PLATINUM WASH 16R PRO
RAYZOR Q12 ZOOM
WW PROFILE
COLOUR 5 PROFILE
DW FRESNEL
DW PROFILE
SATURA SPOT CMY
RAYZOR BEAM 2R
DESIGN WASH LED ZOOM CW
DESIGN WASH LED ZOOM
VOLT Q5 / Q5e
VOLT Q3
LEVEL Q7 IP
LEVEL Q7
SATURA SPOT LED PRO
RAYZOR Q7
RAYZOR Q12
PLATINUM SPOT LED PRO II
PLATINUM SPOT LED II
E SPOT LED II
PLATINUM BEAM 5R EXTREME
ELAR 162 TRI PAR
PLATINUM WASH ZFX PRO XL
PLATINUM WASH ZFX PRO
PLATINUM WASH LED ZOOM
PLATINUM SPOT LED PRO
PLATINUM SPOT LED
PLATINUM PROFILE 35
PLATINUM SPOT 35
PLATINUM SPOT 15R BASIC
PLATINUM BEAM 15R PRO
PLATINUM BEAM 5R PRO
PLATINUM BEAM 5R
PLATINUM SPOT 5R
PLATINUM SPOT 5R PRO
PLATINUM SPOT 15R PRO
ELAR TRI BRICK
ELAR DW BRICK
ELAR 216 PANEL DW
ELAR 216 PANEL RGBW
ELAR 108 PAR RGBW
Click Here To Email Elation Service
CONTROL / CONNECTIONS
6 Button Touch Control Panel
LCD Menu Display
3pin DMX Out
MICRO SD Card Slot
Mini USB Input
With Wired Digital Communication Network
SIZE / WEIGHT
Length: 5.0” (126.7mm)
Width: 2.6” (66.9mm)
Vertical Height: 1.2” (30mm)
Weight: 0.3 lbs. (0.13 kg)
ELECTRICAL
5VDC (Internal Battery)
INCLUDED ITEMS
3pin DMX Cable
USB Cable
USB AC Adapter
MICRO SD Card
USB to MICRO SD Card Adapter
COMPATIBLE ELATION MODELS:
PLATINUM SEVEN
SATURA SPOT LED PROFILE
E SPOT III
PLATINUM HFX
PLATINUM FLX
PLATINUM SPOT III
PLATINUM BX
PLATINUM SBX
PLATINUM PROFILE 180
PLATINUM WASH 16R PRO
RAYZOR Q12 ZOOM
WW PROFILE
COLOUR 5 PROFILE
DW FRESNEL
DW PROFILE
SATURA SPOT CMY
RAYZOR BEAM 2R
DESIGN WASH LED ZOOM CW
DESIGN WASH LED ZOOM
VOLT Q5 / Q5e
VOLT Q3
LEVEL Q7 IP
LEVEL Q7
SATURA SPOT LED PRO
RAYZOR Q7
RAYZOR Q12
PLATINUM SPOT LED PRO II
PLATINUM SPOT LED II
E SPOT LED II
PLATINUM BEAM 5R EXTREME
ELAR 162 TRI PAR
PLATINUM WASH ZFX PRO XL
PLATINUM WASH ZFX PRO
PLATINUM WASH LED ZOOM
PLATINUM SPOT LED PRO
PLATINUM SPOT LED
PLATINUM PROFILE 35
PLATINUM SPOT 35
PLATINUM SPOT 15R BASIC
PLATINUM BEAM 15R PRO
PLATINUM BEAM 5R PRO
PLATINUM BEAM 5R
PLATINUM SPOT 5R
PLATINUM SPOT 5R PRO
PLATINUM SPOT 15R PRO
ELAR TRI BRICK
ELAR DW BRICK
ELAR 216 PANEL DW
ELAR 216 PANEL RGBW
ELAR 108 PAR RGBW
Approvals / Ratings
CE Certified
