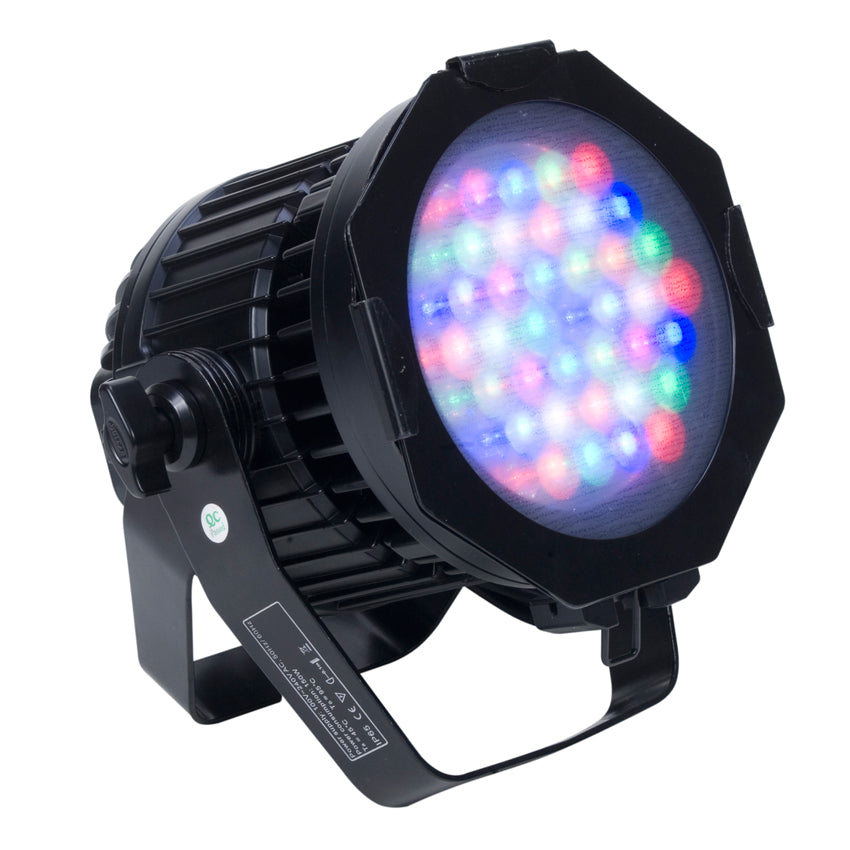

ELAR 108 PAR RGBW

Features

RGBW Outdoor IP65 Design Par
36 x 3Watt RGBW LED’s
IP65 Rugged Die Cast Aluminum Fixture
Available in Black, Silver and White Case finish
10° Beam Angle / 22° Field Angle / 15° Lens Kit Standard w/ LSF filters optional for wider beam angle and includes 40 deg frost filter
Smooth Color Mixing Flicker Free
Built In Color Macros, Auto & Manual Control

Resources

Photometric IES File

Specifications Sheet

CAD Drawing

User Manual

Photometric Data

Dimensional Drawing

Photometric Test Report

Specifications

3pin DMX
IP Power/Data Link
Power 120W MAX / 100-240v AC
4 DMX Modes – 4/5/7/9 Channels
4,480 LUX / 416 FC @ 10 ft (Full On)
1,672 Total Lumens

12.4”L x 10.6”W x 14.5”H
5.4lbs
CE | cETLus

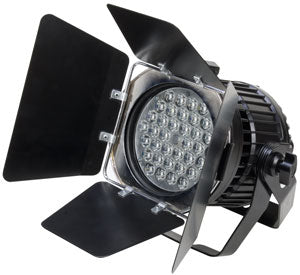

Optional Barn Door Sold Separately
