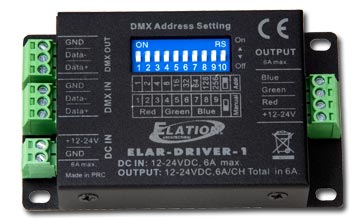

ELAR Driver 1

Features

ELAR-Driver-1 is a multi-functional LED driver designed to control R.G.B. LEDs


 - 3 channel, RGB LED driver allows for independent channel control

 - 6A total output capacity

 - DMX512 input & output

 - Dip switches for addressing and manual mode operation

 - Compact design

 - 2-pin terminal socket for DC power input

 - 3-pin terminal socket for DMX in

 - 3-pin terminal socket for DMX out

 - 4-pin terminal socket, load max, 6A (RGB Output)

 - Power Input: 12-24VDC 6,5A max.

 - Housing: Sheet metal black powder coat finish

 - IP-Rating: IP20

 - CE certified

 - Operation Temperature: 0 degC to +40 degC

 - Dimensions: 2.64” x 1.57” x .59” (LxWxH) (67 x 40 x 15mm)

 - Weight: 1lb. (150g)
