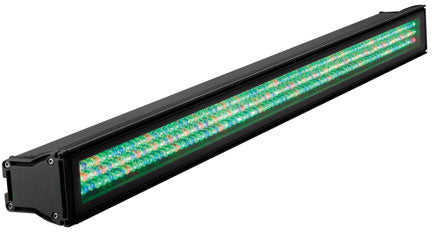

ELAR EXBAR BL

Features

Introducing Elation Architectural, Elation Professional’s new line of architectural LED lighting. Elation Architectural products consist of high quality, IP44 outdoor rated LED lighting fixtures designed to the same high standards of quality and reliability that have made Elation Professional a world brand.

Resources

User Manual

Specifications

 SPECIFICATONS

• High output LED RGB 1-meter outdoor bar

• 240 x 10mm LEDs (48 Red, 102 Green, 90 Blue)

• RGB Color Mixing (infinite colors)

• Power / Data linkable

• Internal power supply

• IP44 outdoor rated

• DMX-512 or stand alone

• 7 DMX Channel modes

• 0-100% Electronic Dimming

• Strobing slow to fast

• Beam angle: 40 degree

• Die-cast aluminum housing

• UV protected front Plexiglas

• Power Consumption: 30W

• Includes two moveable mounting brackets

• Voltage: 120V/60Hz

• Dimensions (LxWxH): 39.25” x 3.25” x 3” / 998x79x69 mm

• Weight: 10 lbs. / 4.5 kgs.

 OPTIONAL ACCESSORIES

• ELAR WR Wireless Infrared Remote
