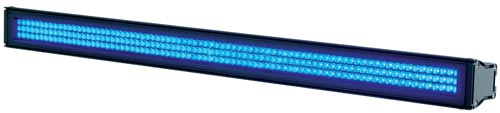

ELAR EXBAR UVBL

Features

Introducing Elation Architecural, Elation Professional’s new line of architectural LED lighting. Elation Architectural products consist of high quality, IP 65 outdoor rated LED lighting fixtures designed to the same high standards of quality and reliability that have made Elation Professional a world brand.

Resources

User Manual

Specifications

 SPECIFICATIONS

• High output LED ultraviolet 1-meter outdoor bar

• 240 x 10mm LEDs

• Power / Data linkable

• Internal power supply

• IP 44 outdoor rated

• DMX-512 or stand alone

• 2 DMX Channels

• 0-100% Electronic Dimming

• Strobing slow to fast

• Beam angle: 40 degree

• Die-cast aluminum housing

• UV protected front Plexiglas

• Power Consumption: 30W

• Includes two moveable mounting brackets

• Voltage: 120V/60Hz

• Dimensions (LxWxH): 39.25” x 3.25” x 3” / 998x79x69 mm

• Weight: 10 lbs. / 4.5 kgs.

 OPTIONAL ACCESSORIES

• ELAR WR Wireless Infrared Remote
