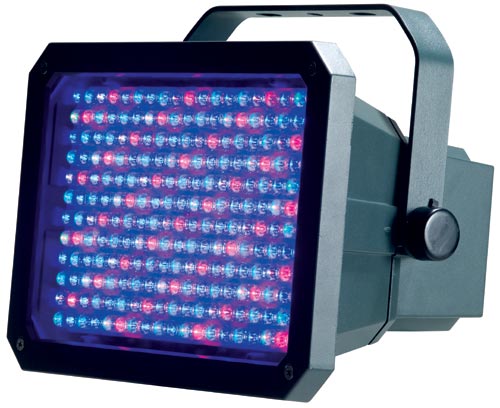

ELAR EXFLOOD

Features

Introducing Elation Architectural, Elation Professional’s new line of architectural LED lighting. Elation Architectural products consist of high quality, IP 65 outdoor rated LED lighting fixtures designed to the same high standards of quality and reliability that have made Elation Professional a world brand.

Resources

User Manual

Specifications

SPECIFICATIONS:

• High output LED RGB outdoor flood

• 216 x 10mm LEDs

• RGB Color Mixing (infinite colors)

• Power / Data linkable

• Internal power supply

• IP 65 outdoor rated

• DMX-512 or stand alone

• 3 or 5 DMX Channel modes

• 0-100% Electronic Dimming

• Strobing slow to fast

• Beam angle: 40 degree

• Power Consumption: 24W

• Voltage: 120V/60Hz

• Dimensions (LxWxH): 7” x 12” x 9.5” / 578 x 197 x 540 mm

• Weight: 10 lbs. / 4.5 kgs.


OPTIONAL ACCESSORIES:

• ELAR WR Wireless Infrared Remote
