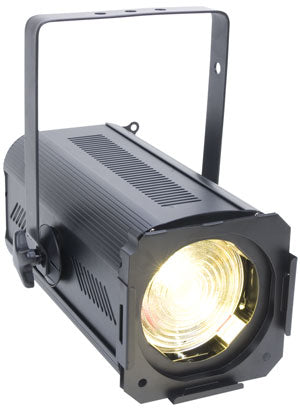

ELED FRESNEL 100WW

Features

The ELED Fresnel Series brings all the advantages of Light Emitting Diodes into Stage Lighting. Featuring a 100W LED light source (500W halogen equivalent) and amazing zoom range it offers reliable, easy and cost saving lighting in Clubs, Theaters, Schools and Churches as well as at exhibitions, trade fairs and at commercial applications. Imagine a “unbreakable” light source and ultra low heat development (compared to conventional halogen lights), full DMX control, and improved zoom capabilities. There is no need for running thick power multicores, installing expensive dimmer racks and high-power current supply anymore while at the same time expiring the whole advantage of LED based lighting.

 Features
 . 100W LED Cool White Theatre Fresnel
 . Amazing 10° to 50° Zoom Range
 . Internal DMX Control for Dimmer/Strobe
 . Case Color: Black
 . Replaces 500W Conventional Lights

Resources

User Manual

Specifications Sheet

Photometric Data

Specifications

Colors
 . 100W LED Warm White Light Source

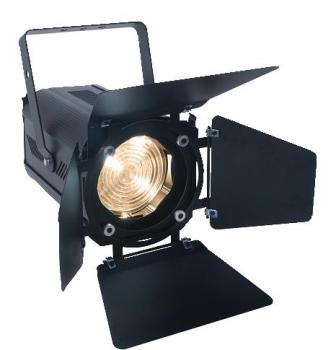

 . Barn doors included
 . Filter frame included

 Sutter/Dimmer
 . Strobe: Strobe effect (1-18 flashes per second)
 . Dimmer: 0- 100% Smooth Dimming via DMX

 Light Source
 . Lux: 979 Lux / 91 FC at 10’ / 3M at full
 . Lamp: 1 x 100 Watt LED
 . Lamp Life: 100W, 3,800K, 50,000 hrs. life

 Optical System
 . 10° to 50° manual zoom

 Control
 . DMX Channels: 1 or 2 channels, 2 DMX control modes
 . LED Menu Display
 . USITT DMX-512
 . Internal DMX control for dimmer/strobe
 . Silent Fan Cooling
 . On Board Control
 . Stand Alone
 . Flicker Free

 Operation Parameters
 . IP Rating: IP 20
 . Rigging: Single Yoke Bracket / safety and data cable optional

 Power Supply
 . Power Supply: Electronic, multi-voltage 120v-240V 50/60hz
 . Power Consumption: 120W

 Connectors
 . 3 pin and 5 pin XLR data input & output
 . Cable / Plug Type: IEC 120v US

 Dimensions and Weight
 . Dimensions: (LxWxH) 14.5” x 9.84” x 14.5” / 368.3 x 250 x 368.3mm
 . Weight: 11.6 lbs / 5.3 kg

 Approvals
 . CE Approved - ETL Pending
