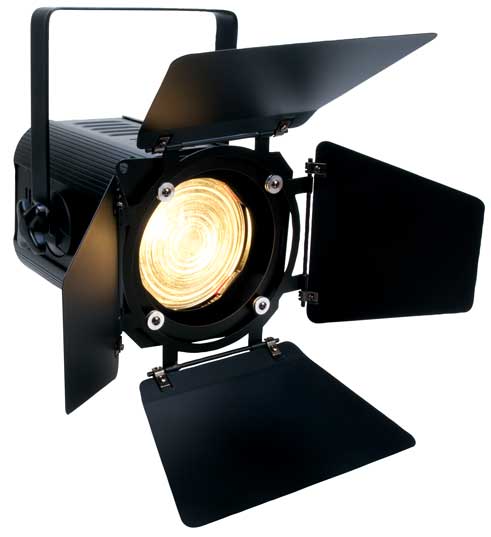

ELED Fresnel II

Features

 The ELED Fresnel Series brings all the advantages of Light Emitting Diodes into Stage Lighting. Featuring a 100W LED light source (500W halogen equivalent) and amazing zoom range it offers reliable, easy and cost saving lighting in Clubs, Theaters, Schools and Churches as well as at exhibitions, trade fairs and at commercial applications. Imagine a “unbreakable” light source and ultra low heat development (compared to conventional halogen lights), full DMX control, and improved zoom capabilities. There is no need for running thick power multicores, installing expensive dimmer racks and high-power current supply anymore while at the same time expiring the whole advantage of LED based lighting.

Features
 . 100W LED Warm White Theatre Fresnel
 . Amazing 10° to 50° Zoom Range
 . Internal DMX Control For Dimmer/Strobe
 . Case Color: Black
 . Replaces 500W Conventional Lights

Resources

User Manual

Specifications

Colors
 . 100W LED Warm White Light Source
 . Barn doors included
 . Filter frame included
 Shutter/Dimmer
 . Strobe: Strobe effect (1-18 flashes per second)
 . Dimmer: 0- 100% Smooth Dimming via DMX
 . Flicker Free
 Light Source
 . Lux: 979 Lux / 91 FC at 10’ / 3M at full
 . Lamp: 1 x 100 Watt LED
 . Lamp Life: 100W, 3,800K, 50,000 hrs. life
 Optical System
 . 10° to 50° manual zoom
 Control
 . DMX Channels: 3 DMX Modes: 1 Channel mode, 2 Channel Mode - Mode 1 & Mode 2
 . LED Menu Display
 . USITT DMX-512
 . Internal DMX control for dimmer/strobe
 . Silent Fan Cooling
 . On Board Control
 . Stand Alone
 Operation Parameters
 . IP Rating: IP 20
 . Rigging: Single Yoke Bracket / safety and data cable optional
 Power Supply
 . Power Supply: Electronic, multi-voltage 120v-240V 50/60hz
 . Power Consumption: 170W max
 Connectors
 . 5 pin XLR data input & output
 . Cable / Plug Type: IEC 120v US
 Dimensions and Weight
 . Dimensions: (LxWxH) 14.5” x 9.84” x 14.5” / 368.3 x 250 x 368.3mm
 . Weight: 11.6 lbs / 5.3 kg
 Approvals
 . CE Approved - cETLus Pending
