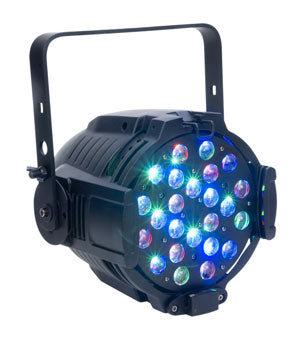

ELED Par RGB Zoom

Features

The ELED Par RGB Zoom by Elation Professional is a high power economy LED par can featuring 10° to 60° motorized zoom. The ELED Par RGB Zoom’s optical system features 24 3 watt LEDs, 8 red, 8 green, 8 blue - 24 total watts. This fixture has nine operating modes: static mode, RGB mode, three color change mode, seven color change mode, three color fade mode, seven color fade mode, auto mode, sound active mode, and DMX control mode. In DMX control mode the ELED Par RGB Zoom can be operated in four DMX channel modes: 3, 5, 6 or 7 channel mode. Control data input is via 3 pin DMX data first in and out connections. This unit can operate from 90~240V AC via the internal auto sensing electronic power supply. This unit also features flicker free operation and RGB color mixing. The ELED Par RGB Zoom is designed for indoor use only and is fully operational in any safe working position.

 FEATURES

• High Power Economy LED Par w/ Zoom

• 24 x 3 watt RGB LED’S

• RGB color mixing

• Smooth Color Mixing Flicker Free

• 10° to 60° motorized zoom

• Rated IP 20

• Fan cooled

• Electronic ballast

• Built in Microphone

• LED Menu Display

• Nine Operating Modes

• Daisy Chain Units Together in DMX Mode

Resources

Specification information

Guides/ Manuals

PHOTOMETRIC DATA

Related Categories

Specifications

TECHNICAL SPECIFICATIONS

• DMX Channels: 4 DMX Channel Modes: 3/5/6/7 channel mode

• Control: DMX-512 protocol 3-pin XLR serial input/output

• Dimmer: Flicker free electronic dimming 0-100%

• Power Supply: Multi-voltage: 90V~240V, 50/60Hz

• Power Consumption: Maximum 80W

• Fuse: 2 Amp

• Strobe: 1-25 flashes per second

• Lamp: 24 x 3 Watt LED’s (8 Red, 8 Green, and 8 Blue)

• Lamp life: Long Life L.E.D. (rated at 50,000 Hours)

• Dimensions: (LxWxH): 15” x 10.15” x 8.15” / 370 x 270 x 220mm

• Weight: 12 lbs. / 5.5 kgs.

• Rigging: Single yoke
