eMAG4
eMAG4

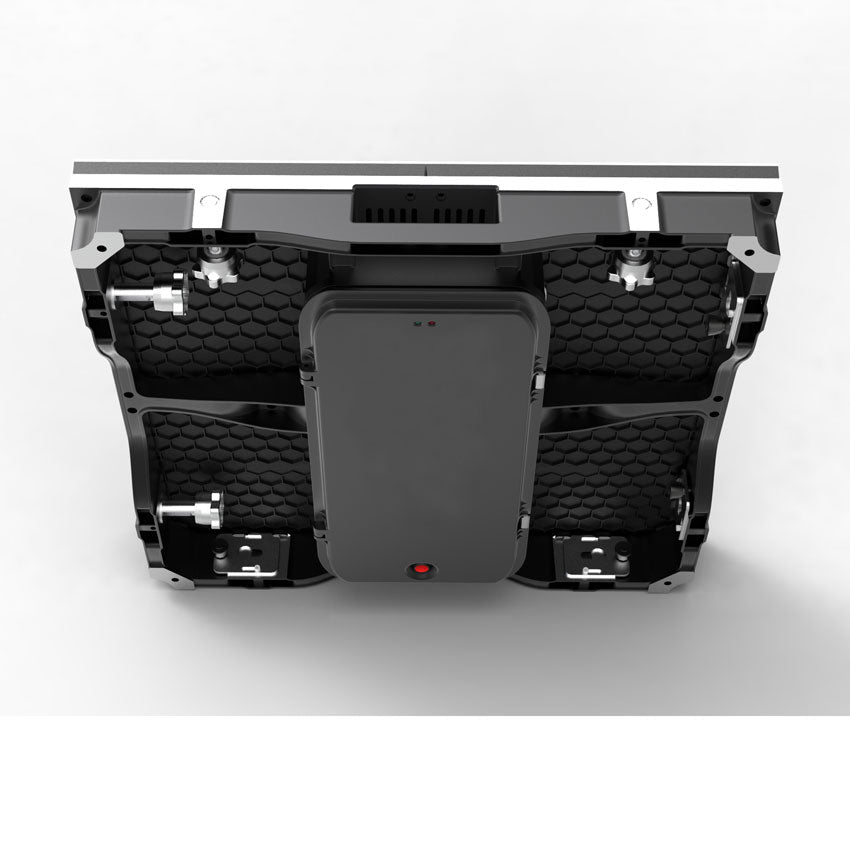

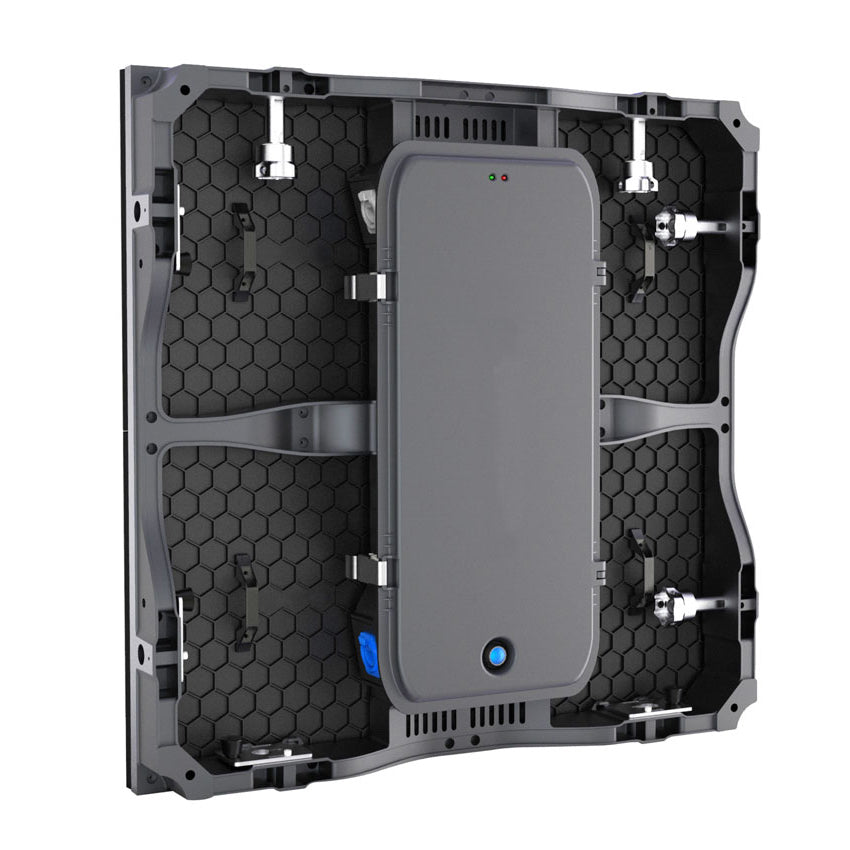

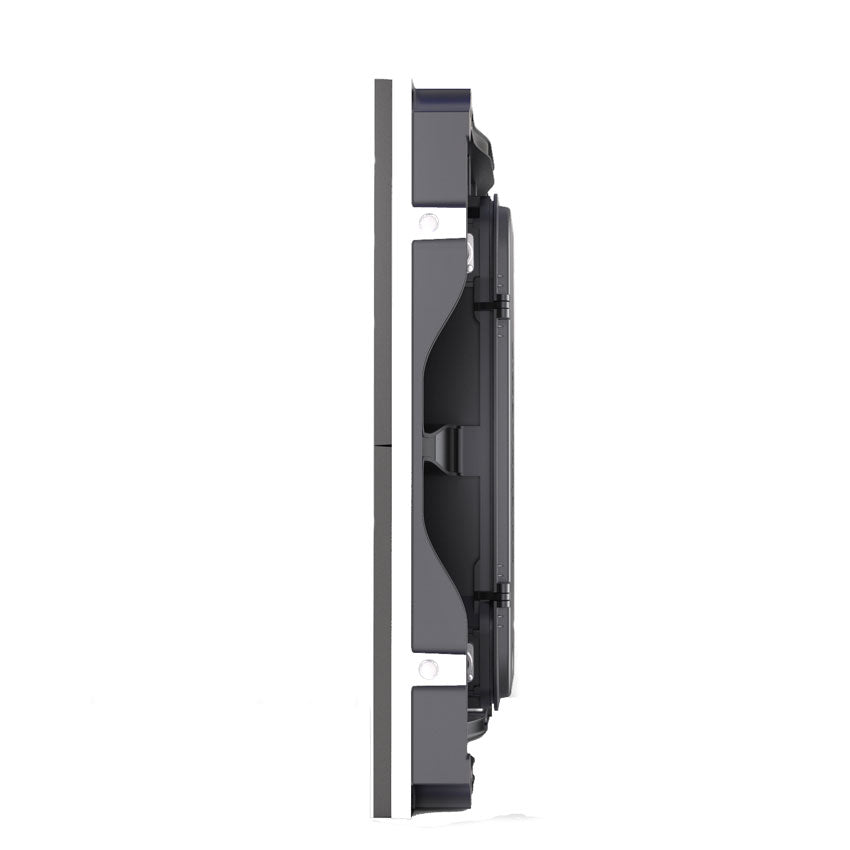

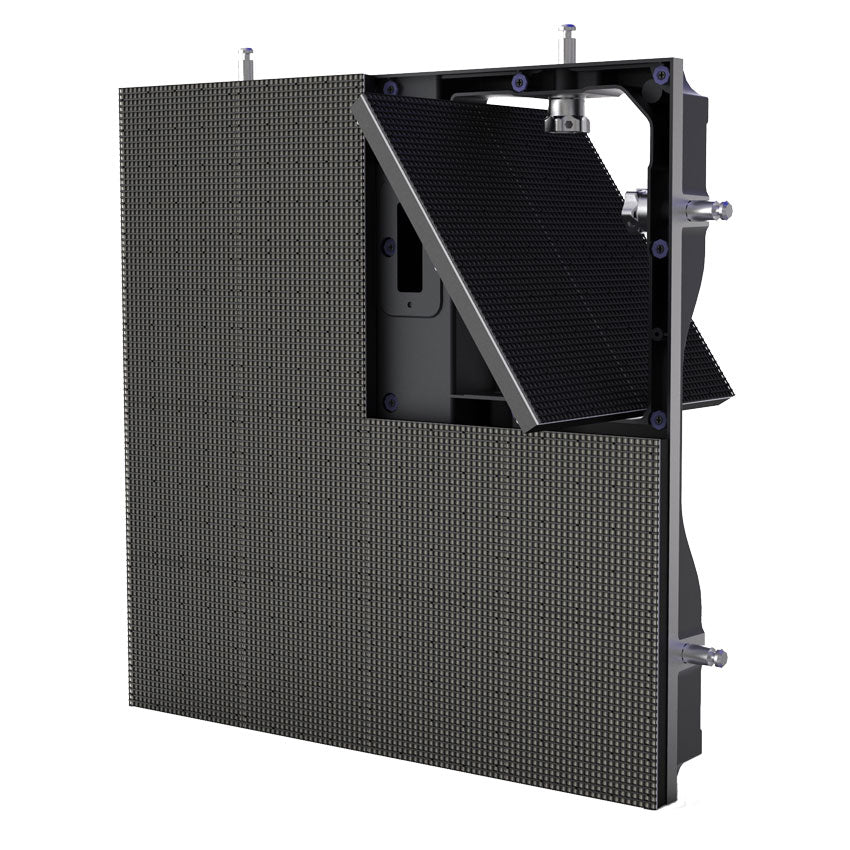

Elation Professional introduces it’s new rental friendly magnetic module design 4.8mm pixel pitch LED display… the eMAG4™ LED Screen. It’s light weight die cast aluminum magnetic modular, tool-less and fan-less design makes it easy to install and replace LED modules as needed without removing the panel from your rig. The eMAG4™ features 104(H) x 104(V) pixel resolution, 140°/140° viewing angle, 1,200 Nits, 16bit grey level, and a self test function providing easy tech support for rental shops.
Specifications
Panel
Resolution / Pixel Pitch: 104(H) × 104(V) / 4.8mm (0.19”)
Pixel Density: 43,264 pixels/m²
Size: 19.7” x 19.7” x 3.5” (500 × 500 × 90mm)
Module Quantity: 4
Weight: 16.5lbs. (7.5Kg)
Optical Ratings
Brightness: 1,200 Nits
View Angle / Distance: 140°/140°
Gray Scale / Display Color: 16bit
Brightness Adjustment: Manual/Auto/Programmable
Refresh Rate: 1920Hz
Drive Mode: 1/13 Scan
Power Supply
Operation Power: 100-240V 50-60Hz
Avg. Power Consumption: 150 w/m2
Max Power Consumption: 450 w/m2
Avg. Watts Per Panel: 100w
Max Watts Per Panel: 165w
Environmental
Operating Temp / Humidity: -20°~+40° C / 10~90% RH
Protection Level: IP40
OPTIONAL ACCESSORIES
SKU ITEM
CAT101 Vertical Data Jumper
CAT113 Horizontal Data Jumper
EPV722 Panel to Panel Power Jumper
EPT435 EPT VSC 1U Rack Space Video Processor
MED002 ZEUS Media Server
MED592 ArKaos Media Master Express
DMX600 DMX-USB Pro
eMAG4RB1 eMAG4 Single Panel Rigging Bar
Specifications and documentation subject to change without notice.
