EMOTION

Features

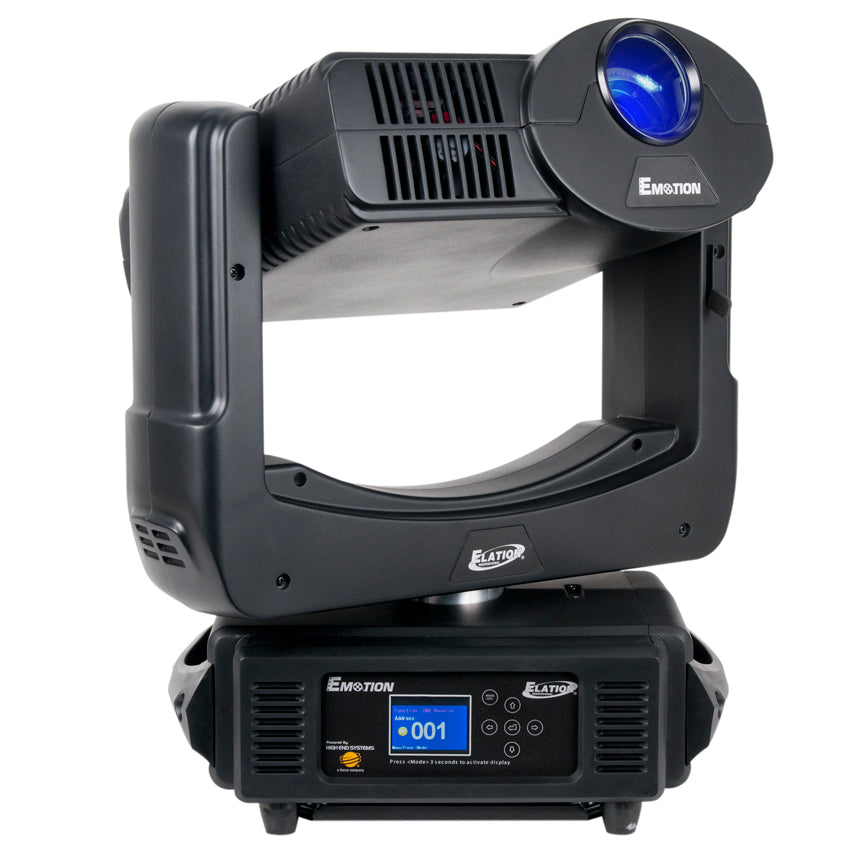

Compact High Output Digital Projector Moving Head
Internal 64GB Solid-State Hard Drive Media Server

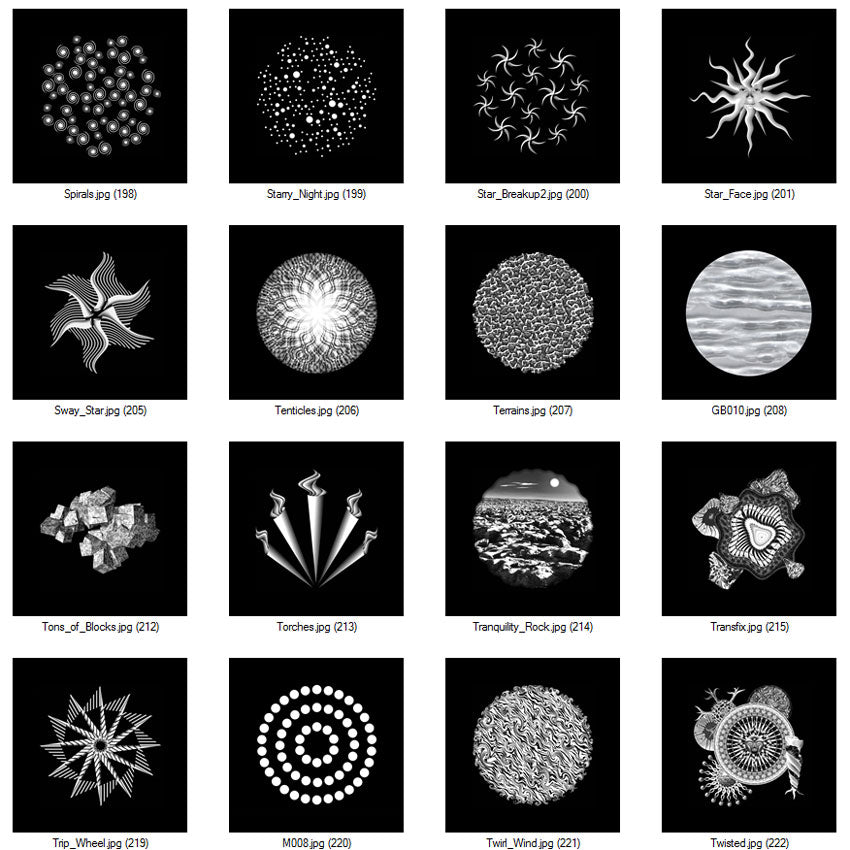

Elation Gobo Catalog Included (Royalty Free)

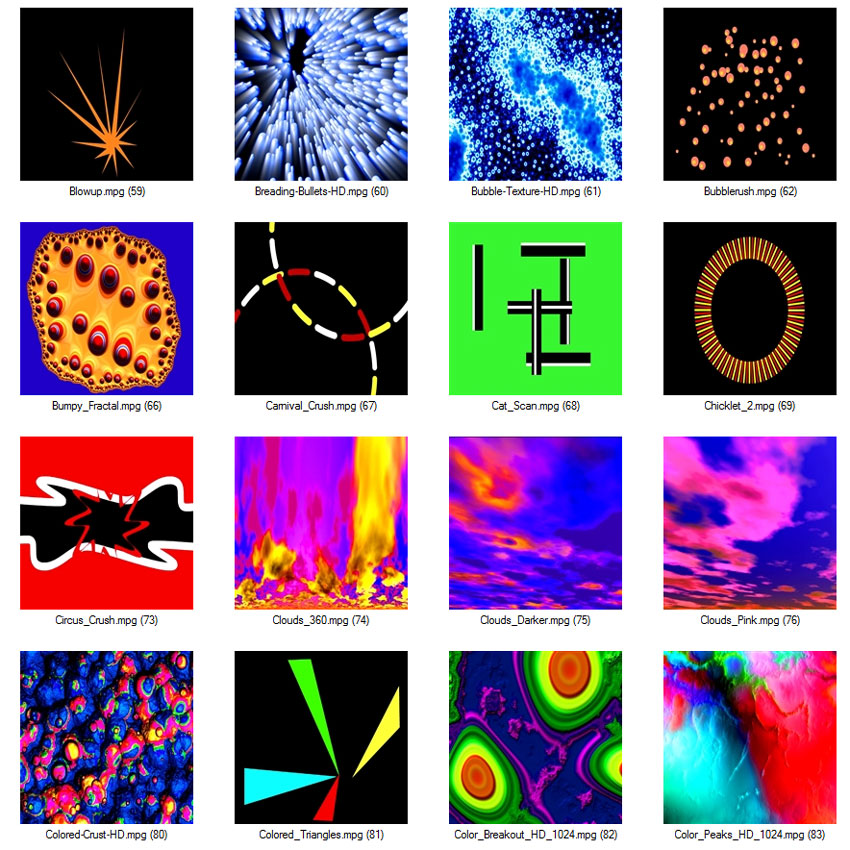

255 Video Images Included (Royalty Free)
40 Live / Background Effects and Color Control
Easy Custom Content Upload via PC Based CMA Application
DMX Control via 5pin DMX or Ar-NET
Digital and Optical Zoom / Motorized Focus
CMY + RGB Color Mixing / Mechanical Shutter / Dimmer
Collage Generator™
Variable Edge Blending

Resources

Specification information

Guides/ Manuals

DMX/ RDM Traits

CAD File

CAD File

Software Downloads

Related Categories

Specifications

Osram UHP 240W Lamp
4,000 ANSI Lumens, >80CRI 6,700K
Native 1024 x 768 (XGA) DLP / DMD
3,000 Hour Average Lamp Life* (6,000 Hours ECO Mode)
*Lamp Life may vary depending on several factors including but not limited to
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.


Aspect Ratio: 4:3 Native (16:9 Compatible)
Resolution: XGA 1074 x 768
Image Size 30” to 307”
Projection Distance: 3.9’ (1.2m) - 32.8’ (10m)
Contrast Ratio: 15,000 : 1
Display Technology: DLP DMD Chip
1 Billion Colors (10bit)

EFFECTS
Digital and Optical Zoom
Motorized Focus
CMY / RGB Color Mixing
Mechanical Shutter / Dimmer

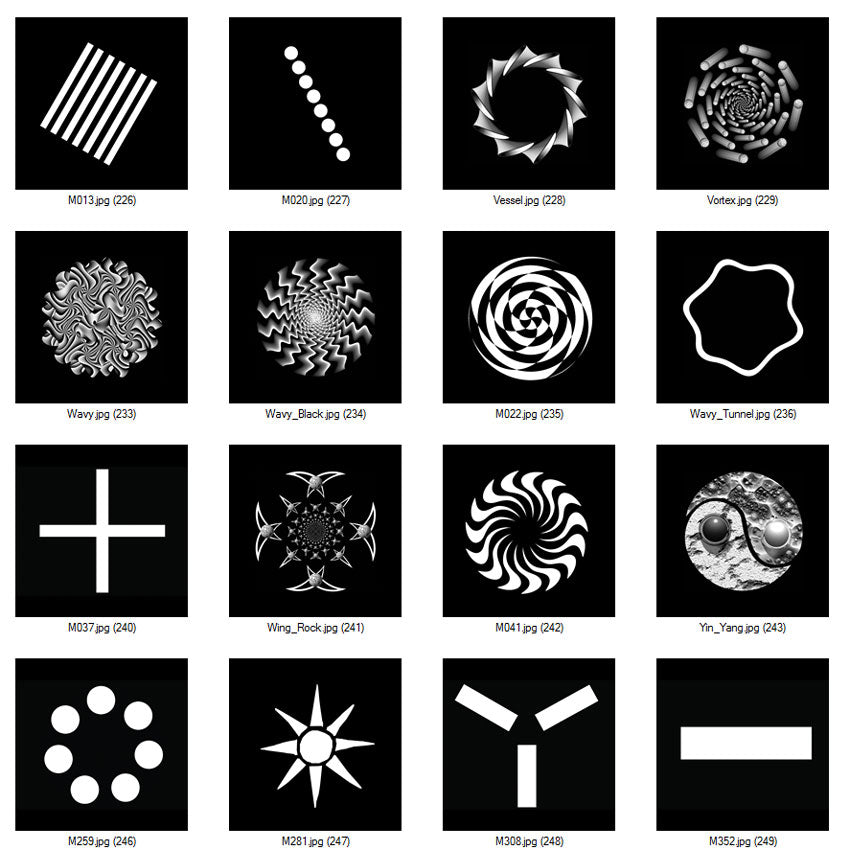

Elation Gobo Catalog (Royalty Free)

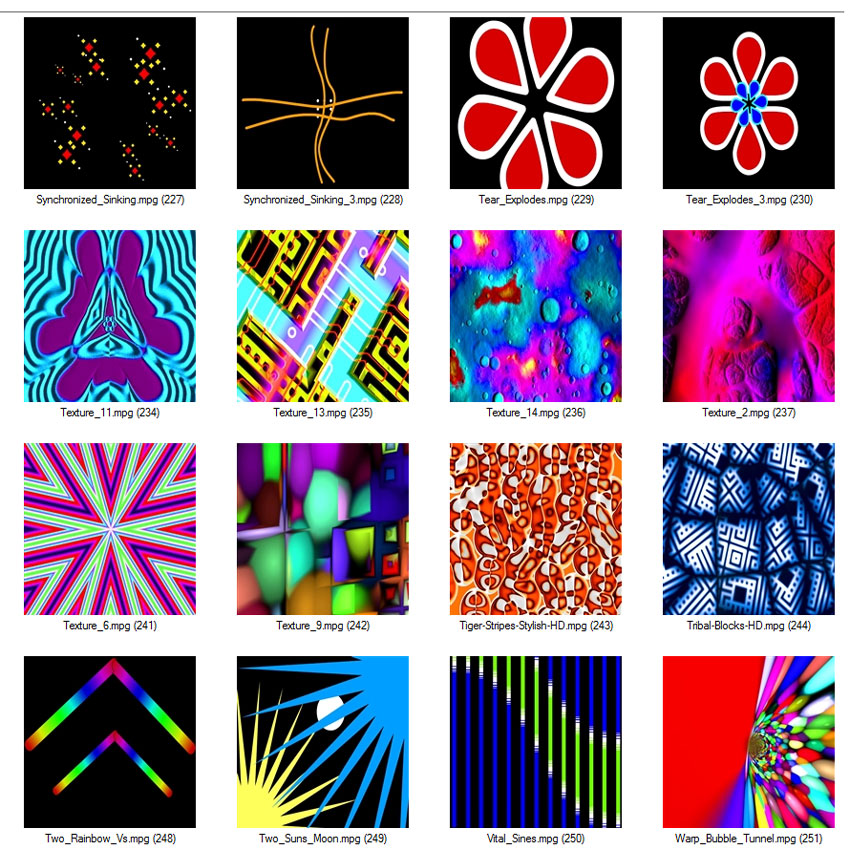

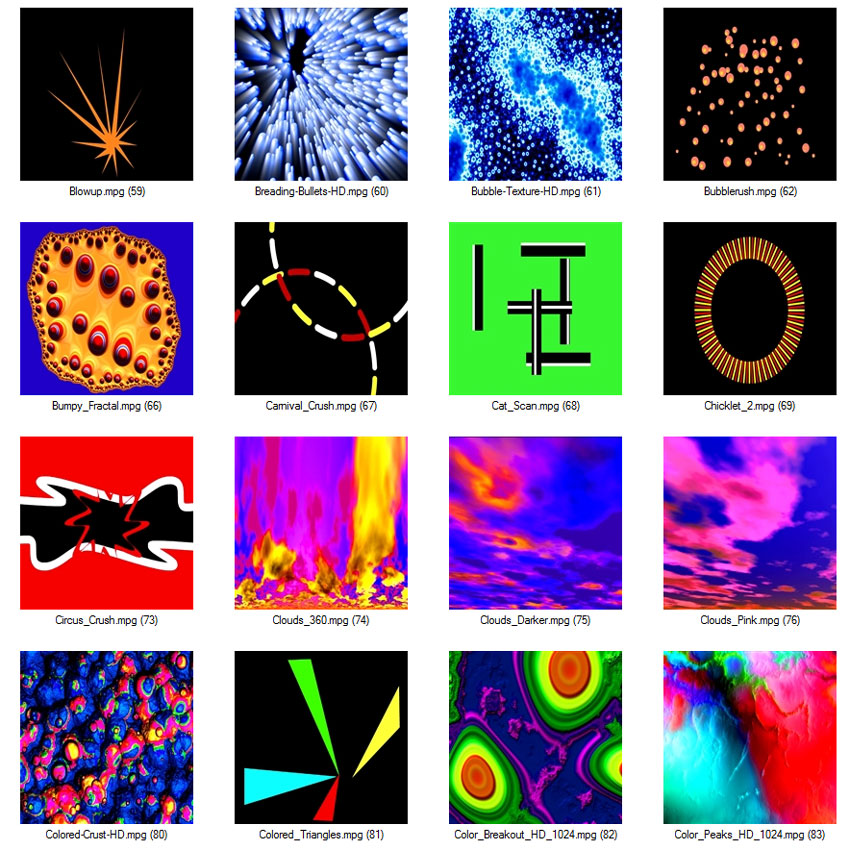

255 Video Images (Royalty Free)
40 Live / Background Effects and Color Control
28 Transition Effects Between Layers

COLLAGE GENERATOR™ Software (included)
This effect enables multiple Elation eMotion™ fixtures to create an array of seamless projections using from 2-16 fixtures. The effect can create vertical, horizontal and central panoramic configurations controlled from a DMX console. Stock, custom, and custom HD Collage Generator™ content can all be displayed in Collage Mode.

VARIABLE EDGE BLENDING
On-the-Fly adjustment of blend overlap between multiple projectors when used in conjunction with any of the Collage Generator™ Modes. Using this mode gives more flexibility for sizing a collage to a given screen or projection surface, as well as smoother blending if wider blend regions are used.

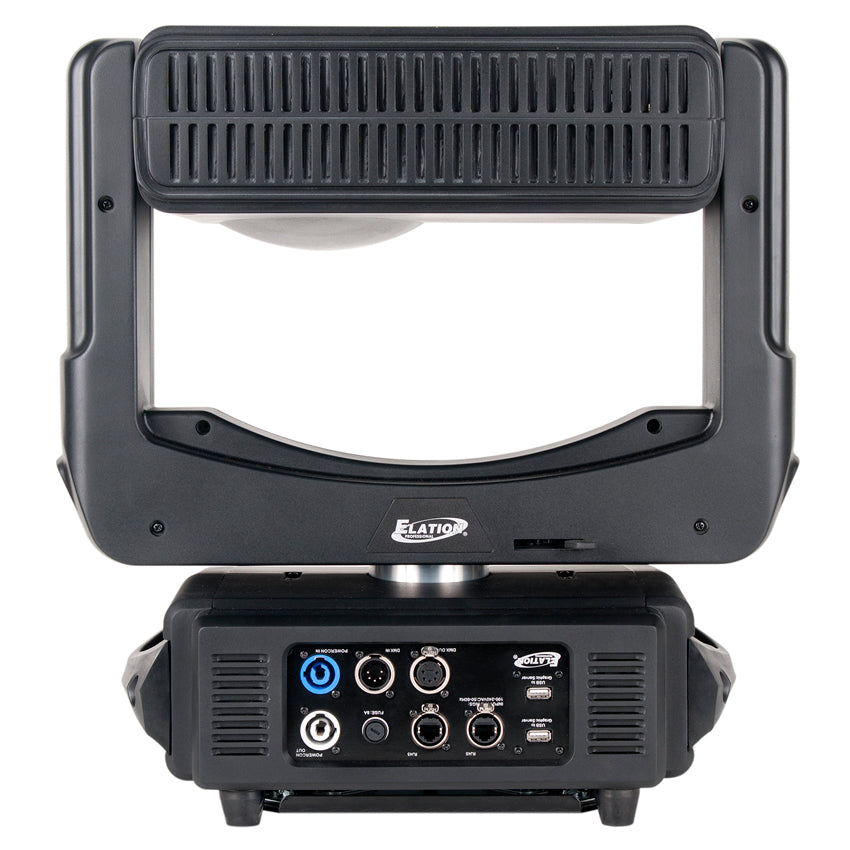

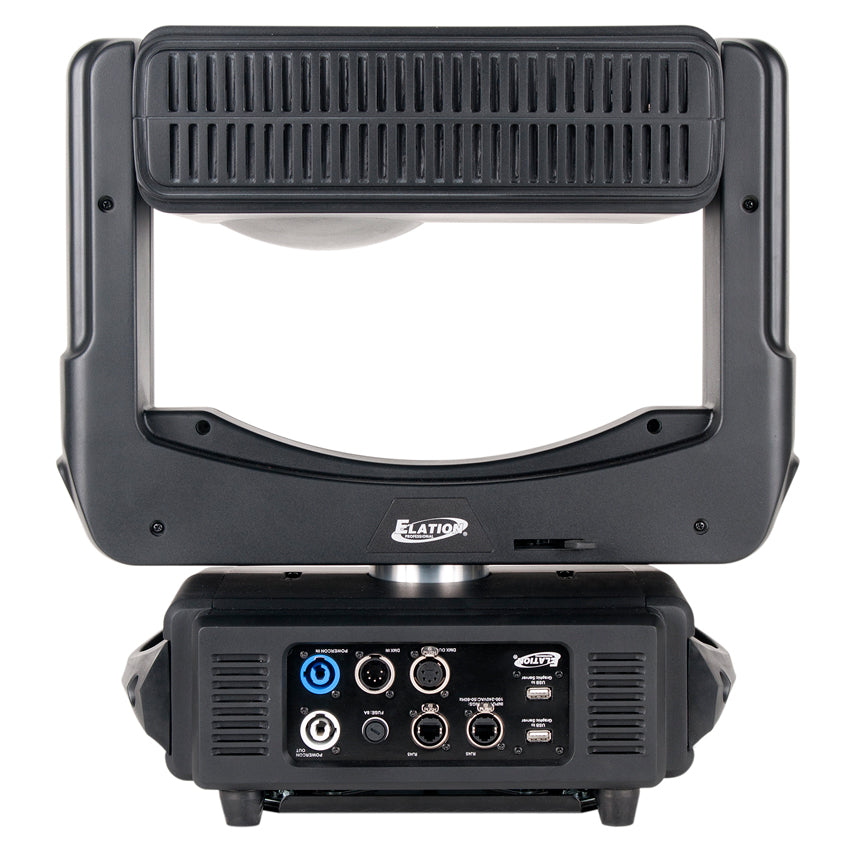

CONTROL / CONNECTIONS
(2) DMX Channel Modes (32 / 54)
Dual Layer Media Content Control
6 Button Touch Control Panel
Full Color 180° Reversible LCD Menu Display
(2) USB 3.0 Ports - Graphic Server Inputs
5pin DMX In/Out
(2) RJ45 Ports - Graphic Server / Art-NET Inputs
Power In/Out
With Wired Digital Communication Network

SIZE / WEIGHT
Length: 18.9” (480mm)
Width: 15.0” (382mm)
Vertical Height: 22.4” (569mm)
Weight: 44.0 lbs. (20 kg)

ELECTRICAL / THERMAL
AC 100-240V - 50/60Hz
350W Max Power Consumption
40° - 95°F (5° - 35°C)

APPROVALS / RATINGS
CE | cETLus | IP20


Specifications and documentation subject to change without notice.
