Emulation Touch

Features

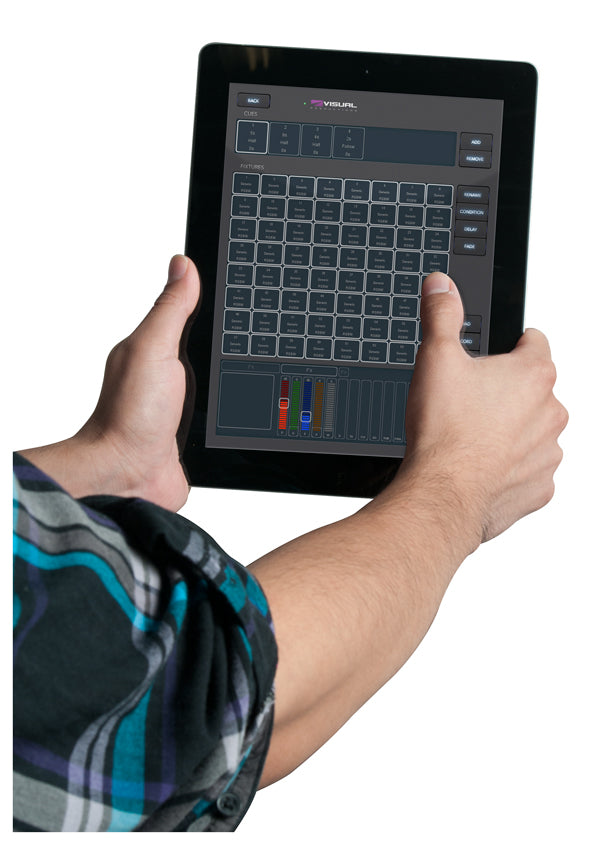

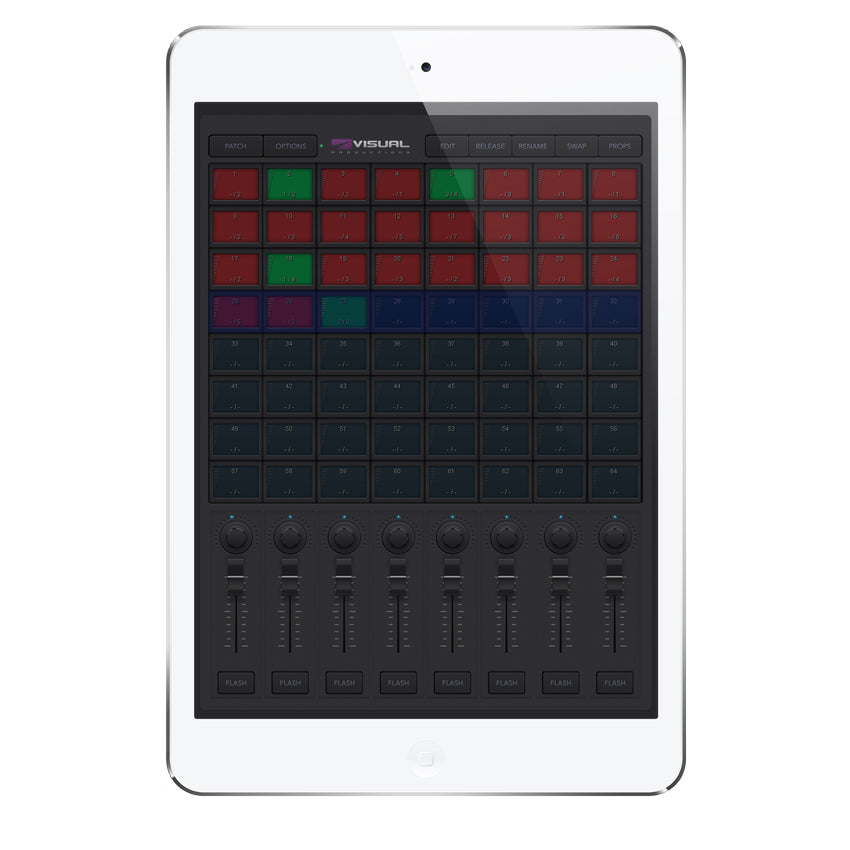

The Emulation Touch™ devices contain the powerful engine that runs your show, calculates fade times and renders dynamic FXs. The Cuety™ application is your user-interface that uses the mobility and multi-touch display of your iPad™.

 FEATURES
 64 Fixtures
 64 Playbacks
 48 Cues per playback
 FX Generator
 Designed for use with Cuety Software™ (Emulation Touch Programmer) Application
 Transforms iPad™ into Powerful Lighting Console
 Powerful Engine Controls Shows, Fade Times, and FXs
 Full DMX Support for LEDs and Conventional Lighting
 Art-Net, sACN and optically isolated DMX-512 Ports
 OSC, UDP, TCP, HTTP Support (Emulation Touch-2™)

 Cuety Remote (Emulation Touch Remote)

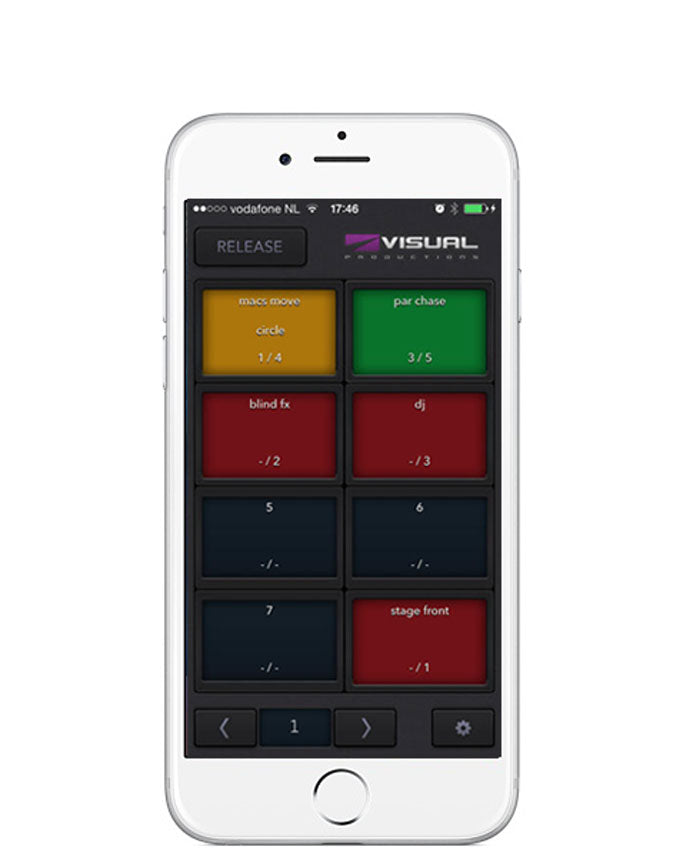

 Cuety Remote is an iPhone app that is also available from the App Store, it enables you to remote control Emulation Touch-1 & 2 by triggering the playback buttons. It does not allow you to edit the lighting cues.

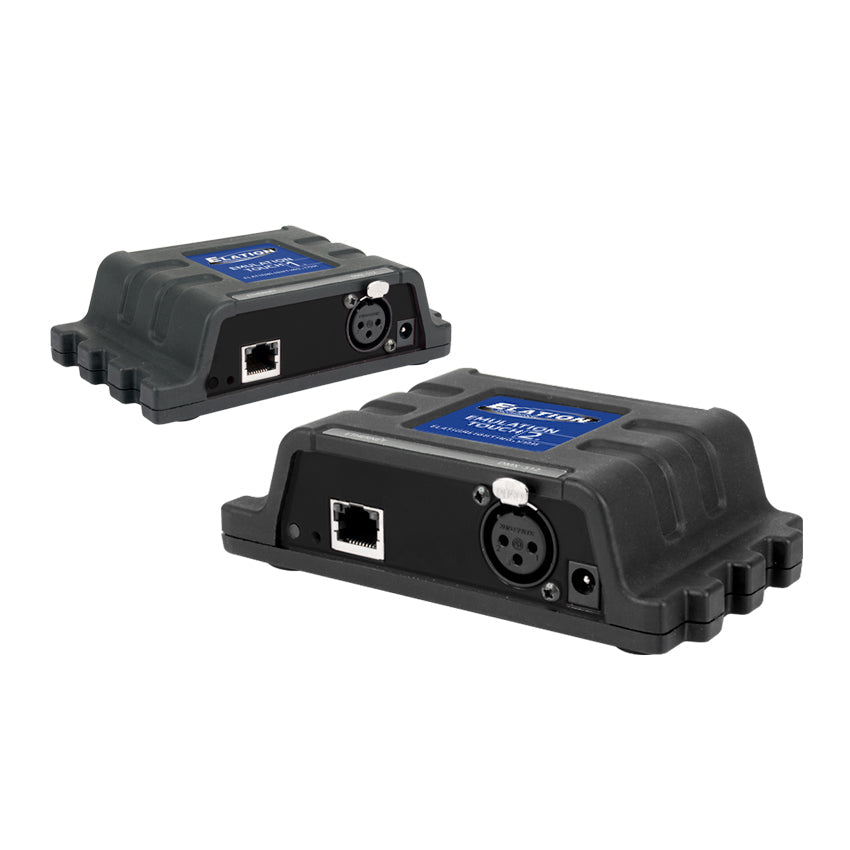

 Two versions of the Emulation Touch™ are available, both provide an RJ45 ethernet port and an optically isolated DMX-512 port.

 Emulation Touch-1™ vs Emulation Touch- 2™

 Emulation Touch-1™ is designed for entertainment lighting and is very affordable, and Emulation Touch-2™ is designed for fixed installations and offers extra protocols like OSC, UDP, TCP and HTTP. These protocols enable you to connect to a wide range of 3rd party control systems and show controllers, as well as apps like TouchOSC.

 iOS also available at App Store.

 Android available soon.

Resources

Specifications Sheet

Software

User Manual

Dimensional Drawing

Specifications

CONTROL / CONNECTIONS
 3pin DMX Output
 RJ45 Ethernet Port

 SIZE / WEIGHT
 Length: 5.39” (137mm)
 Width: 2.99” (76mm)
 Vertical Height: 1.61” (41mm)
 Weight: 0.45 lbs. (0.2 kg)

 ELECTRICAL / THERMAL
 9-12V DC 500mA
 12W Max Power Consumption
 14°F (-10°C) to 113°F (45°C)

 APPROVALS / RATINGS
 CE

 INCLUDED ACCESSORIES
 (1) Quick Start Guide
 (1) Exernal 100-240V 50/60Hz Power Supply
 (1) 6.5 ft. (2m) RH45 Ethernet Cable


 OPTIONAL ACCESSORIES:

 PRO CABLES (click for more info)


 Specifications and documentation subject to change without notice.
