EPAR TRI
EPAR TRI

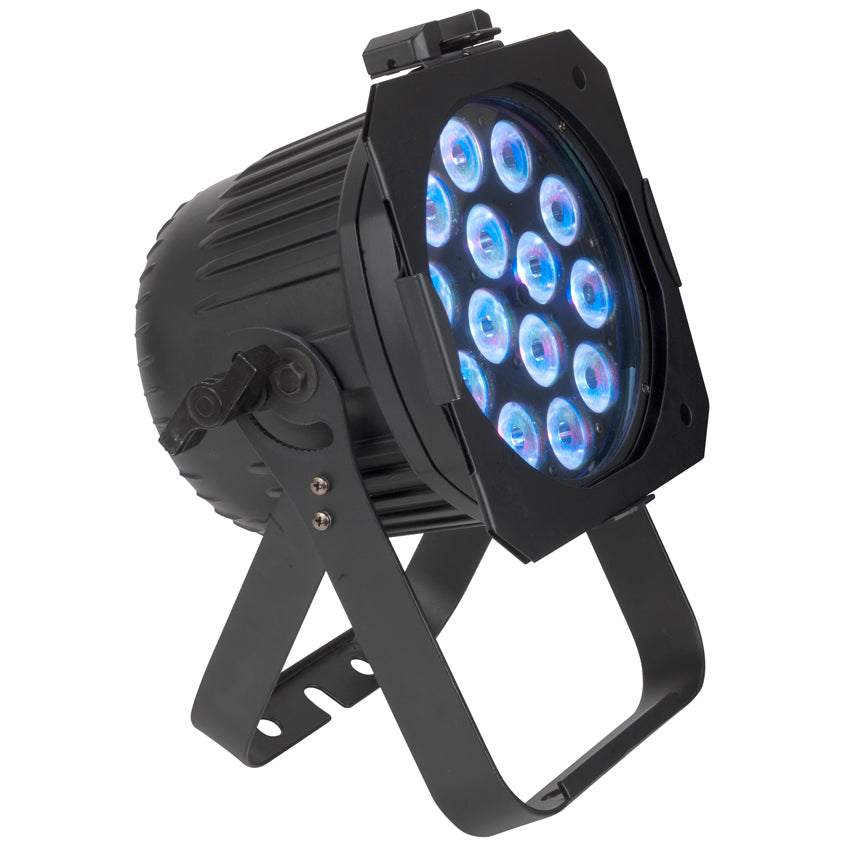

The EPAR TRI is an LED par with (14) 3W TRI RGB LEDs housed in a compact durable aluminum fixture. Features include a 10° beam angle, gel frame (included), multiple DMX channel modes, internal program macros and manual control mode, electronic dimming and strobe, 3pin DMX and powerCON in/out connections, flicker free operation for TV and FILM, an integrated floor stand dual yoke bracket, and a multi-voltage universal auto switching power supply. (100-240V)
Features
14 x 3W TRI RGB LEDs
Dual Yoke Floor Stand
Superior Color Mixing
Compact Housing
No Colored Shadows
Flicker Free Operation
Resources
Guides/ Manuals
- EPAR TRI Specification Sheet
- EPAR TRI 2D CAD
- EPAR TRI User Manual (Rev. 2/14)
- EPAR TRI User Manual
- EPAR TRI IES File
- EPAR TRI PHOTOMTRIC TEST Report
- EPAR TRI Install Guide
- EPAR TRI Vectorworks 2014 Symbol
- EPAR TRI Vectorworks 2015 Symbol
Related Categories
Specifications
No Multi-Colored Shadows
Long Life LEDs (rated at 50.000 Hours)
10° standard beam angle
Aluminum body
Flicker free operation for television and film
USITT DMX 512
1/2/3/4/6/7 DMX Channel operation mode
Auto Programs and Manual Control
Holds last state when power off
0-100% Dimming
Variable Strobe effect

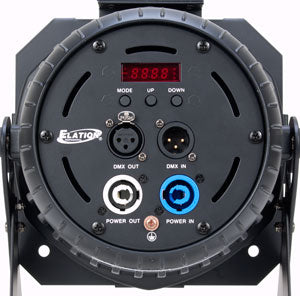

3 pin XLR in/out
Integrated Floor Stand / Dual Yoke bracket
Gel Frame included
Electronic Switching Power Supply
Power Consumption: 70W Max
100-240V AC, 50/60Hz (Multi-voltage)
Dimensions: 10"x8.5"x11" / 252x216x281mm
Weight: 9 lbs. / 4.1 Kg
ETL approved
Optional 5pin DMX Connectors PCB Conversation Available
Special Order SKU# 7656001-035
Additional Lead Time Required
Specifications and documentation subject to change without notice.
